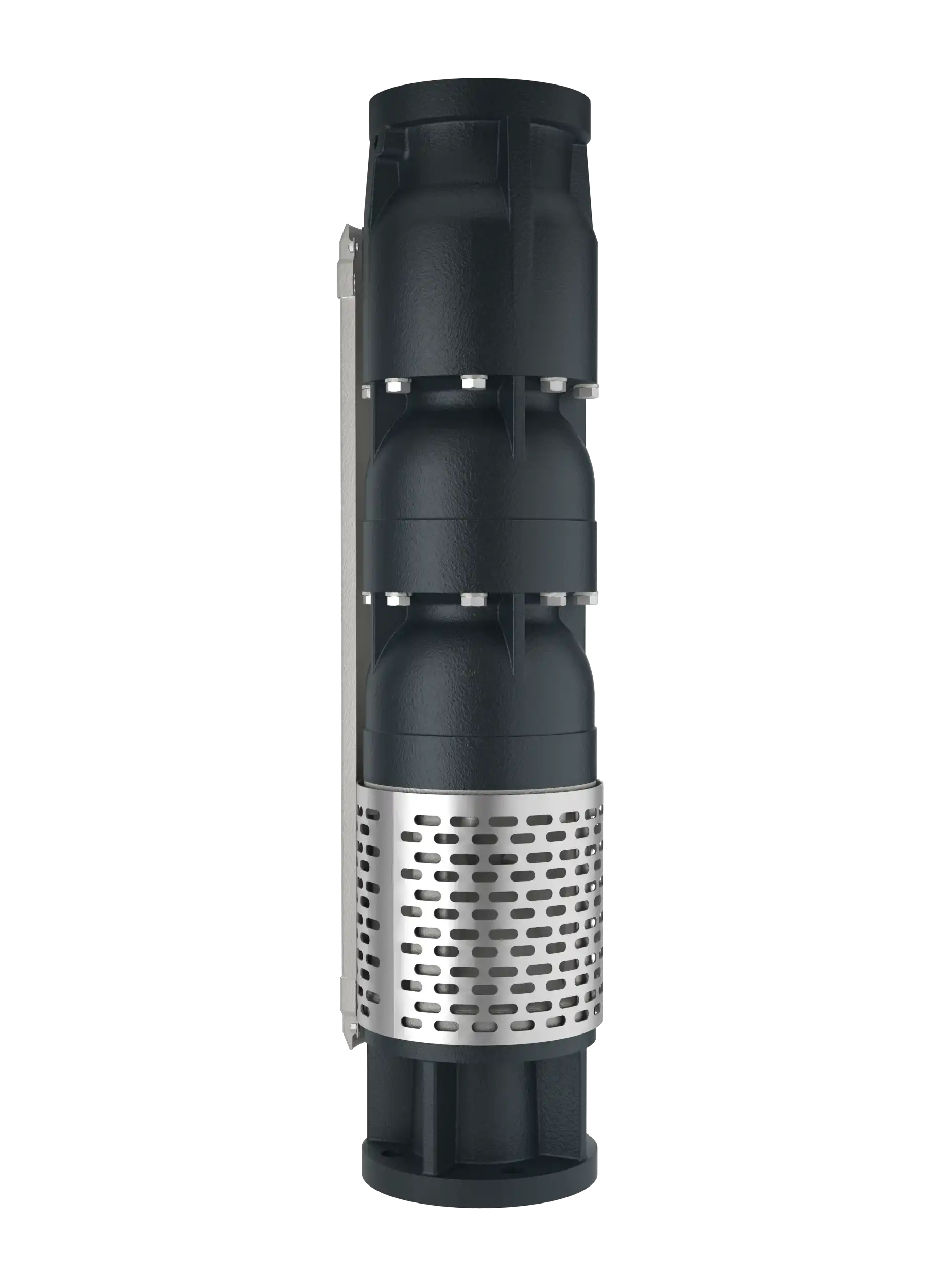

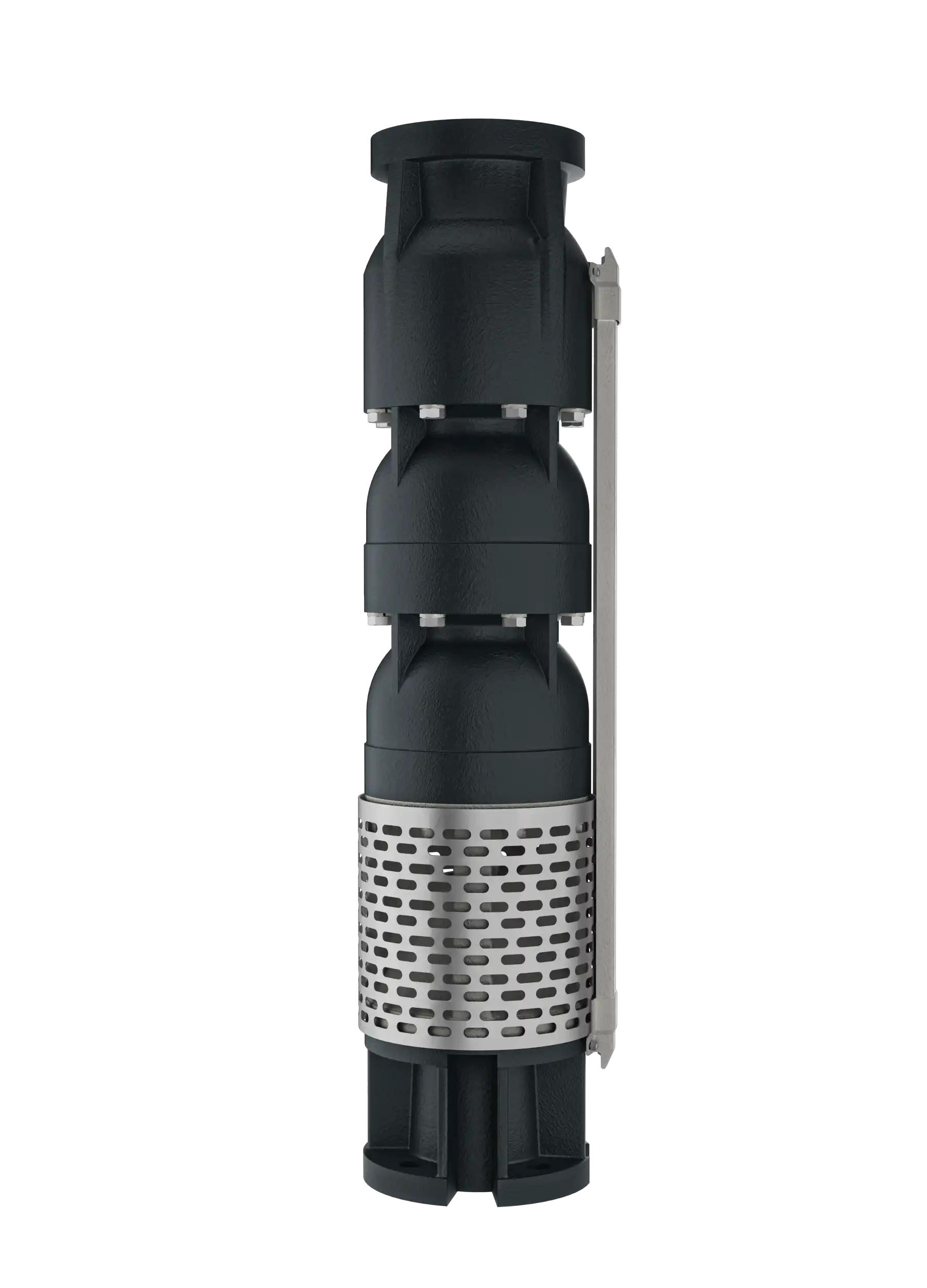

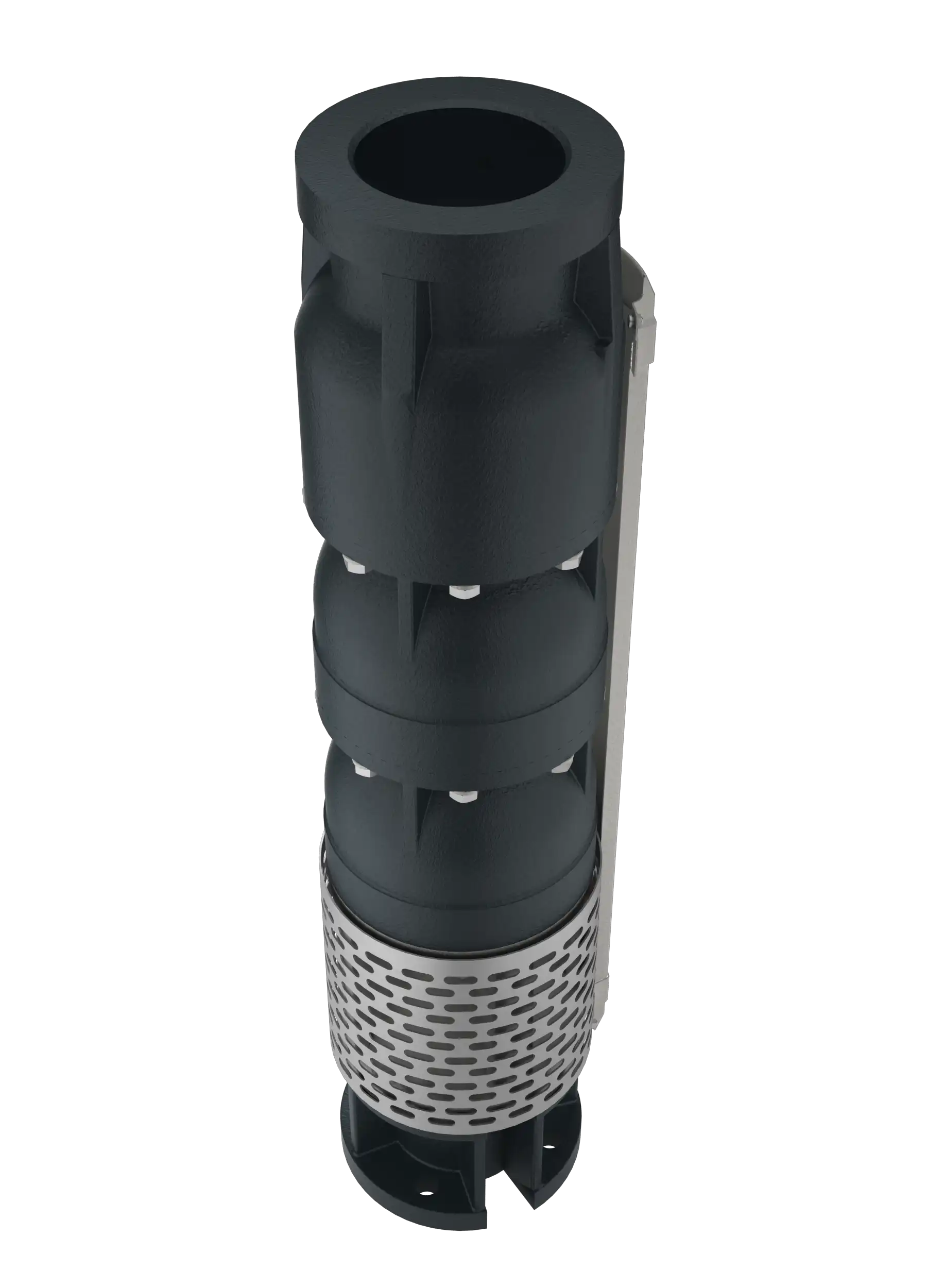

CAST IRON PUMPS

N9 Series
CAST IRON PUMPS

Name: N9 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N9-SERIES
Availability: InStock

N9 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N9 – AR 01	6''	15	20	1703	972	731	142	230	6"	70	64	134
N9 – AR 02	8"	26.5	35	1957	1035	922	191	230		126	87	213
N9 – AR 03	8"	45	60	2328	1190	1138	191	230		154	111	265
N9 – AR 04	8"	52	70	2604	1275	1329	191	230		169	134	303
N9 – AR 05	8"	67	90	2875	1355	1520	191	230		188	157	345
N9 – AR 06	8"	75	100	3091	1380	1711	191	230		196	180	376
N9 – AR 07	8"	92	125	3427	1525	1902	191	230		222	203	425
N9 – AR 08	8"	110	150	3723	1630	2093	191	230		246	226	472
N9 – AR 09	10"	110	150	3814	1530	2284	231	230		304	249	553
N9 – AR 10	10"	129	175	4085	1610	2475	231	230		334	272	606
N9 – AR 11	10"	147	200	4406	1740	2666	231	230		370	295	665
N9 – AR 12	10"	147	200	4597	1740	2857	231	230		370	318	688
N9 – AR 13	10"	166	225	4868	1820	3048	231	230		394	341	735
N9 – AR 14	10"	185	250	5059	1820	3239	231	230		408	364	772

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N9 – BR 01	6''	18.5	25	1761	1005	756	142	230	6"	78	65	143
N9 – BR 02	8"	37	50	2052	1105	947	191	230		138	88	226
N9 – BR 03	8"	52	70	2413	1275	1138	191	230		169	111	280
N9 – BR 04	8"	67	90	2684	1355	1329	191	230		188	134	322
N9 – BR 05	8"	81	110	2980	1460	1520	191	230		212	157	369
N9 – BR 06	8"	92	125	3236	1525	1711	191	230		222	180	402
N9 – BR 07	10"	110	150	3432	1530	1902	231	230		304	203	507
N9 – BR 08	10"	129	175	3703	1610	2093	231	230		334	226	560
N9 – BR 09	10"	147	200	4024	1740	2284	231	230		370	249	619
N9 – BR 10	10"	166	225	4295	1820	2475	231	230		394	272	666
N9 – BR 11	10"	166	225	4486	1820	2666	231	230		394	295	689

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N9 – ER 01	8"	22	30	1746	990	756	191	230	6"	122	65	187
N9 – ER 02	8"	37	50	2052	1105	947	191	230		138	88	226
N9 – ER 03	8"	55	75	2413	1275	1138	191	230		172	111	283
N9 – ER 04	8"	75	100	2709	1380	1329	191	230		196	134	330
N9 – ER 05	8"	92	125	3045	1525	1520	191	230		222	157	379
N9 – ER 06	10"	110	150	3241	1530	1711	231	230		304	180	484
N9 – ER 07	10"	129	175	3512	1610	1902	231	230		334	203	537
N9 – ER 08	10"	147	200	3833	1740	2093	231	230		370	226	596
N9 – ER 09	10"	166	225	4104	1820	2284	231	230		394	249	643
N9 – ER 10	10"	185	250	4295	1820	2475	231	230		408	272	680

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N9 – XR 01	8"	22	30	1721	990	731	191	230	6"	122	64	186
N9 – XR 02	8"	45	60	2137	1190	947	191	230		154	88	242
N9 – XR 03	8"	67	90	2493	1355	1138	191	230		188	111	299
N9 – XR 04	8"	92	125	2854	1525	1329	191	230		222	134	356
N9 – XR 05	8"	110	150	3150	1630	1520	191	230		246	157	403
N9 – XR 06	10"	129	175	3321	1610	1711	231	230		334	180	514
N9 – XR 07	10"	147	200	3642	1740	1902	231	230		370	203	573
N9 – XR 08	10"	166	225	3913	1820	2093	231	230		394	226	620
N9 – XR 09	10"	185	250	4104	1820	2284	231	230		408	249	657
N9 – XR 10	10"	225	300	4328	1853	2475	231	230		445	272	717

N9-AR Serisi Döküm Pompa / N9-AR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	90	126	144	162	180	198	216	234	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	25	35	40	45	50	55	60	65	Inc	mm	Kg
N9 -AR 01	6''	15	20	Basma Yüksekliği / Total Dynamic Head	39	31	26	24	22	18	16	11	10	6"	731	64
N9 -AR 02	6'' - 8''	26.5	35		78	63	53	48	43	35	33	23	20		922	87
N9 -AR 03	8''	45	60		116	94	79	72	65	53	49	34	30		1138	111
N9 -AR 04	8''	52	70		155	125	105	96	86	70	65	45	40		1329	134
N9 -AR 05	8''	67	90		194	156	131	120	108	88	81	56	50		1520	157
N9 -AR 06	8'' - 10''	75	100		233	188	158	144	129	105	98	68	60		1711	180
N9 -AR 07	8'' - 10''	92	125		271	219	184	168	151	123	114	79	70		1902	203
N9 -AR 08	8'' - 10''	110	150		310	250	210	192	172	140	130	90	80		2093	226
N9 -AR 09	10''	110	150		349	281	236	216	194	158	146	101	90		2284	249
N9 -AR 10	10"	129	175		388	313	263	240	215	175	163	113	100		2475	272
N9 -AR 11	10''	147	200		426	344	289	264	237	193	179	124	110		2666	295
N9 -AR 12	10"	147	200		465	375	315	288	258	210	195	135	120		2857	318
N9 -AR 13	10''	166	225		504	406	341	312	280	228	211	146	130		3048	341
N9 -AR 14	10''	185	250		543	438	368	336	301	245	228	158	140		3239	364

N9-BR Serisi Döküm Pompa / N9-BR Series Cast Iron Pumps

Pompa Tipi Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	108	126	144	162	180	198	216	234	252	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	30	35	40	45	50	55	60	65	70	Inc	mm	Kg
N9 – BR 01	6''	18.5	25	Basma Yüksekliği / Total Dynamic Head	38	33	29	27	25	23	20	18	14	8	6"	756	65
N9 – BR 02	6" - 8"	37	50		77	66	59	55	51	46	41	35	28	15		947	88
N9 – BR 03	8"	52	70		115	99	88	82	76	69	61	53	42	23		1138	111
N9 – BR 04	8"	67	90		153	132	117	109	101	92	81	70	56	30		1329	134
N9 – BR 05	8" - 10"	81	110		191	165	146	136	126	115	101	88	70	38		1520	157
N9 – BR 06	8" - 10"	92	125		230	198	176	164	152	138	122	105	84	45		1711	180
N9 – BR 07	8" - 10"	110	150		268	231	205	191	277	161	142	123	98	53		1902	203
N9 – BR 08	10"	129	175		306	264	234	218	202	184	162	140	112	60		2093	226
N9 – BR 09	10"	147	200		344	297	263	245	227	207	182	158	126	68		2284	249
N9 – BR 10	10"	166	225		383	330	293	273	253	230	203	175	140	75		2475	272
N9 – BR 11	10"	166	225		421	363	322	300	278	253	223	193	154	83		2666	295

N9-ER Serisi Döküm Pompa / N9-ER Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	108	126	144	162	180	198	216	234	252	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	30	35	40	45	50	55	60	65	70	Inc	mm	Kg
N9 – ER 01	6" - 8"	22	30	Basma Yüksekliği / Total Dynamic Head	38	37	33	30	28	27	25	23	21	18	6"	756	65
N9 – ER 02	6" - 8''	37	50		77	75	65	60	57	53	51	46	41	37		947	88
N9 – ER 03	8"	55	75		115	112	98	90	85	80	76	70	62	55		1138	111
N9 – ER 04	8" - 10"	75	100		153	149	131	120	113	107	101	93	83	73		1329	134
N9 – ER 05	8" - 10"	92	125		192	187	163	150	142	133	127	117	103	92		1520	157
N9 – ER 06	8" - 10"	110	150		230	224	196	180	170	160	152	140	124	110		1711	180
N9 – ER 07	10"	129	175		268	261	229	210	198	187	177	163	145	128		1902	203
N9 – ER 08	10"	147	200		307	299	261	240	227	213	203	187	165	147		2093	226
N9 – ER 09	10"	166	225		345	336	294	270	255	240	228	210	186	165		2284	249
N9 – ER 10	10"	185	250		383	373	327	300	284	267	253	233	207	183		2475	272

N9-XR Serisi Döküm Pompa / N9-XR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	108	126	144	162	180	198	216	234	252	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	30	35	40	45	50	55	60	65	70	Inc	mm	Kg
N9 – XR 01	6" - 8"	22	30	Basma Yüksekliği / Total Dynamic Head	38	30	28	27	26	24	22	20	18	15	6"	731	64
N9 – XR 02	6" - 8''	45	60		76	60	57	54	52	48	44	40	35	30		947	88
N9 – XR 03	8"	67	90		114	90	85	81	77	72	66	60	53	45		1138	111
N9 – XR 04	8" - 10"	92	125		152	120	113	108	103	96	88	80	71	60		1329	134
N9 – XR 05	8" - 10"	110	150		190	150	142	135	128	120	117	100	88	75		1520	157
N9 – XR 06	8" - 10"	129	175		228	180	170	162	154	144	132	120	106	90		1711	180
N9 – XR 07	10"	147	200		266	210	198	189	180	168	154	140	124	105		1902	203
N9 – XR 08	10"	166	225		304	240	227	216	205	192	176	160	141	120		2093	226
N9 – XR 09	10"	185	250		342	270	255	243	231	216	198	180	159	135		2284	249
N9 – XR 10	10"	225	300		380	300	283	270	257	240	220	200	176	150		2475	272

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N9 Series Cast Iron Pump includes
N9 8130 / N9 8131 / N9 AA / N9 ARL / N9 ARB / N9(W2) SE / N9 HE / N9(W2) HE
Pumps.
