CAST IRON PUMPS

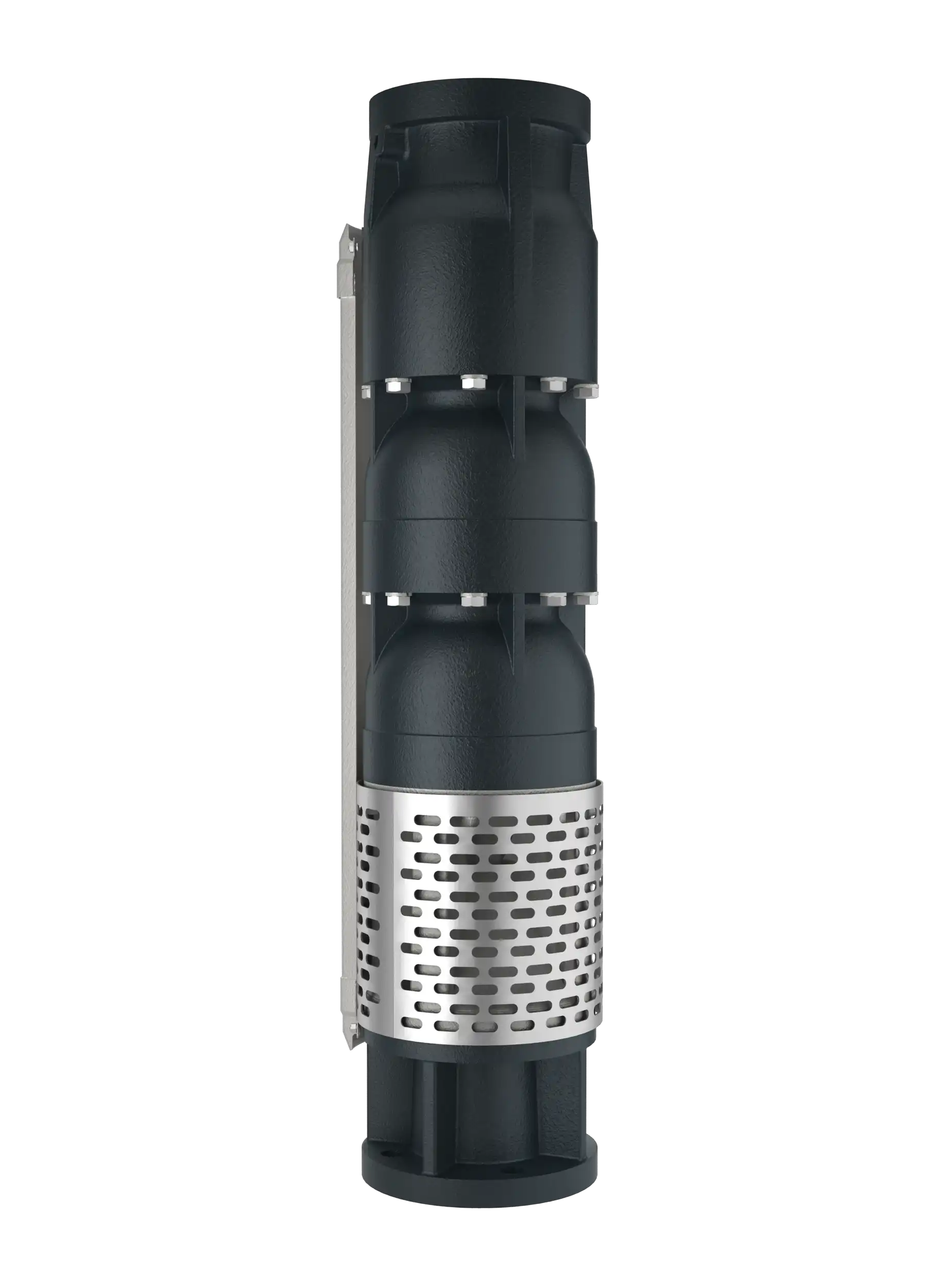

N7 Series
CAST IRON PUMPS

Name: N7 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N7-SERIES
Availability: InStock

N7 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N7 – AR 01	6"	4	5.5	1263	648	615	142	178	4" - 5"	36	33	69
N7 – AR 02	6"	7.5	10	1527	757	770	142	178		50	44	94
N7 – AR 03	6"	9.3	12.5	1722	797	925	142	178		54	55	109
N7 – AR 04	6"	13	17.5	1990	910	1080	142	178		64	66	130
N7 – AR 05	6"	18.5	25	2240	1005	1235	142	178		78	77	155
N7 – AR 06	6"	18.5	25	2395	1005	1390	142	178		78	88	166
N7 – AR 07	6"	22	30	2650	1105	1545	142	178		88	99	187
N7 – AR 08	6"	26.5	35	2916	1216	1700	142	178		98	110	208
N7 – AR 09	8"	30	40	2900	1045	1855	191	178		130	121	251
N7 – AR 10	8"	30	40	3055	1045	2010	191	178		130	132	262
N7 – AR 11	8"	37	50	3270	1105	2165	191	178		138	143	281
N7 – AR 12	8"	45	60	3510	1190	2320	191	178		154	154	308
N7 – AR 13	8"	45	60	3665	1190	2475	191	178		154	165	319
N7 – AR 14	8"	45	60	3820	1190	2630	191	178		154	176	330
N7 – AR 15	8"	52	70	4060	1275	2785	191	178		169	187	356

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N7 – BR 01	6"	7.5	10	1372	757	615	142	178	4" - 5"	50	33	83
N7 – BR 02	6"	9.3	12.5	1567	797	770	142	178		54	44	98
N7 – BR 03	6"	15	20	1897	972	925	142	178		70	55	125
N7 – BR 04	6"	18.5	25	2085	1005	1080	142	178		78	66	144
N7 – BR 05	6"	22	30	2340	1105	1235	142	178		88	77	165
N7 – BR 06	6"	26.5	35	2606	1216	1390	142	178		98	88	186
N7 – BR 07	8"	30	40	2590	1045	1545	191	178		130	99	229
N7 – BR 08	8"	37	50	2805	1105	1700	191	178		138	110	248
N7 – BR 09	8"	37	50	2960	1105	1855	191	178		138	121	259
N7 – BR 10	8"	45	60	3200	1190	2010	191	178		154	132	286
N7 – BR 11	8"	45	60	3355	1190	2165	191	178		154	143	297
N7 – BR 12	8"	52	70	3595	1275	2320	191	178		169	154	323
N7 – BR 13	8"	55	75	3750	1275	2475	191	178		172	165	337
N7 – BR 14	8"	67	90	3985	1355	2630	191	178		188	176	364

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N7 – NR 01	6"	7,5	10	1372	757	615	142	178	4" - 5"	50	33	83
N7 – NR 02	6"	11	15	1620	850	770	142	178		60	44	104
N7 – NR 03	6"	13	17.5	1835	910	925	142	178		64	55	119
N7 – NR 04	6"	18.5	25	2085	1005	1080	142	178		78	66	144
N7 – NR 05	6"-8"	22	30	2225	990	1235	191	178		122	77	199
N7 – NR 06	6"-8"	26.5	35	2425	1035	1390	191	178		126	88	214
N7 – NR 07	6"-8"	30	40	2590	1045	1545	191	178		130	99	229
N7 – NR 08	6"-8"	37	50	2805	1105	1700	191	178		138	110	248
N7 – NR 09	8"	45	60	3045	1190	1855	191	178		154	121	275
N7 – NR 10	8"	45	60	3200	1190	2010	191	178		154	132	286
N7 – NR 11	8"	52	70	3440	1275	2165	191	178		169	143	312
N7 – NR 12	8"	52	70	3595	1275	2320	191	178		169	154	323
N7 – NR 13	8"	55	75	3750	1275	2475	191	178		172	165	337
N7 – NR 14	8"	60	80	3960	1330	2630	191	178		178	176	354
N7 – NR 15	8"	67	90	4141	1355	2786	191	178		188	187	375
N7 – NR 16	8"	67	90	4297	1355	2942	191	178		188	198	386
N7 – NR 17	8"-10"	75	100	4428	1330	3098	231	178		252	209	461
N7 – NR 18	8"-10"	81	110	4624	1370	3254	231	178		264	220	484
N7 – NR 19	8"-10"	81	110	4780	1370	3410	231	178		264	231	495
N7 – NR 20	8"-10"	92	125	4996	1430	3566	231	178		280	242	522

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N7 – (W3)HE 01	6"	5.5	7.5	1297	677	620	142	182	4" - 5"	44	33	77
N7 – (W3)HE 02	6"	11	15	1630	850	780	142	182		60	44	104
N7 – (W3)HE 03	6"	15	20	1912	972	940	142	182		70	55	125
N7 – (W3)HE 04	6"	18.5	25	2105	1005	1100	142	182		78	66	144
N7 – (W3)HE 05	6"	22	30	2365	1105	1260	142	182		88	77	165
N7 – (W3)HE 06	6"	26.5	35	2636	1216	1420	142	182		98	88	186
N7 – (W3)HE 07	8"	37	50	2685	1105	1580	191	182		138	99	237
N7 – (W3)HE 08	8"	37	50	2845	1105	1740	191	182		138	110	248
N7 – (W3)HE 09	8"	45	60	3090	1190	1900	191	182		154	121	275
N7 – (W3)HE 10	8"	45	60	3250	1190	2060	191	182		154	132	286
N7 – (W3)HE 11	8"	52	70	3495	1275	2220	191	182		169	143	312
N7 – (W3)HE 12	8"	55	75	3655	1275	2380	191	182		172	154	326
N7 – (W3)HE 13	8"	60	80	3870	1330	2540	191	182		178	165	343
N7 – (W3)HE 14	8"	67	90	4055	1355	2700	191	182		188	176	364

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N7 – HE 01	6"	7.5	10	1377	757	620	142	182	4" - 5"	50	33	83
N7 – HE 02	6"	11	15	1630	850	780	142	182		60	44	104
N7 – HE 03	6"	15	20	1912	972	940	142	182		70	55	125
N7 – HE 04	6"	22	30	2205	1105	1100	142	182		88	66	154
N7 – HE 05	6"	26.5	35	2476	1216	1260	142	182		98	77	175
N7 – HE 06	6"	30	40	2666	1246	1420	142	182		100	88	188
N7 – HE 07	8"	37	50	2685	1105	1580	191	182		138	99	237
N7 – HE 08	8"	45	60	2930	1190	1740	191	182		154	110	264
N7 – HE 09	8"	45	60	3090	1190	1900	191	182		154	121	275
N7 – HE 10	8"	52	70	3335	1275	2060	191	182		169	132	301
N7 – HE 11	8"	55	75	3495	1275	2220	191	182		172	143	315
N7 – HE 12	8"	60	80	3710	1330	2380	191	182		178	154	332
N7 – HE 13	8"	67	90	3895	1355	2540	191	182		188	165	353
N7 – HE 14	8"	67	90	4055	1355	2700	191	182		188	176	364

N7-AR Serisi Döküm Pompa / N7-AR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	36	48	54	60	72	84	90	105	115	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	10	13.3	15	16.7	20	23.3	25	29.2	32	Inc	mm	Kg
N7 – AR 01	6''	4	5.5	Basma Yüksekliği / Total Dynamic Head	20	16	15	14	12	11	9	7	4	2	4" - 5"	615	33
N7 – AR 02	6''	7.5	10		40	32	29	27	24	21	17	15	8	4		770	44
N7 – AR 03	6"	9.3	12.5		60	48	44	41	36	32	26	22	12	5		925	55
N7 – AR 04	6"	13	17.5		80	64	59	55	48	43	35	29	16	7		1080	66
N7 – AR 05	6"	18.5	25		100	80	74	69	60	53	43	37	20	9		1235	77
N7 – AR 06	6"	18.5	25		120	97	88	82	73	64	52	44	25	11		1390	88
N7 – AR 07	6" - 8"	22	30		140	113	103	95	85	74	60	51	29	13		1545	99
N7 – AR 08	6" - 8"	26.5	35		160	129	118	109	97	85	69	58	33	15		1700	110
N7 – AR 09	6" - 8"	30	40		180	145	133	123	109	95	78	65	37	16		1855	121
N7 – AR 10	6" - 8"	30	40		200	161	147	136	121	106	87	73	41	18		2010	132
N7 – AR 11	6" - 8"	37	50		220	177	162	150	133	117	95	80	45	20		2165	143
N7 – AR 12	8"	45	60		240	193	177	164	145	128	104	87	49	22		2320	154
N7 – AR 13	8"	45	60		260	209	191	177	157	138	112	95	53	24		2475	165
N7 – AR 14	8"	45	60		280	225	206	191	169	149	121	102	57	25		2630	176
N7 – AR 15	8"	52	70		300	241	221	205	181	160	130	109	61	27		2785	187

N7-BR Serisi Döküm Pompa / N7-BR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate												Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	36	54	60	72	84	90	105	115	130	150	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	10	15	16.7	20	23	25	29.2	32	36.1	41.7	Inc	mm	Kg
N7 – BR 01	6''	7.5	10	Basma Yüksekliği / Total Dynamic Head	21	17	16	15	14	13	12	11	10	8	4	4" - 5"	615	33
N7 – BR 02	6"	9.3	12.5		41	35	31	29	28	26	24	21	19	16	8		770	44
N7 – BR 03	6"	15	20		62	52	47	44	42	39	37	32	29	24	12		925	55
N7 – BR 04	6"	18.5	25		82	69	62	59	56	51	49	43	38	31	16		1080	66
N7 – BR 05	6" - 8"	22	30		103	87	78	73	69	64	61	53	48	39	19		1235	77
N7 – BR 06	6" - 8"	26.5	35		123	104	93	88	83	77	73	64	57	47	23		1390	88
N7 – BR 07	6" - 8"	30	40		144	121	109	103	97	89	86	75	67	54	27		1545	99
N7 – BR 08	6" - 8"	37	50		164	139	124	117	111	102	98	86	77	62	31		1700	110
N7 – BR 09	6" - 8"	37	50		185	156	140	132	125	115	110	96	86	70	35		1855	121
N7 – BR 10	8"	45	60		206	173	156	147	139	128	122	107	96	78	39		2010	132
N7 – BR 11	8"	45	60		226	191	171	161	153	141	134	117	105	86	43		2165	143
N7 – BR 12	8"	52	70		247	208	187	176	167	153	147	128	115	93	47		2320	154
N7 – BR 13	8"	55	75		267	225	202	191	181	166	160	139	124	101	51		2475	165
N7 – BR 14	8"	67	90		288	243	2018	205	195	179	171	149	134	109	54		2630	176

N7-NR Serisi Döküm Pompa / N7-NR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate														Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	44	50	55	62	66	72	76	82	90	100	110	120	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Type	KW	HP	lt/sn	0	12.2	13.9	15.3	17	18	20	21.1	23	25	27.8	30.6	33.3	Inc	mm	Kg
N7 – NR 01	6"	7,5	10	Basma Yüksekliği / Total Dynamic Head	23	20	20	19	18	17	16	16	14	13	11	8	5	4" - 5"	615	33
N7 – NR 02	6"	11	15		46	40	39	38	36	35	33	32	29	26	21	16	10		770	44
N7 – NR 03	6"	13	17.5		69	60	59	57	55	53	49	47	43	38	32	24	16		925	55
N7 – NR 04	6"	18.5	25		92	80	79	76	73	71	66	63	58	51	42	32	21		1080	66
N7 – NR 05	6"-8"	22	30		114	101	99	96	91	88	82	79	72	64	53	40	26		1235	77
N7 – NR 06	6"-8"	26.5	35		137	121	118	115	109	106	99	95	87	77	63	48	31		1390	88
N7 – NR 07	6"-8"	30	40		160	141	138	134	128	124	115	110	101	89	74	56	37		1545	99
N7 – NR 08	6"-8"	37	50		183	161	157	153	146	141	132	126	116	102	85	64	42		1700	110
N7 – NR 09	8"	45	60		206	181	177	172	164	159	148	142	130	115	95	72	47		1855	121
N7 – NR 10	8"	45	60		229	201	197	191	182	177	164	158	144	127	106	80	52		2010	132
N7 – NR 11	8"	52	70		252	221	216	210	200	194	181	174	159	141	116	88	57		2165	143
N7 – NR 12	8"	52	70		275	241	236	229	219	212	197	189	173	153	127	96	63		2320	154
N7 – NR 13	8"	55	75		298	261	256	248	237	230	214	205	188	166	137	104	68		2475	165
N7 – NR 14	8"	60	80		320	282	275	268	255	248	230	221	202	179	148	112	73		2630	176
N7 – NR 15	8"	67	90		343	302	295	387	273	265	247	237	217	192	158	120	78		2786	187
N7 – NR 16	8"	67	90		366	322	315	306	292	283	263	252	231	204	169	128	84		2942	198
N7 – NR 17	8"-10"	75	100		389	342	335	324	310	300	280	268	246	217	180	136	89		3098	209
N7 – NR 18	8"-10"	81	110		412	362	354	344	328	318	296	284	260	230	190	144	94		3254	220
N7 – NR 19	8"-10"	81	110		435	382	374	363	347	336	312	300	274	243	201	152	99		3410	231
N7 – NR 20	8"-10"	92	125		458	402	393	382	364	353	329	316	289	256	211	160	104		3566	242

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	60	80	100	110	120	130	140	160	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	16.7	22.2	28	30.6	33	36.1	39	44.4	Inc	mm	Kg
N7 – (W3)HE 01	6''	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	18	15	13	12	11	10	9	8	5	4" - 5"	620	33
N7 – (W3)HE 02	6"	11	15		37	29	26	23	21	20	18	15	10		780	44
N7 – (W3)HE 03	6"	15	20		55	44	39	35	32	30	27	23	15		940	55
N7 – (W3)HE 04	6"	18.5	25		74	58	51	46	43	39	35	31	20		1100	66
N7 – (W3)HE 05	6" - 8"	22	30		92	73	64	58	54	49	44	39	25		1260	77
N7 – (W3)HE 06	6" - 8"	26.5	35		111	87	77	69	64	59	53	46	30		1420	88
N7 – (W3)HE 07	6" - 8"	37	50		129	102	90	81	75	69	62	54	35		1580	99
N7 – (W3)HE 08	6" - 8"	37	50		147	117	103	93	86	79	71	62	40		1740	110
N7 – (W3)HE 09	8"	45	60		166	131	116	104	96	89	80	69	45		1900	121
N7 – (W3)HE 10	8"	45	60		184	146	129	116	107	99	89	77	50		2060	132
N7 – (W3)HE 11	8"	52	70		203	160	141	127	118	108	97	85	55		2220	143
N7 – (W3)HE 12	8"	55	75		221	175	154	139	129	118	106	93	60		2380	154
N7 – (W3)HE 13	8"	60	80		240	189	167	150	139	128	115	100	65		2540	165
N7 – (W3)HE 14	8"	67	90		258	204	180	162	150	138	124	108	70		2700	176

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	60	80	100	110	120	130	140	160	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	16.7	22.2	28	30.6	33	36.1	39	44.4	Inc	mm	Kg
N7 – HE 01	6''	7.5	10	Basma Yüksekliği / Total Dynamic Head	19	17	14	12	12	11	10	9	6	4" - 5"	620	33
N7 – HE 02	6"	11	15		39	33	27	25	23	21	20	17	13		780	44
N7 – HE 03	6"	15	20		58	50	41	37	35	32	30	26	19		940	55
N7 – HE 04	6" - 8"	22	30		78	67	55	49	46	43	40	34	26		1100	66
N7 – HE 05	6" - 8"	26.5	35		97	84	69	61	58	54	50	43	32		1260	77
N7 – HE 06	6" - 8"	30	40		117	100	82	71	69	64	60	51	39		1420	88
N7 – HE 07	6" - 8"	37	50		136	117	96	86	81	75	70	60	45		1580	99
N7 – HE 08	8"	45	60		155	134	110	98	93	86	80	69	51		1740	110
N7 – HE 09	8"	45	60		175	150	123	11	104	96	90	77	58		1900	121
N7 – HE 10	8"	52	70		194	167	137	123	116	107	100	86	64		2060	132
N7 – HE 11	8"	55	75		214	184	151	135	127	118	110	94	71		2220	143
N7 – HE 12	8"	60	80		233	201	165	147	139	129	120	103	77		2380	154
N7 – HE 13	8"	67	90		253	217	187	160	150	139	130	11	84		2540	165
N7 – HE 14	8"	67	90		272	234	192	172	162	150	140	120	90		2700	176

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N7 Series Cast Iron Pump includes
N7 AR / N7 BR / N7 NR / N7(WE3) HE / N7 HE
Pumps.

Let's Find the Right Product
for Your Project Together

FIND THE RIGHT PRODUCT QUICKLY

GET A QUOTE TALK TO AN EXPERT

Technical Documents &
Catalogs

QUICKLY ACCESS CATALOGS, TECHNICAL DOCUMENTS AND USER GUIDES FOR OUR PRODUCT GROUPS.

TECHNICAL CATALOG

Recommendation system
based on engineering data

N7 Series
CAST IRON PUMPS

N7-AR Serisi Döküm Pompa / N7-AR Series Cast Iron Pumps

N7-BR Serisi Döküm Pompa / N7-BR Series Cast Iron Pumps

N7-NR Serisi Döküm Pompa / N7-NR Series Cast Iron Pumps

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N6 Series CAST IRON PUMPS

N8 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation systembased on engineering data

N7 SeriesCAST IRON PUMPS

N7-AR Serisi Döküm Pompa / N7-AR Series Cast Iron Pumps

N7-BR Serisi Döküm Pompa / N7-BR Series Cast Iron Pumps

N7-NR Serisi Döküm Pompa / N7-NR Series Cast Iron Pumps

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

N7-HE Serisi Döküm Pompa / N7-HE Series Cast Iron Pumps

Let's Find the Right Productfor Your Project Together

Technical Documents &Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N6 Series CAST IRON PUMPS

N8 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation system
based on engineering data

N7 Series
CAST IRON PUMPS

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs
