CAST IRON PUMPS

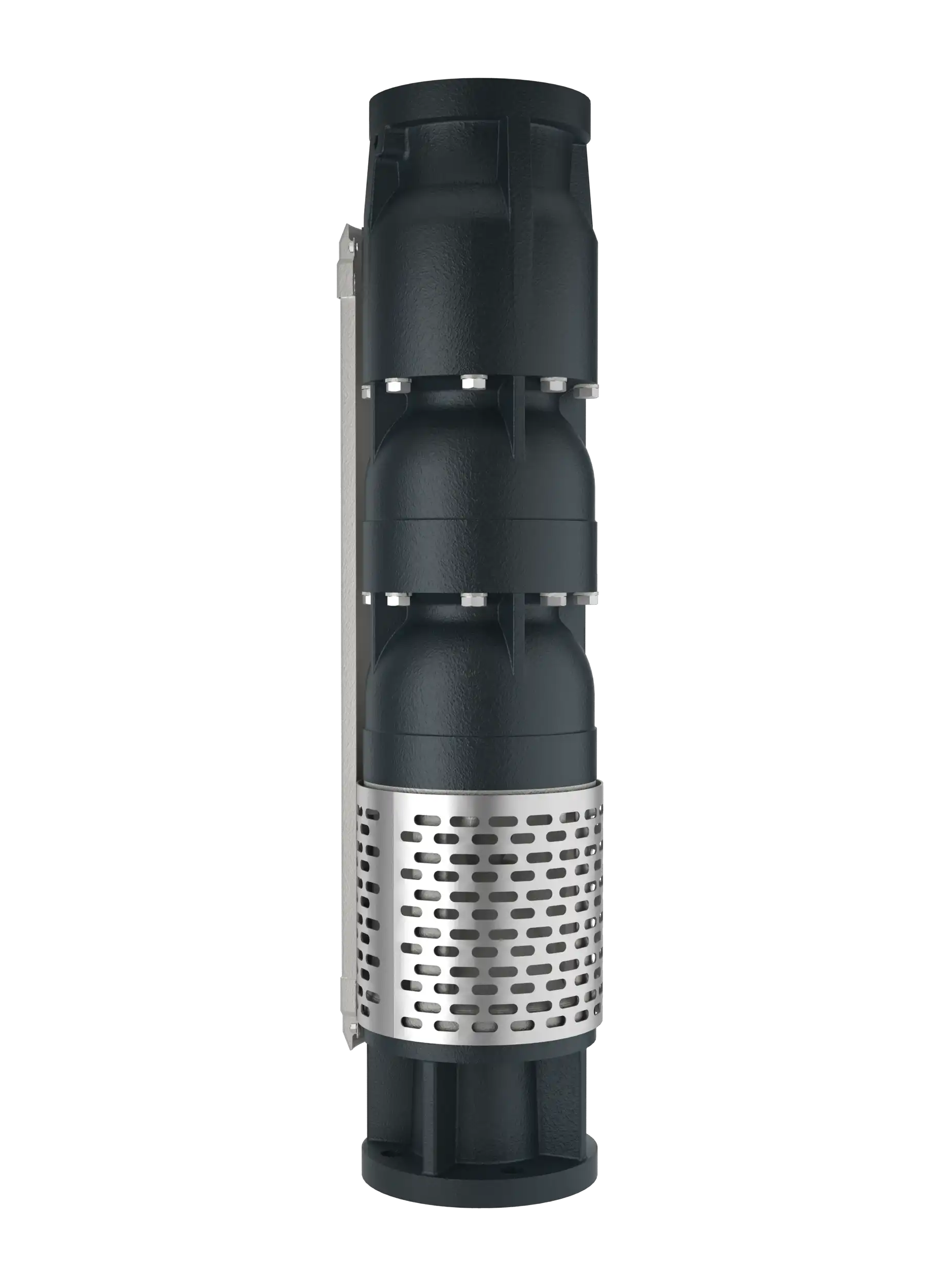

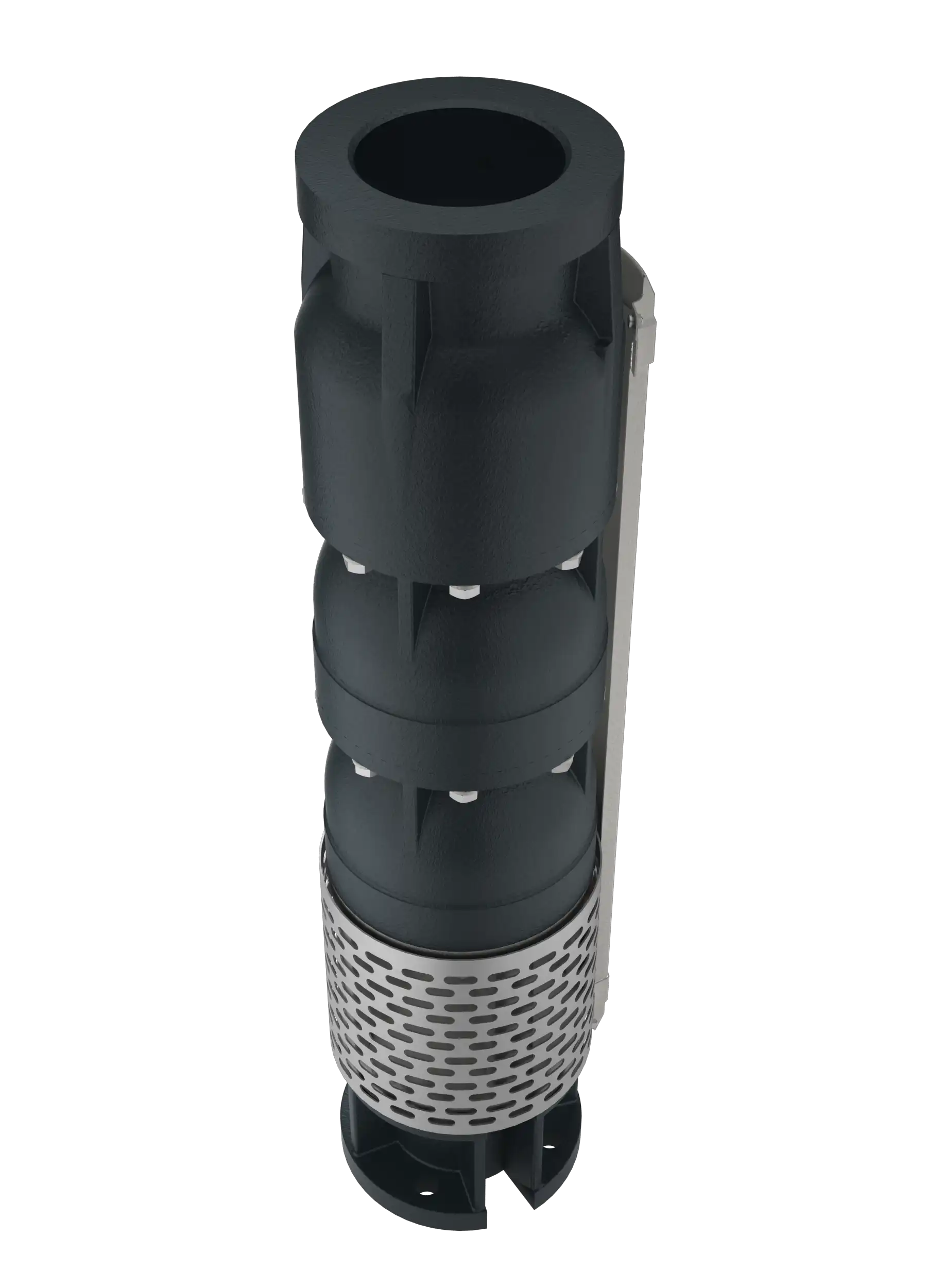

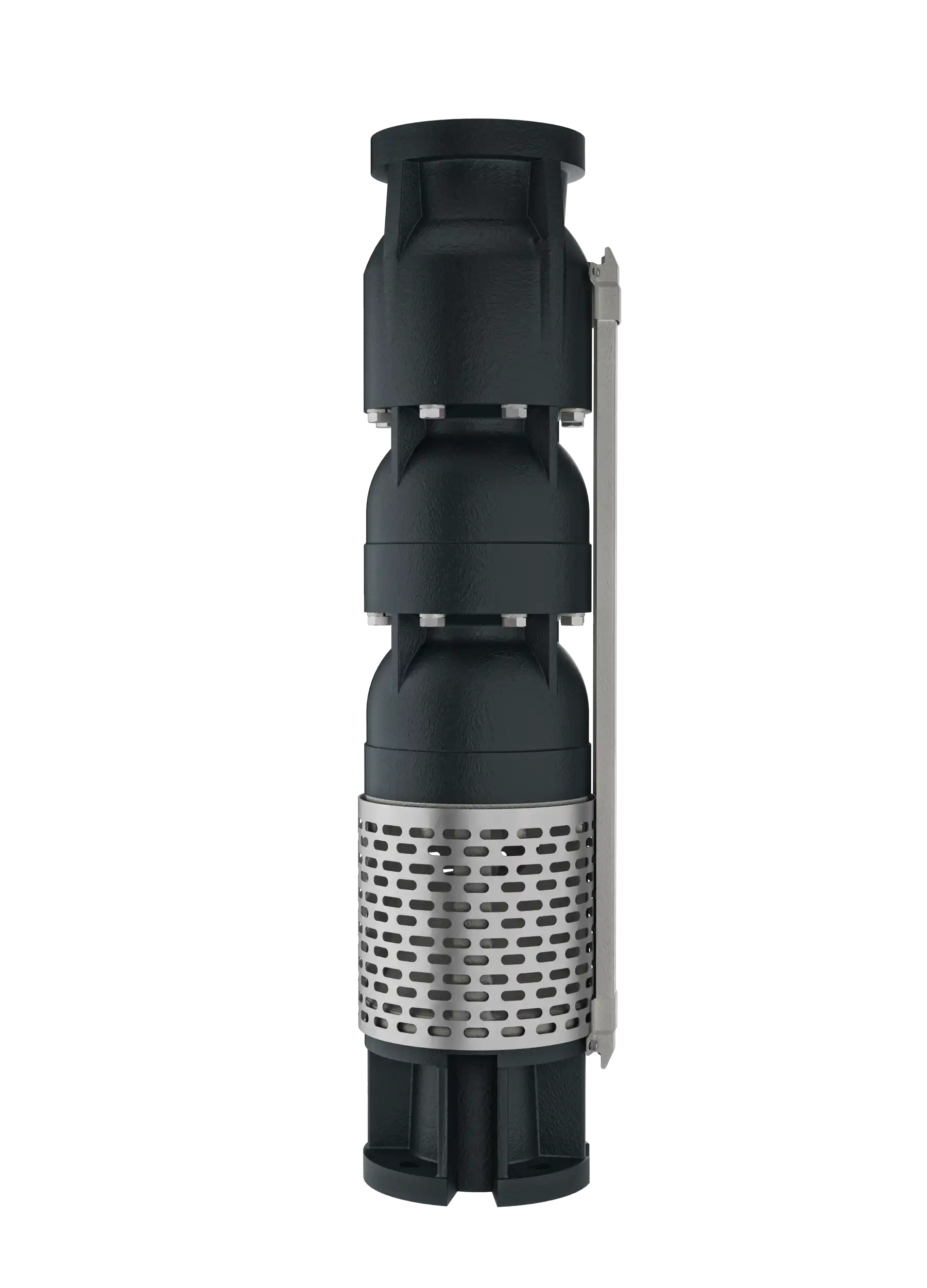

N6 Series
CAST IRON PUMPS

Name: N6 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N6-SERIES
Availability: InStock

N6 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N6 – AR 03	6"	4	5.5	1417	648	769	142	148	2 1/2" - 3" - 4''	36	36	72
N6 – AR 04	6"	5.5	7.5	1569	677	892	142	148		44	42	86
N6 – AR 05	6"	7.5	10	1772	757	1015	142	148		50	49	99
N6 – AR 06	6"	7.5	10	1895	757	1138	142	148		50	56	106
N6 – AR 07	6"	9.3	12.5	2058	797	1261	142	148		54	62	116
N6 – AR 08	6"	11	15	2234	850	1384	142	148		60	69	129
N6 – AR 09	6"	11	15	2357	850	1507	142	148		60	75	135
N6 – AR 10	6"	13	17.5	2540	910	1630	142	148		64	82	146
N6 – AR 11	6"	15	20	2725	972	1753	142	148		70	87	157
N6 – AR 12	6"	15	20	2848	972	1876	142	148		70	95	165
N6 – AR 13	6"	18.5	25	3004	1005	1999	142	148		78	102	180
N6 – AR 14	6"	18.5	25	3127	1005	2122	142	148		78	108	186
N6 – AR 15	6"	22	30	3350	1105	2245	142	148		88	115	203
N6 – AR 16	6"	22	30	3473	1105	2368	142	148		88	122	210
N6 – AR 17	6"	22	30	3596	1105	2491	142	148		88	128	216
N6 – AR 18	6"	22	30	3719	1105	2614	142	148		88	135	223
N6 – AR 19	6"	26.5	35	3953	1216	2737	142	148		98	141	239
N6 – AR 20	6"	26.5	35	4076	1216	2860	142	148		98	148	246
N6 – AR 21	6"	26.5	35	4199	1216	2983	142	148		98	155	253
N6 – AR 22	6"	30	40	4352	1246	3106	142	148		100	161	261
N6 – AR 23	6"	30	40	4475	1246	3229	142	148		100	168	268
N6 – AR 24	6"	30	40	4598	1246	3352	142	148		100	174	274

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N6 – CR 02	6"	4	5.5	1294	648	646	142	148	2 1/2" - 3" - 4''	36	29	65
N6 – CR 03	6"	5.5	7.5	1446	677	769	142	148		44	36	80
N6 – CR 04	6"	7.5	10	1649	757	892	142	148		50	42	92
N6 – CR 05	6"	7.5	10	1772	757	1015	142	148		50	49	99
N6 – CR 06	6''	11	15	1988	850	1138	142	148		60	56	116
N6 – CR 07	6"	11	15	2111	850	1261	142	148		60	62	122
N6 – CR 08	6"	13	17.5	2294	910	1384	142	148		64	69	133
N6 – CR 09	6"	15	20	2479	972	1507	142	148		70	75	145
N6 – CR 10	6"	15	20	2602	972	1630	142	148		70	82	152
N6 – CR 11	6"	18.5	25	2758	1005	1753	142	148		78	89	167
N6 – CR 12	6"	18.5	25	2881	1005	1876	142	148		78	95	173
N6 – CR 13	6''	22	30	3104	1105	1999	142	148		88	102	190
N6 – CR 14	6"	22	30	3227	1105	2122	142	148		88	108	196
N6 – CR 15	6"	22	30	3350	1105	2245	142	148		88	115	203
N6 – CR 16	6"	26.5	35	3584	1216	2368	142	148		98	122	220
N6 – CR 17	6''	26.5	35	3707	1216	2491	142	148		98	128	226
N6 – CR 18	6"	30	40	3860	1246	2614	142	148		100	135	235

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N6 – ER 03	6"	5.5	7.5	1446	677	769	142	148	2 1/2" - 3" - 4''	44	36	80
N6 – ER 04	6"	7.5	10	1649	757	892	142	148		50	42	92
N6 – ER 05	6"	9.3	12.5	1812	797	1015	142	148		54	49	103
N6 – ER 06	6"	11	15	1988	850	1138	142	148		60	56	116
N6 – ER 07	6"	13	17.5	2171	910	1261	142	148		64	62	126
N6 – ER 08	6"	15	20	2356	972	1384	142	148		70	69	139
N6 – ER 09	6"	18.5	25	2512	1005	1507	142	148		78	75	153
N6 – ER 10	6"	18.5	25	2635	1005	1630	142	148		78	82	160
N6 – ER 11	6"	18.5	25	2758	1005	1753	142	148		78	89	167
N6 – ER 12	6"	22	30	2981	1105	1876	142	148		88	95	183
N6 – ER 13	6"	22	30	3104	1105	1999	142	148		88	102	190
N6 – ER 14	6"	26.5	35	3338	1216	2122	142	148		98	108	206
N6 – ER 15	6"	26.5	35	3461	1216	2245	142	148		98	115	213
N6 – ER 16	6"	30	40	3614	1246	2368	142	148		100	122	222
N6 – ER 17	6"	30	40	3737	1246	2491	142	148		100	128	228
N6 – ER 18	6"	37	50	3960	1346	2614	142	148		114	135	249

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N6 – XR 03	6"	7.5	10	1526	757	769	142	148	2 1/2" - 3" - 4''	50	36	86
N6 – XR 04	6"	9.3	12.5	1689	797	892	142	148		54	42	96
N6 – XR 05	6"	11	15	1865	850	1015	142	148		60	49	109
N6 – XR 06	6"	13	17.5	2048	910	1138	142	148		64	56	120
N6 – XR 07	6"	15	20	2233	972	1261	142	148		70	62	132
N6 – XR 08	6"	18.5	25	2389	1005	1384	142	148		78	69	147
N6 – XR 09	6"	18.5	25	2512	1005	1507	142	148		78	75	153
N6 – XR 10	6"	22	30	2735	1105	1630	142	148		88	82	170
N6 – XR 11	6"	26.5	35	2969	1216	1753	142	148		98	89	187
N6 – XR 12	6"	26.5	35	3092	1216	1876	142	148		98	95	193
N6 – XR 13	6"	30	40	3245	1246	1999	142	148		100	102	202
N6 – XR 14	6"	30	40	3368	1246	2122	142	148		100	108	208
N6 – XR 15	6"	30	40	3491	1246	2245	142	148		100	115	215
N6 – XR 16	6"	37	50	3714	1346	2368	142	148		114	122	236
N6 – XR 17	6''	37	50	3837	1346	2491	172	148		114	128	242

N6-AR Serisi Döküm Pompa / N6-AR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	18	22	25	29	32	36	39	45	50	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	5	6.1	6.9	8.1	8.9	10	10.8	12.5	13.9	Inc	mm	Kg
N6 – AR 03	6"	4	5.5	Basma Yüksekliği / Total Dynamic Head	41	33	31	29	27	25	23	20	15	11	2 1/2" - 3" - 4''	769	36
N6 – AR 04	6"	5.5	7.5		54	44	41	38	36	34	30	27	20	15		892	42
N6 – AR 05	6"	7.5	10		68	55	51	48	45	42	38	33	25	19		1015	49
N6 – AR 06	6"	7.5	10		82	66	61	58	54	51	45	40	30	23		1138	56
N6 – AR 07	6"	9.3	12.5		95	76	71	67	63	59	53	57	35	26		1261	62
N6 – AR 08	6"	11	15		109	87	81	77	72	67	60	53	40	30		1384	69
N6 – AR 09	6"	11	15		122	98	92	86	81	76	68	60	45	33		1507	75
N6 – AR 10	6"	13	17.5		136	109	102	96	90	84	75	67	50	38		1630	82
N6 – AR 11	6"	15	20		149	120	112	105	99	93	83	73	55	41		1753	87
N6 – AR 12	6"	15	20		163	131	122	115	108	101	90	80	60	45		1876	95
N6 – AR 13	6"	18.5	25		177	142	132	125	117	109	98	87	65	49		1999	102
N6 – AR 14	6"	18.5	25		190	153	142	134	126	118	105	93	70	53		2122	108
N6 – AR 15	6" - 8"	22	30		204	164	153	144	135	126	113	100	75	56		2245	115
N6 – AR 16	6" - 8"	22	30		217	175	163	153	144	135	120	107	80	60		2368	122
N6 – AR 17	6" - 8"	22	30		231	186	173	163	153	143	128	113	85	64		2491	128
N6 – AR 18	6" - 8"	22	30		245	197	183	173	162	152	135	120	90	68		2614	135
N6 – AR 19	6" - 8"	26.5	35		258	207	193	182	171	160	143	127	95	71		2737	141
N6 – AR 20	6" - 8"	26.5	35		272	218	203	192	180	168	150	133	100	75		2860	148
N6 – AR 21	6" - 8"	26.5	35		285	229	214	201	189	177	158	140	105	79		2983	155
N6 – AR 22	6" - 8"	30	40		299	240	224	211	198	185	165	147	110	83		3106	161
N6 – AR 23	6" - 8"	30	40		312	251	234	220	207	194	173	153	115	86		3229	168
N6 – AR 24	6" - 8"	30	40		326	262	244	230	216	202	180	160	120	90		3352	174

N6-CR Serisi Döküm Pompa / N6-CR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate												Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	29	32	36	40	43	47	50	54	65	72	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	8.1	8.9	10	11	11.9	13.1	13.9	15	18	20	Inc	mm	Kg
N6 – CR 02	6"	4	5.5	Basma Yüksekliğİ / Total Dynamic Head	27	23	21	20	19	18	17	16	14	10	6	2 1/2" - 3" - 4''	646	29
N6 – CR 03	6"	5.5	7.5		41	34	32	30	29	27	26	24	21	15	9		769	36
N6 – CR 04	6"	7.5	10		54	46	42	40	38	36	34	32	28	20	12		892	42
N6 – CR 05	6"	9.3	12.5		68	57	53	51	48	45	43	41	35	25	15		1015	49
N6 – CR 06	6''	11	15		81	68	34	61	57	54	51	49	42	30	18		1138	56
N6 – CR 07	6"	11	15		95	80	74	71	67	63	60	57	49	35	21		1261	62
N6 – CR 08	6"	13	17.5		108	91	85	81	76	72	68	65	56	40	24		1384	69
N6 – CR 09	6"	15	20		122	103	96	91	86	81	77	73	63	45	27		1507	75
N6 – CR 10	6"	18.5	25		135	114	106	101	95	90	85	81	70	50	30		1630	82
N6 – CR 11	6"	18.5	25		149	125	117	111	105	99	94	89	77	55	33		1753	89
N6 – CR 12	6"	18.5	25		162	137	127	121	114	108	102	97	84	60	36		1876	95
N6 – CR 13	6'' - 8''	22	30		176	148	138	131	124	117	111	105	91	65	39		1999	102
N6 – CR 14	6" - 8''	22	30		189	160	148	141	133	126	119	113	98	70	42		2122	108
N6 – CR 15	6'' - 8''	22	30		203	171	159	152	143	135	128	122	105	75	45		2245	115
N6 – CR 16	6" - 8''	26.5	35		216	182	170	162	152	144	136	130	112	80	48		2368	122
N6 – CR 17	6'' - 8''	26.5	35		230	194	180	172	162	153	145	138	119	85	51		2491	128
N6 – CR 18	6" - 8''	30	40		243	206	191	182	171	162	153	146	126	90	54		2614	135

N6-ER Serisi Döküm Pompa / N6-ER Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	24	30	36	45	54	66	75	80	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	6.7	8	10	12.5	15	18.3	20.8	22.2	Inc	mm	Kg
N6 – ER 03	6"	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	38	33	31	29	26	22	16	13	11	2 1/2" - 3" - 4''	769	36
N6 – ER 04	6"	7.5	10		50	43	41	39	35	29	21	17	15		892	42
N6 – ER 05	6"	9.3	12.5		63	54	52	49	43	36	26	21	18		1015	49
N6 – ER 06	6"	11	15		75	65	62	59	52	44	31	25	22		1138	56
N6 – ER 07	6"	13	17.5		88	76	72	68	61	51	36	29	26		1261	62
N6 – ER 08	6"	15	20		100	87	83	78	69	58	41	33	29		1384	69
N6 – ER 09	6"	18.5	25		113	98	93	88	78	65	47	38	33		1507	75
N6 – ER 10	6"	18.5	25		125	108	103	98	87	73	52	42	37		1630	82
N6 – ER 11	6"	18.5	25		138	119	114	107	95	80	57	46	40		1753	89
N6 – ER 12	6" - 8''	22	30		150	130	124	117	104	87	62	50	44		1876	95
N6 – ER 13	6" - 8''	22	30		163	141	134	127	113	94	67	54	48		1999	102
N6 – ER 14	6" - 8''	26.5	35		175	152	145	137	121	102	72	58	51		2122	108
N6 – ER 15	6" - 8''	26.5	35		188	163	155	146	130	109	78	63	55		2245	115
N6 – ER 16	6" - 8''	30	40		200	173	165	156	139	116	83	67	59		2368	122
N6 – ER 17	6" - 8''	30	40		213	184	176	166	147	123	88	71	62		2491	128
N6 – ER 18	6" - 8''	37	50		225	195	186	176	156	131	93	75	66		2614	135

N6-XR Serisi Döküm Pompa / N6-XR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	30	36	45	54	66	75	84	94	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	8.3	10	12.5	15	18.3	20.8	23.3	26.1	Inc	mm	Kg
N6 – XR 03	6"	7.5	10	Basma Yüksekliği / Total Dynamic Head	39	34	34	32	29	23	21	15	12	2 1/2" - 3" - 4''	769	36
N6 – XR 04	6"	9.3	12.5		52	47	45	42	38	31	28	20	16		892	42
N6 – XR 05	6"	11	15		65	59	57	53	48	39	35	25	20		1015	49
N6 – XR 06	6"	13	17.5		78	70	68	63	57	46	41	30	24		1138	56
N6 – XR 07	6"	15	20		91	82	79	74	67	54	48	35	28		1261	62
N6 – XR 08	6"	18.5	25		104	94	90	84	76	62	55	40	32		1384	69
N6 – XR 09	6"	18.5	25		117	105	102	95	86	69	62	45	36		1507	75
N6 – XR 10	6" - 8"	22	30		130	117	113	105	95	77	69	50	40		1630	82
N6 – XR 11	6" - 8"	26.5	35		143	129	124	116	105	85	76	55	44		1753	89
N6 – XR 12	6" - 8"	26.5	35		156	140	136	126	114	92	83	60	48		1876	95
N6 – XR 13	6" - 8"	30	40		169	152	147	137	124	100	90	65	52		1999	102
N6 – XR 14	6" - 8"	30	40		182	164	158	147	133	108	97	70	56		2122	108
N6 – XR 15	6" - 8"	30	40		195	176	170	158	143	116	104	75	60		2245	115
N6 – XR 16	6" - 8"	37	50		208	187	181	168	152	123	110	80	64		2368	122
N6 – XR 17	6" - 8"	37	50		221	199	192	179	162	131	117	85	68		2491	128

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N6 Series Cast Iron Pump includes
N6 AR / N6 CR / N6 ER / N6 XR
Pumps.

Let's Find the Right Product
for Your Project Together

FIND THE RIGHT PRODUCT QUICKLY

GET A QUOTE TALK TO AN EXPERT

Technical Documents &
Catalogs

QUICKLY ACCESS CATALOGS, TECHNICAL DOCUMENTS AND USER GUIDES FOR OUR PRODUCT GROUPS.

TECHNICAL CATALOG

Recommendation system
based on engineering data

N6 Series
CAST IRON PUMPS

N6-AR Serisi Döküm Pompa / N6-AR Series Cast Iron Pumps

N6-CR Serisi Döküm Pompa / N6-CR Series Cast Iron Pumps

N6-ER Serisi Döküm Pompa / N6-ER Series Cast Iron Pumps

N6-XR Serisi Döküm Pompa / N6-XR Series Cast Iron Pumps

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N7 Series CAST IRON PUMPS

N8 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation systembased on engineering data

N6 SeriesCAST IRON PUMPS

N6-AR Serisi Döküm Pompa / N6-AR Series Cast Iron Pumps

N6-CR Serisi Döküm Pompa / N6-CR Series Cast Iron Pumps

N6-ER Serisi Döküm Pompa / N6-ER Series Cast Iron Pumps

N6-XR Serisi Döküm Pompa / N6-XR Series Cast Iron Pumps

Let's Find the Right Productfor Your Project Together

Technical Documents &Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N7 Series CAST IRON PUMPS

N8 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation system
based on engineering data

N6 Series
CAST IRON PUMPS

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs
