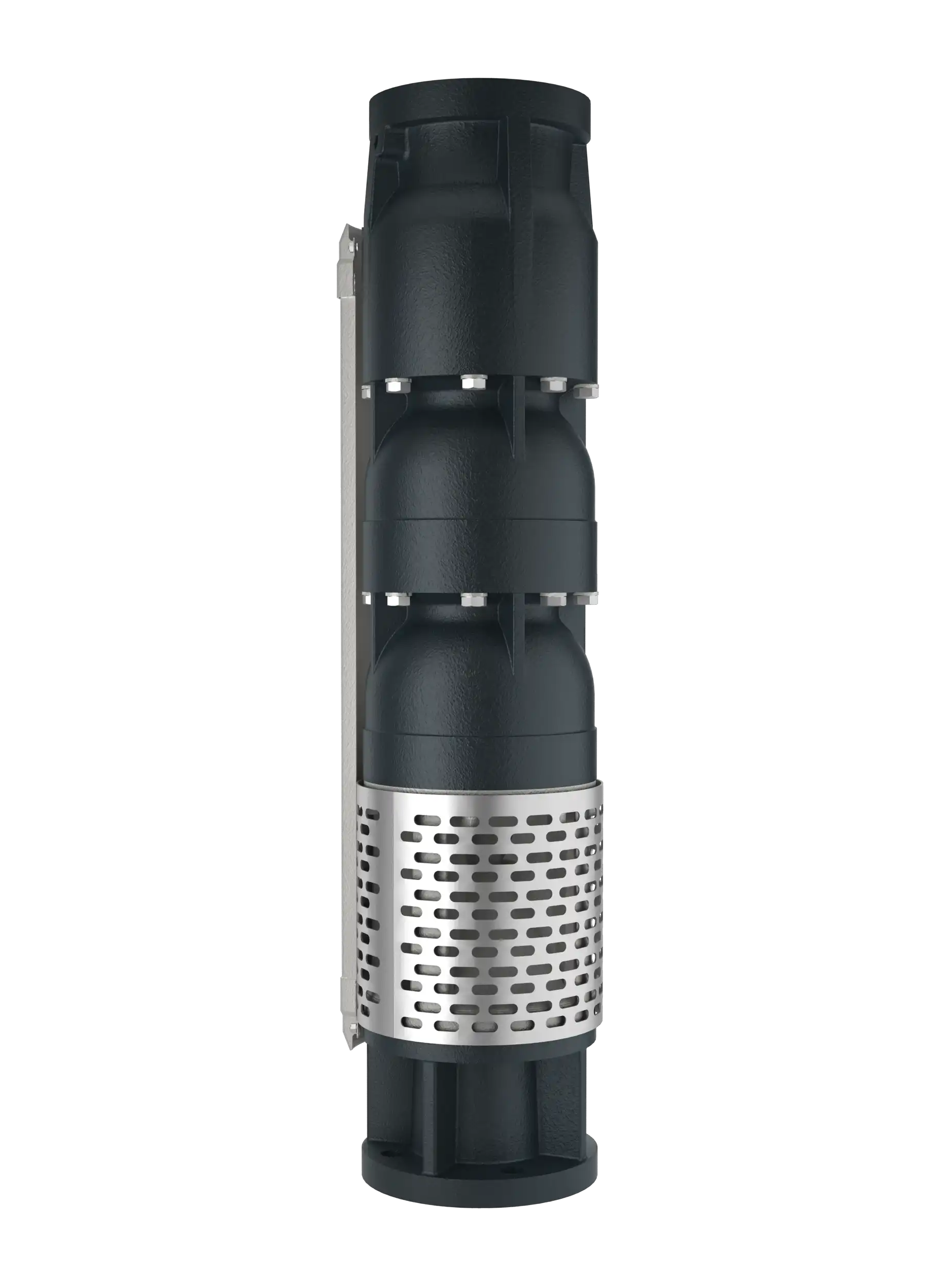

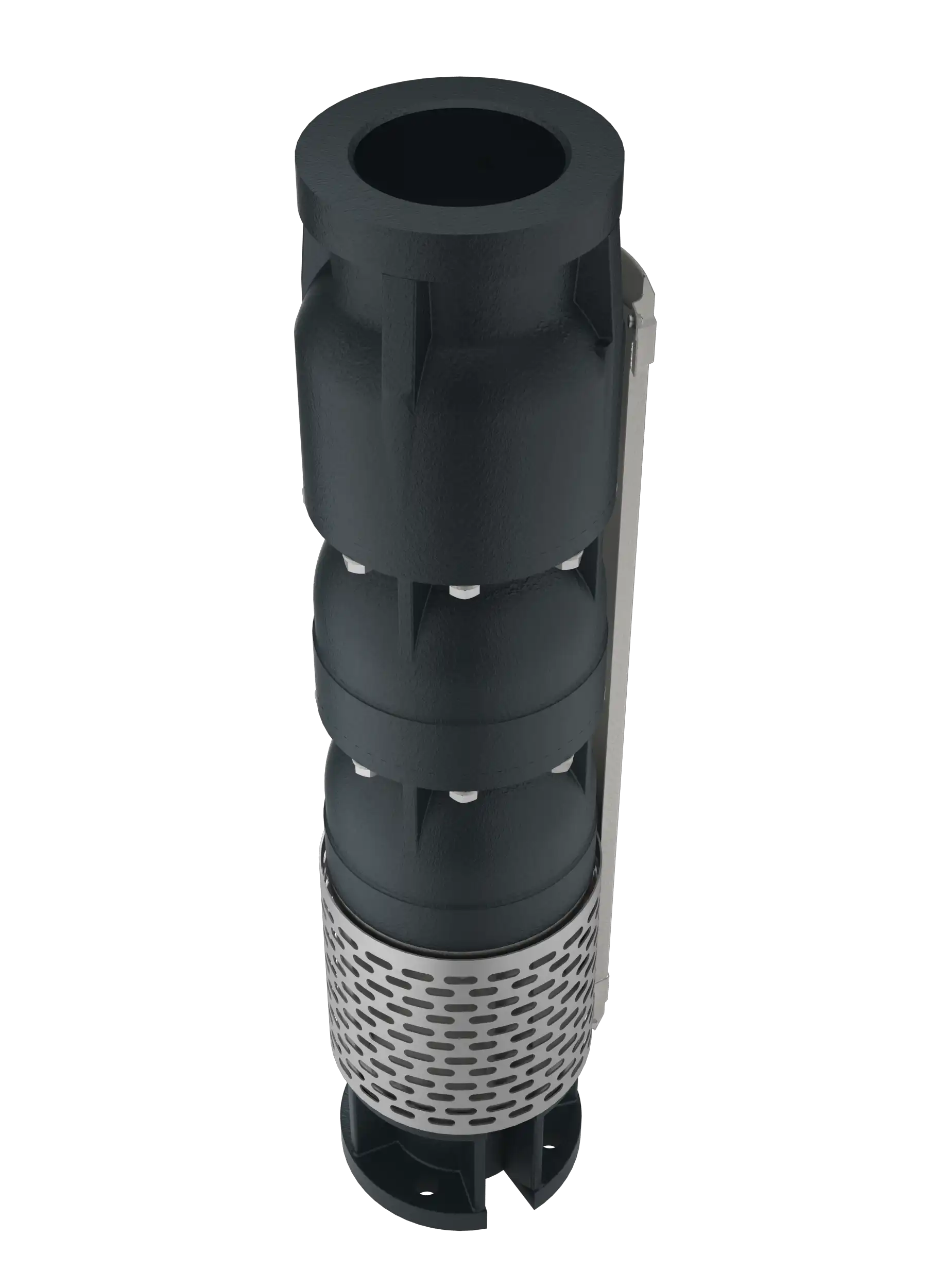

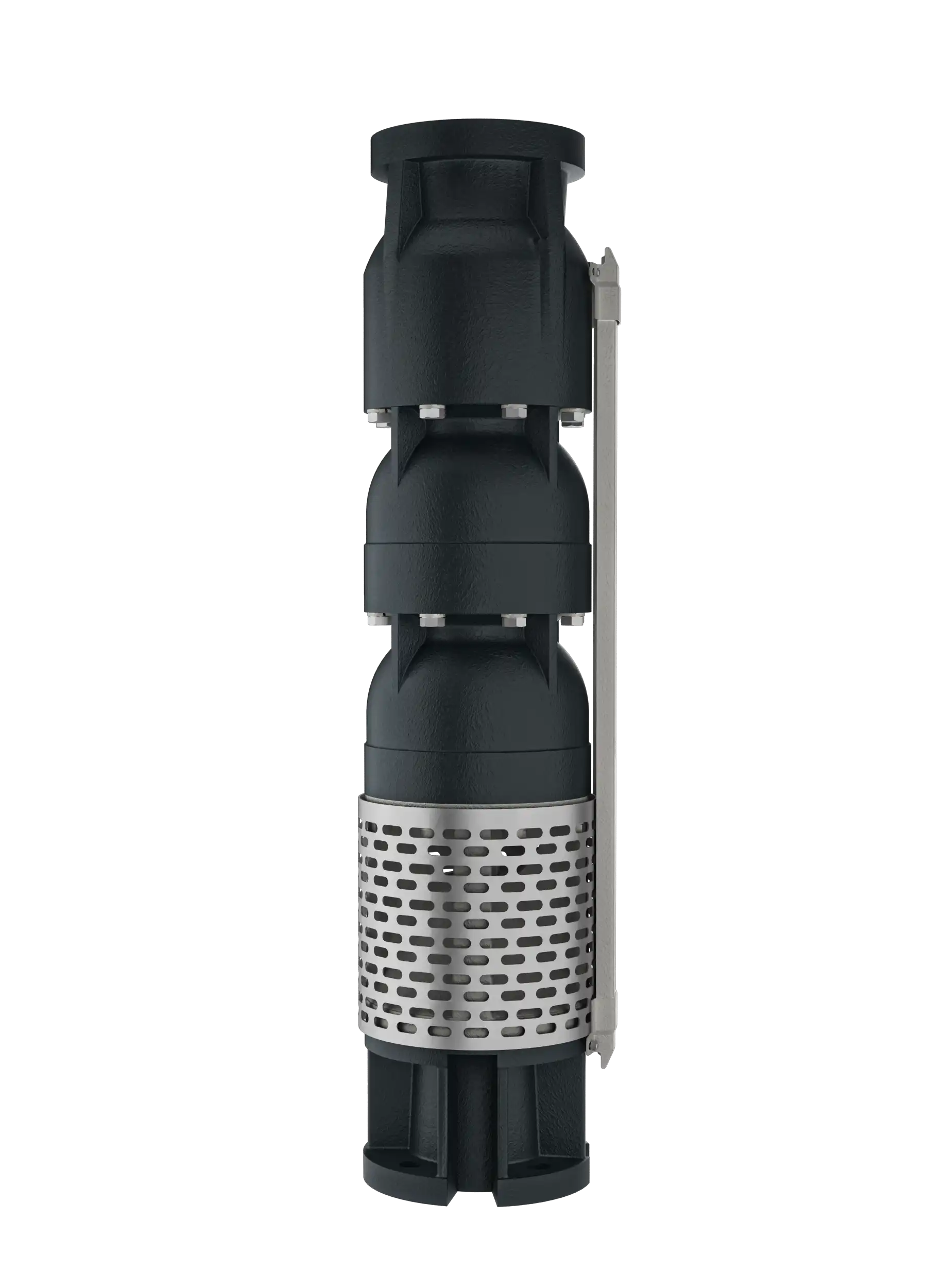

CAST IRON PUMPS

N10 Series
CAST IRON PUMPS

Name: N10 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N10-SERIES
Availability: InStock

N10 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N10 – AR 01	8"	22	30	1735	990	745	191	250	6"	122	76	198
N10 – AR 02	8"	45	60	2175	1190	985	191	250		154	108	262
N10 – AR 03	8"	60	80	2530	1330	1200	191	250		178	139	317
N10 – AR 04	8"	81	110	2875	1460	1415	191	250		212	170	382
N10 – AR 05	8"	110	150	3260	1630	1630	191	250		246	201	447
N10 – AR 06	10"	129	175	3455	1610	1845	231	250		334	232	566
N10 – AR 07	10"	147	200	3800	1740	2060	231	250		370	263	633
N10 – AR 08	10"	166	225	4095	1820	2275	231	250		394	294	688
N10 – AR 09	10"	166	225	4310	1820	2490	231	250		394	325	719
N10 – AR 10	10"	185	250	4525	1820	2705	231	250		408	356	764

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N10 – CR 01	8"	26.5	35	1780	1035	745	191	250	6"	126	76	202
N10 – CR 02	8"	52	70	2260	1275	985	191	250		169	108	277
N10 – CR 03	8"	75	100	2580	1380	1200	191	250		196	139	335
N10 – CR 04	8"	92	125	2940	1525	1415	191	250		222	170	392
N10 – CR 05	10"	129	175	3240	1610	1630	231	250		334	201	535
N10 – CR 06	10"	147	200	3585	1740	1845	231	250		370	232	602
N10 – CR 07	10"	166	225	3880	1820	2060	231	250		394	263	657
N10 – CR 08	10"	185	250	4095	1820	2275	231	250		408	294	702

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N10 – HE 01	8"	26.5	35	1780	1035	745	191	250	6"	126	77	203
N10 – HE 02	8"	52	70	2265	1275	990	191	250		169	110	279
N10 – HE 03	8"	67	90	2565	1355	1210	191	250		188	142	330
N10 – HE 04	8"	92	125	2955	1525	1430	191	250		222	174	396
N10 – HE 05	10"	110	150	3180	1530	1650	231	250		304	206	510
N10 – HE 06	10"	147	200	3610	1740	1870	231	250		370	238	608
N10 – HE 07	10"	166	225	3910	1820	2090	231	250		394	270	664
N10 – HE 08	10"	185	250	4130	1820	2310	231	250		408	302	710

N10-AR Serisi Döküm Pompa / N10-AR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	144	162	180	192	216	234	252	270	290	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	40	45	50	53.3	60	65	70	75	80.6	Inc	mm	Kg
N10 – AR 01	8"	22	30	Basma Yüksekliği / Total Dynamic Head	52	39	35	33	30	26	23	19	15	10	6"	745	76
N10 – AR 02	8"	45	60		103	77	69	65	61	51	45	39	31	21		985	108
N10 – AR 03	8"	60	80		155	116	104	98	91	77	68	58	46	31		1200	139
N10 – AR 04	8" - 10"	81	110		207	155	139	131	121	103	91	77	61	41		1415	170
N10 – AR 05	8" - 10"	110	150		258	193	173	163	152	128	114	97	77	52		1630	201
N10 – AR 06	10"	129	175		310	232	208	196	182	154	136	116	92	62		1845	232
N10 – AR 07	10"	147	200		362	271	243	229	212	180	159	135	107	72		2060	263
N10 – AR 08	10"	166	225		413	309	277	261	243	205	181	155	123	83		2275	294
N10 – AR 09	10"	166	225		465	348	312	294	273	231	204	174	138	93		2490	325
N10 – AR 10	10"	185	250		517	387	347	327	303	257	227	194	154	103		2705	356

N10-CR Serisi Döküm Pompa / N10-CR Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	162	180	192	216	234	252	270	290	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	45	50	53.3	60	65	70	75	80.6	Inc	mm	Kg
N10 – CR 01	8"	26.5	35	Basma Yüksekliği / Total Dynamic Head	48	37	35	34	31	29	26	23	18	6"	745	76
N10 – CR 02	8"	52	70		95	73	71	68	62	57	51	45	36		985	108
N10 – CR 03	8" - 10"	75	100		143	110	106	102	93	86	77	68	54		1200	139
N10 – CR 04	8" - 10"	92	125		191	147	141	136	124	115	103	91	72		1415	170
N10 – CR 05	10"	129	175		238	183	177	170	155	143	128	113	90		1630	201
N10 – CR 06	10"	147	200		286	220	212	204	186	172	154	136	108		1845	232
N10 – CR 07	10"	166	225		334	257	248	238	217	201	180	159	126		2060	263
N10 – CR 08	10"	185	250		381	293	283	272	248	229	205	181	144		2275	294

N10-HE Serisi Döküm Pompa / N10-HE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate									Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	150	180	220	250	280	310	350	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	41.7	50	61.1	69.4	77.8	86.1	97.2	Inc	mm	Kg
N10 – HE 01	8"	26.5	35	Basma Yüksekliği / Total Dynamic Head	43	34	31	28	26	23	20	15	6"	745	77
N10 – HE 02	8"	52	70		85	68	61	57	52	47	41	30		990	110
N10 – HE 03	8"	67	90		128	102	92	85	78	70	61	45		1210	142
N10 – HE 04	8" - 10"	92	125		171	136	123	113	104	93	81	60		1430	174
N10 – HE 05	8" - 10"	110	150		213	170	153	142	130	117	102	75		1650	206
N10 – HE 06	10"	147	200		256	204	184	170	156	140	122	90		1870	238
N10 – HE 07	10"	166	225		299	238	215	198	182	163	142	105		2090	270
N10 – HE 08	10"	185	250		341	272	245	227	208	187	163	120		2310	302

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N10 Series Cast Iron Pump includes
N10 AR / N10 CR / N10 HE
Pumps.
