CAST IRON PUMPS

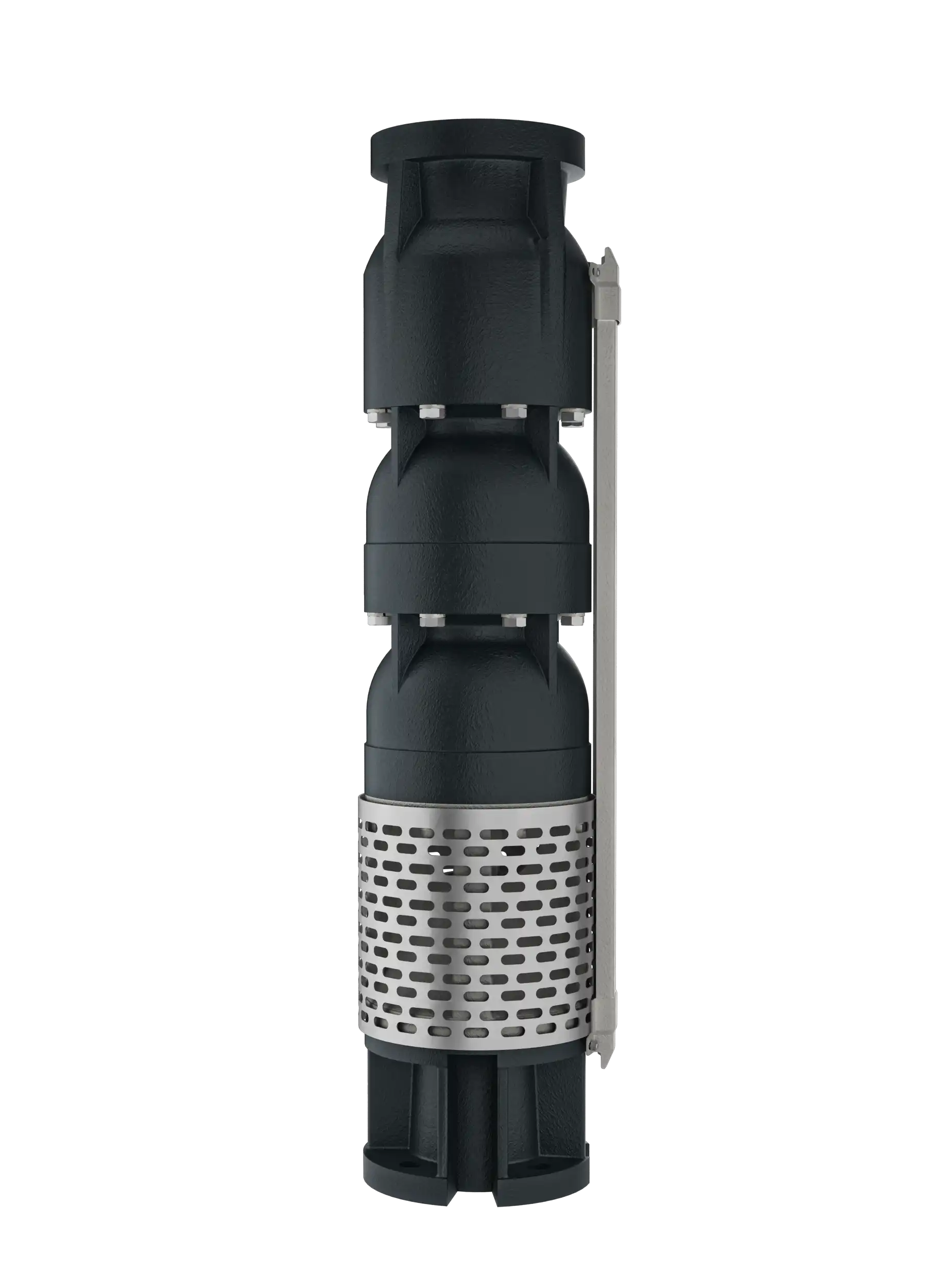

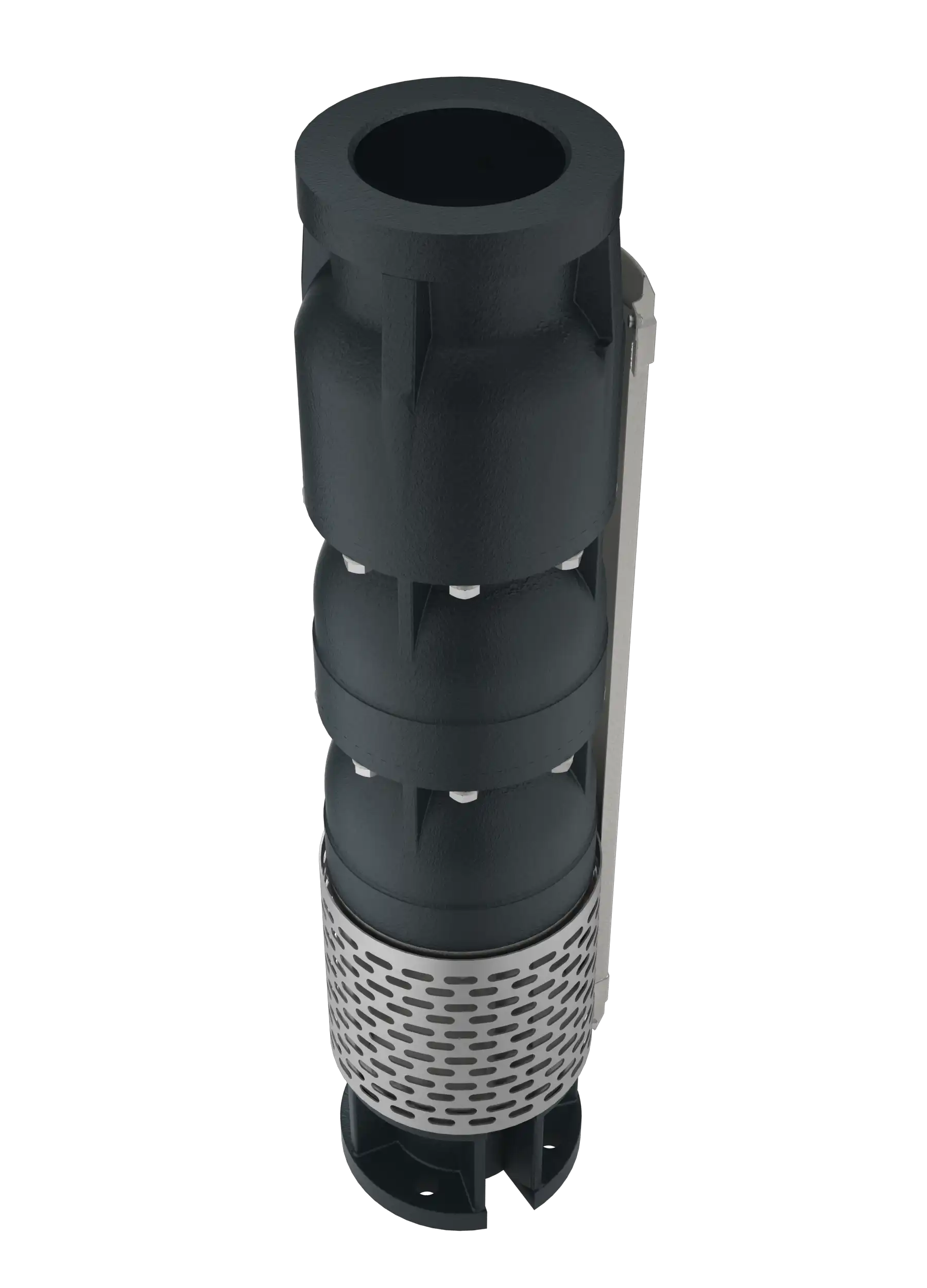

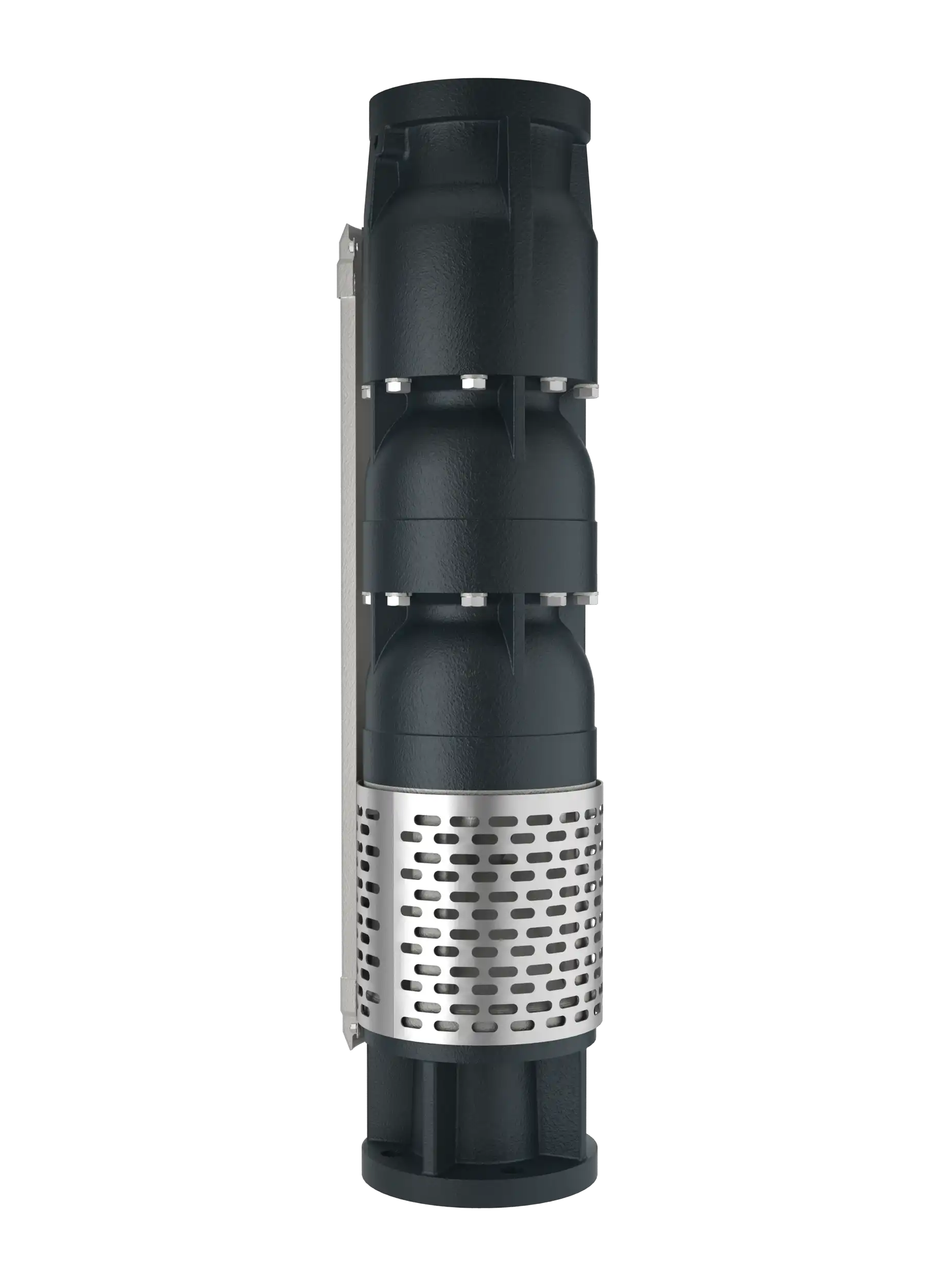

N5 Series
CAST IRON PUMPS

Name: N5 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N5-SERIES
Availability: InStock

N5 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N5 - A 05	4"	1.5	2	1185	465	720	98	122	2" - 2 1/2" - 3"	11.6	21	32.6
N5 - A 06	4"	2.2	3	1310	510	800	98	122		13.1	24	37.1
N5 - A 07	4"	3	4	1425	545	880	98	122		16.3	27	43.3
N5 - A 08	4"	3	4	1505	545	960	98	122		16.3	31	47.3
N5 - A 09	4"	4	5.5	1635	595	1040	98	122		21.1	34	55.1
N5 - A 10	4"	4	5.5	1715	595	1120	98	122		21.1	37	58.1
N5 - A 11	4"	5.5	7.5	1939	739	1200	98	122		26.3	40	66.3
N5 - A 12	4"	5.5	7.5	2019	739	1280	98	122		26.3	43	69.3
N5 - A 13	4"	5.5	7.5	2099	739	1360	98	122		26.3	47	73.3
N5 - A 14	4"	7.5	10	2286	846	1440	98	122		30.4	50	80.4
N5 - A 15	4"	7.5	10	2366	846	1520	98	122		30.4	53	83.4
N5 - A 16	6"	9.3	12.5	2397	797	1600	142	122		54	56	110

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N5 – B 05	4"	1.5	2	1185	465	720	98	122	2" - 2 1/2" - 3"	11.6	21	32.6
N5 – B 06	4"	2.2	3	1310	510	800	98	122		13.1	24	37.1
N5 – B 07	4"	3	4	1425	545	880	98	122		16.3	27	43.3
N5 – B 08	4"	3	4	1505	545	960	98	122		16.3	31	47.3
N5 – B 09	4"	4	5.5	1635	595	1040	98	122		21.1	34	55.1
N5 – B 10	4"	4	5.5	1715	595	1120	98	122		21.1	37	58.1
N5 – B 11	4"	5.5	7.5	1939	739	1200	98	122		26.3	40	66.3
N5 – B 12	4"	5.5	7.5	2019	739	1280	98	122		26.3	43	69.3
N5 – B 13	4"	7.5	10	2206	846	1360	98	122		30.4	47	77.4
N5 – B 14	4"	7.5	10	2286	846	1440	98	122		30.4	50	80.4

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N5 – C 03	4"	1.5	2	1025	465	560	98	122	2" - 2 1/2" - 3"	11.6	15	26.6
N5 – C 04	4"	2.2	3	1150	510	640	98	122		13.1	18	31.1
N5 – C 05	4"	3	4	1265	545	720	98	122		16.3	21	37.3
N5 – C 06	4"	3	4	1345	545	800	98	122		16.3	24	40.3
N5 – C 07	4"	4	5.5	1475	595	880	98	122		21.1	27	48.1
N5 – C 08	4"	4	5.5	1555	595	960	98	122		21.1	31	52.1
N5 – C 09	4"	5.5	7.5	1779	739	1040	98	122		26.3	34	60.3
N5 – C 10	4"	5.5	7.5	1859	739	1120	98	122		26.3	37	63.3
N5 – C 11	4"	7.5	10	2046	846	1200	98	122		30.4	40	70.4
N5 – C 12	4''	7.5	10	2126	846	1280	98	122		50	43	93
N5 – C 13	6"	9.3	12.5	2191	797	1394	142	122		54	47	101
N5 – C 14	6"	9.3	12.5	2271	797	1474	142	122		54	50	104
N5 – C 15	6"	11	15	2404	850	1554	142	122		60	54	114
N5 – C 16	6"	11	15	2484	850	1634	142	122		60	57	117

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N5 – D 03	4"	3	4	1105	545	560	98	122	2" - 2 1/2" - 3"	16.3	15	31.3
N5 – D 04	4"	3	4	1185	545	640	98	122		16.3	18	34.3
N5 – D 05	4"	4	5.5	1315	595	720	98	122		21.1	21	42.1
N5 – D 06	4"	4	5.5	1395	595	800	98	122		21.1	24	45.1
N5 – D 07	4"	5.5	7.5	1619	739	880	98	122		26.3	27	53.3
N5 – D 08	4"	5.5	7.5	1699	739	960	98	122		26.3	31	57.3
N5 – D 09	4"	7.5	10	1886	846	1040	98	122		30.4	34	64.4
N5 – D 10	4"	7.5	10	1966	846	1120	98	122		30.4	37	67.4
N5 – D 11	6"	9.3	12.5	2031	797	1234	142	122		54	41	95
N5 – D 12	6"	9.3	12.5	2111	797	1314	142	122		54	44	98
N5 – D 13	6"	11	15	2244	850	1394	142	122		60	47	107
N5 – D 14	6"	11	15	2324	850	1474	142	122		60	50	110
N5 – D 15	6"	11	15	2404	850	1554	142	122		60	54	114

N5-A Serisi Döküm Pompa / N5-A Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate									Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	8	10	12	15	18	21	24	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	2.2	2.8	3.3	4.2	5	5.8	6.7	Inc	mm	Kg
N5 – A 05	4''	1.5	2	Basma Yüksekliği / Total Dynamic Head	47	38	35	32	29	25	22	17	2" - 2 1/2" - 3"	720	21
N5 – A 06	4''	2.2	3		56	45	42	38	35	30	26	20		800	24
N5 – A 07	4''	3	4		66	53	49	45	41	35	30	24		880	27
N5 – A 08	4''	3	4		75	60	56	51	46	40	34	27		960	31
N5 – A 09	4''	4	5.5		85	68	63	58	52	45	39	31		1040	34
N5 – A 10	4" - 6''	4	5.5		94	75	70	64	58	50	43	34		1120	37
N5 – A 11	4" - 6''	5.5	7.5		103	83	77	70	64	55	47	37		1200	40
N5 – A 12	4" - 6''	5.5	7.5		113	90	84	77	70	60	52	41		1280	43
N5 – A 13	4" - 6''	5.5	7.5		122	98	91	83	75	65	56	44		1360	47
N5 – A 14	4" - 6''	7.5	10		132	105	98	90	81	70	60	48		1440	50
N5 – A 15	4" - 6"	7.5	10		141	113	105	96	87	75	65	51		1520	53
N5 – A 16	6''	9.3	12.5		150	120	112	102	93	80	69	54		1600	56

N5-B Serisi Döküm Pompa / N5-B Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate									Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	10	12	15	18	21	24	27	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	2.8	3.3	4.2	5	5.8	6.7	7.5	Inc	mm	Kg
N5 – B 05	4''	1.5	2	Basma Yüksekliği / Total Dynamic Head	45	33	31	28	25	22	18	11	2" - 2 1/2" - 3"	720	21
N5 – B 06	4''	2.2	3		54	40	37	34	31	26	21	13		800	24
N5 – B 07	4''	3	4		63	46	43	39	36	31	25	15		880	27
N5 – B 08	4''	3	4		72	53	49	45	41	35	28	17		960	31
N5 – B 09	4" - 6''	4	5.5		81	60	56	51	46	39	32	20		1040	34
N5 – B 10	4" - 6''	4	5.5		90	66	62	56	51	44	35	22		1120	37
N5 – B 11	4" - 6''	5.5	7.5		99	73	68	62	56	48	39	24		1200	40
N5 – B 12	4" - 6''	5.5	7.5		108	80	74	68	61	52	43	26		1280	43
N5 – B 13	4" - 6''	7.5	10		117	86	80	73	66	57	46	28		1360	47
N5 – B 14	4" - 6''	7.5	10		126	93	87	79	71	61	50	31		1440	50

N5-C Serisi Döküm Pompa / N5-C Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate									Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	12	15	18	21	24	27	30	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	3.3	4.2	5	5.8	6.7	7.5	8.3	Inc	mm	Kg
N5 – C 03	4"	1.5	2	Basma Yüksekliği / Total Dynamic Head	26	21	20	18	17	15	14	13	2" - 2 1/2" - 3"	560	15
N5 – C 04	4"	2.2	3		34	28	27	24	23	20	19	17		640	18
N5 – C 05	4''	3	4		43	35	33	30	28	25	23	21		720	21
N5 – C 06	4''	3	4		51	43	40	37	34	31	28	25		800	24
N5 – C 07	4" - 6''	4	5.5		60	50	46	43	39	36	32	29		880	27
N5 – C 08	4" - 6''	4	5.5		68	57	53	49	45	41	37	33		960	31
N5 – C 09	4" - 6''	5.5	7.5		76	64	60	55	51	46	42	38		1040	34
N5 – C 10	4" - 6''	5.5	7.5		85	71	66	61	56	51	46	42		1120	37
N5 – C 11	4" - 6''	7.5	10		94	78	73	67	62	56	51	46		1200	40
N5 – C 12	4" - 6''	7.5	10		103	85	80	73	68	61	56	50		1280	43
N5 – C 13	6''	9.3	12.5		111	92	86	79	73	66	60	54		1394	47
N5 – C 14	6"	9.3	12.5		120	99	93	85	79	71	65	59		1474	50
N5 – C 15	6"	11	15		128	106	100	91	85	76	70	63		1554	54
N5 – C 16	6"	11	15		137	113	106	97	90	81	74	67		1634	57

N5-D Serisi Döküm Pompa / N5-D Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate									Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	15	18	21	24	27	30	33	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	4.2	5	5.8	6.7	7.5	8.3	9.2	Inc	mm	Kg
N5 – D 03	4"	3	4	Basma Yüksekliği / Total Dynamic Head	27	21	19	18	17	15	14	13	2" - 2 1/2" - 3"	560	15
N5 – D 04	4''	3	4		36	28	26	24	22	20	19	17		640	18
N5 – D 05	4" - 6''	4	5.5		46	35	32	30	28	26	23	22		720	21
N5 – D 06	4" - 6''	4	5.5		55	42	39	36	33	31	28	26		800	24
N5 – D 07	4" - 6''	5.5	7.5		64	49	45	42	39	36	33	30		880	27
N5 – D 08	4" - 6''	5.5	7.5		73	56	52	48	44	41	37	35		960	31
N5 – D 09	4" - 6''	7.5	10		82	63	58	54	50	46	42	39		1040	34
N5 – D 10	4" - 6''	7.5	10		91	70	64	60	56	51	47	43		1120	37
N5 – D 11	6"	9.3	12.5		100	77	71	66	61	56	51	48		1264	41
N5 – D 12	6"	9.3	12.5		109	84	77	72	67	61	56	52		1314	44
N5 – D 13	6"	11	15		118	91	84	78	72	66	61	56		1394	47
N5 – D 14	6"	11	15		128	98	90	84	78	72	65	61		1474	50
N5 – D 15	6"	11	15		137	105	97	90	83	77	70	65		1554	54

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N5 Series Cast Iron Pump includes
N5 A / N5 B / N5 C / N5 D
Pumps.
