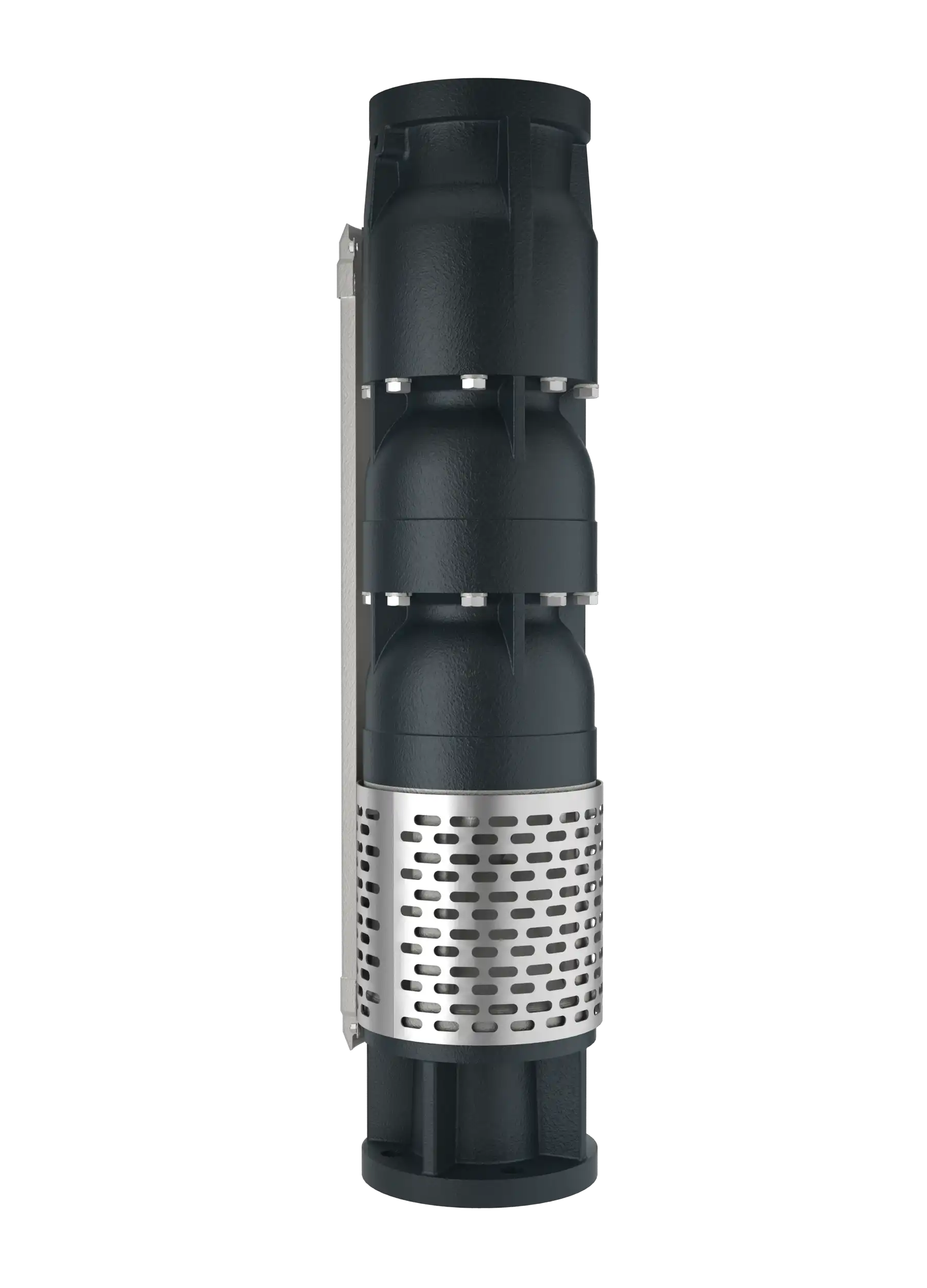

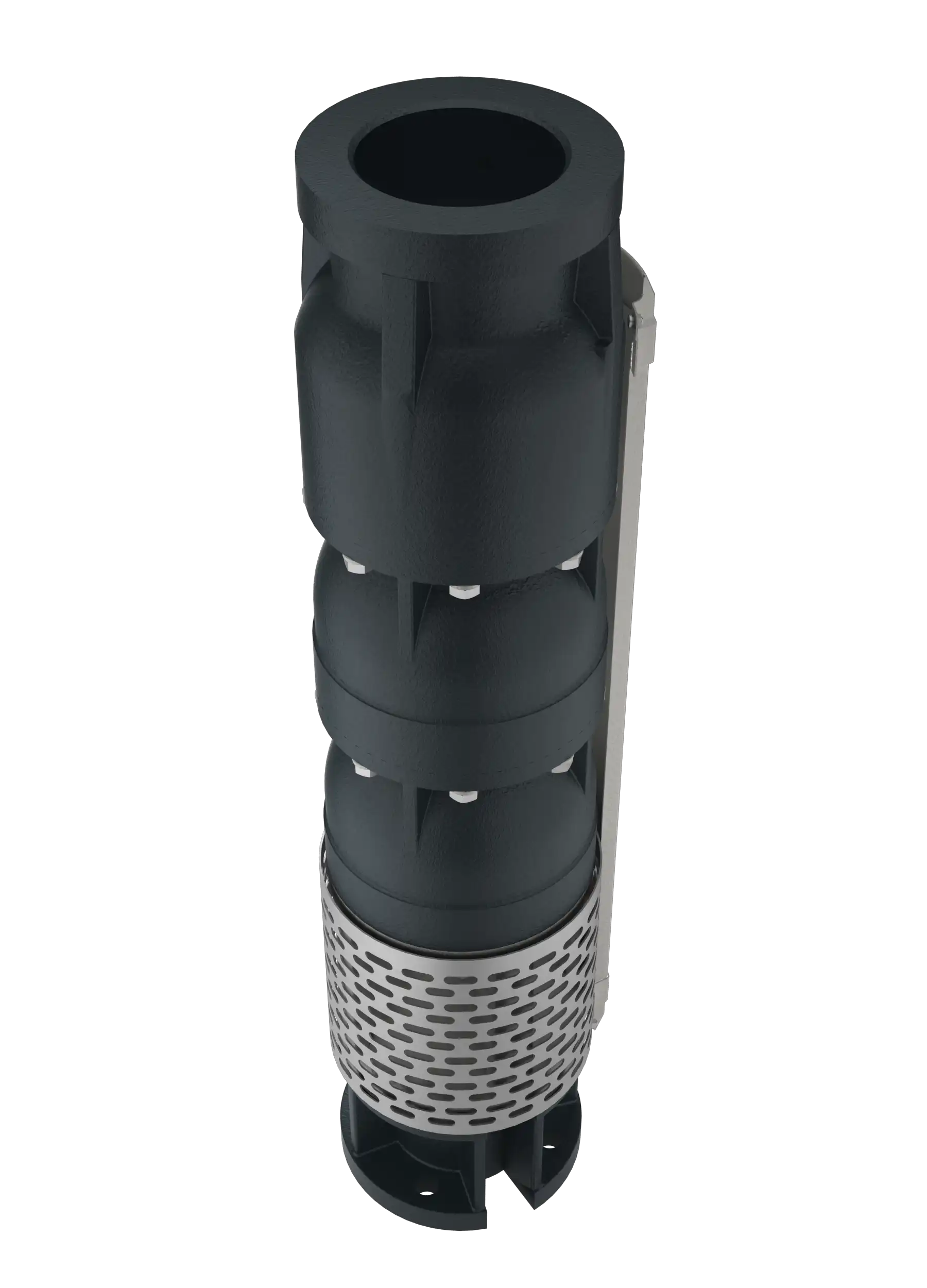

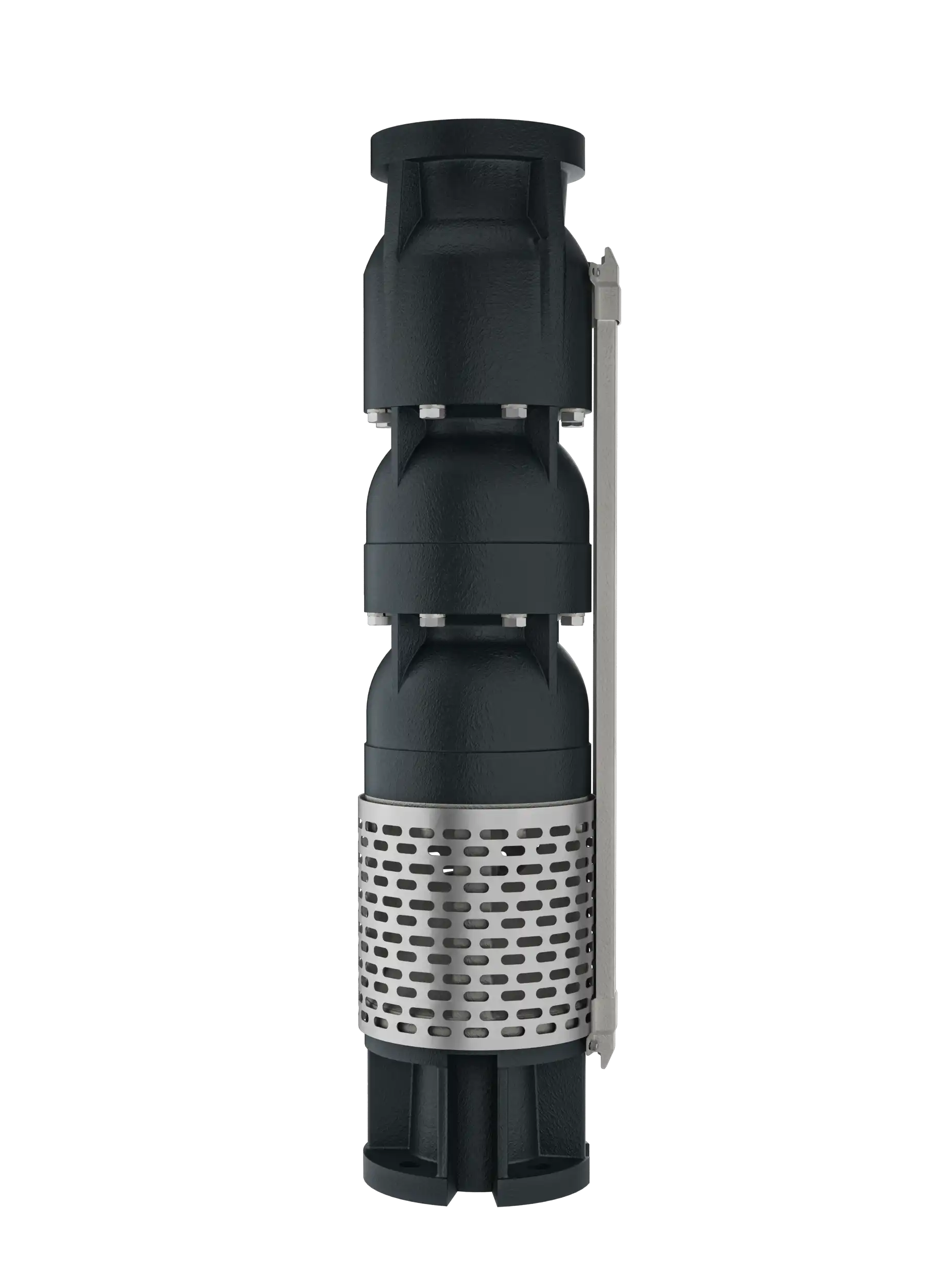

CAST IRON PUMPS

N8 Series
CAST IRON PUMPS

Name: N8 Series
Brand: Nempa Pompa Sistemleri
SKU: NEMPA-N8-SERIES
Availability: InStock

N8 Series

TECHNICAL SPECS

PRODUCT DOCUMENTS

Diffuser Cast Iron | GG-25
Impeller Bronze / Cast Iron | GG-25
Shaft Stainless Steel | AISI 431
Coupling Stainless Steel | AISI 431
Strainer Paslanmaz Çelik | AISI 431
Voltage 380/415 V
Frequency 50 Hz
Max. Water Temperature Max. 30°C
Max. Sand Content 50 g/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 8130/01	6"	7.5	10	1407	757	650	142	202	5" - 6"	50	39	89
N8 8130/02	6"	15	20	1767	972	795	142	202		70	50	120
N8 8130/03	6"	22	30	2045	1105	940	142	202		88	61	149
N8 8130/04	8"	30	40	2130	1045	1085	191	202		130	72	202
N8 8130/05	8"	37	50	2335	1105	1230	191	202		138	83	221
N8 8130/06	8"	45	60	2565	1190	1375	191	202		154	94	248
N8 8130/07	8"	55	75	2795	1275	1520	191	202		172	105	277
N8 8130/08	8"	60	80	2995	1330	1665	191	202		178	116	294
N8 8130/09	8''	67	90	3165	1355	1810	191	202		188	127	315
N8 8130/10	8"	75	100	3335	1380	1955	191	202		196	138	334
N8 8130/11	8"	81	110	3560	1460	2100	191	202		212	149	361
N8 8130/12	8"	92	125	3770	1525	2245	191	202		222	160	382
N8 8130/13	8"	92	125	3915	1525	2390	191	202		222	171	393
N8 8130/14	10"	110	150	4065	1530	2535	231	202		304	182	486
N8 8130/15	10"	110	150	4210	1530	2680	231	202		304	193	497

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 8131/01	6"	7.5	10	1407	757	650	142	202	5" - 6"	50	41	91
N8 8131/02	6"	15	20	1767	972	795	142	202		70	52	122
N8 8131/03	6"	22	30	2045	1105	940	142	202		88	63	151
N8 8131/04	8"	30	40	2130	1045	1085	191	202		130	74	204
N8 8131/05	8"	37	50	2335	1105	1230	191	202		138	85	223
N8 8131/06	8"	45	60	2565	1190	1375	191	202		154	96	250
N8 8131/07	8"	55	75	2795	1275	1520	191	202		172	107	279
N8 8131/08	8"	60	80	2995	1330	1665	191	202		178	118	296
N8 8131/09	8''	67	90	3165	1355	1810	191	202		188	129	317
N8 8131/10	8"	75	100	3335	1380	1955	191	202		196	140	336
N8 8131/11	8"	81	110	3560	1460	2100	191	202		212	151	363
N8 8131/12	8"	92	125	3770	1525	2245	191	202		222	162	384
N8 8131/13	8"	92	125	3915	1525	2390	191	202		222	173	395
N8 8131/14	10"	110	150	4065	1530	2535	231	202		304	184	488
N8 8131/15	10"	110	150	4210	1530	2680	231	202		304	195	499

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – AA 01	6"	7.5	10	1411	757	654	142	200	4" - 5" - 6"	50	47	97
N8 – AA 02	6"	11	15	1670	850	820	142	200		60	63	123
N8 – AA 03	6"	15	20	1958	972	986	142	200		70	78	148
N8 – AA 04	8"	22	30	2142	990	1152	191	200		122	93	215
N8 – AA 05	8"	26.5	35	2353	1035	1318	191	200		126	109	235
N8 – AA 06	8"	30	40	2554	1045	1509	191	200		130	125	255
N8 – AA 07	8"	37	50	2780	1105	1675	191	200		138	140	278
N8 – AA 08	8"	45	60	3031	1190	1841	191	200		154	155	309
N8 – AA 09	8"	52	70	3282	1275	2007	191	200		169	171	340
N8 – AA 10	8"	55	75	3448	1275	2173	191	200		172	186	358
N8 – AA 11	8"	60	80	3669	1330	2339	191	200		178	201	379
N8 – AA 12	8"	67	90	3860	1355	2505	191	200		188	217	405

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – ARL 01	6"	7.5	10	1411	757	654	142	200	4" - 5" - 6"	50	47	97
N8 – ARL 02	6"	15	20	1792	972	820	142	200		70	63	133
N8 – ARL 03	6"	22	30	2091	1105	986	142	200		88	78	166
N8 – ARL 04	8"	30	40	2222	1045	1177	191	200		130	94	224
N8 – ARL 05	8"	37	50	2448	1105	1343	191	200		138	110	248
N8 – ARL 06	8"	45	60	2699	1190	1509	191	200		154	125	279
N8 – ARL 07	8"	52	70	2950	1275	1675	191	200		169	140	309
N8 – ARL 08	8"	55	75	3116	1275	1841	191	200		172	155	327
N8 – ARL 09	8"	60	80	3337	1330	2007	191	200		178	171	349
N8 – ARL 10	8"	67	90	3528	1355	2173	191	200		188	186	374
N8 – ARL 11	8"	75	100	3719	1380	2339	191	200		196	201	397
N8 – ARL 12	8"	81	110	3965	1460	2505	191	200		212	217	429
N8 – ARL 13	8"	92	125	4196	1525	2671	191	200		222	232	454
N8 – ARL 14	8"	92	125	4362	1525	2837	191	200		222	247	469
N8 – ARL 15	8"	110	150	4633	1630	3003	191	200		246	263	509

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – ARB 01	6"	9.3	12.5	1451	797	654	142	200	4" - 5" - 6"	54	47	101
N8 – ARB 02	6"	18.5	25	1825	1005	820	142	200		78	63	141
N8 – ARB 03	8"	26.5	35	2021	1035	986	191	200		126	78	204
N8 – ARB 04	8"	37	50	2282	1105	1177	191	200		138	94	232
N8 – ARB 05	8"	45	60	2533	1190	1343	191	200		154	110	264
N8 – ARB 06	8"	52	70	2784	1275	1509	191	200		169	125	294
N8 – ARB 07	8"	55	75	2950	1275	1675	191	200		172	140	312
N8 – ARB 08	8"	60	80	3171	1330	1841	191	200		178	155	333
N8 – ARB 09	8"	67	90	3362	1355	2007	191	200		188	171	359
N8 – ARB 10	8"	75	100	3553	1380	2173	191	200		196	186	382
N8 – ARB 11	8"	81	110	3799	1460	2339	191	200		212	201	413
N8 – ARB 12	8"	92	125	4030	1525	2505	191	200		222	217	439
N8 – ARB 13	8"	110	150	4301	1630	2671	191	200		246	232	478
N8 – ARB 14	8"	110	150	4467	1630	2837	191	200		246	247	493
N8 – ARB 15	8"	110	150	4633	1630	3003	191	200		246	262	508

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – (W2)SE 01	6"	7.5	10	1411	757	654	142	200	4" - 5" - 6"	50	48	98
N8 – (W2)SE 02	6"	15	20	1792	972	820	142	200		70	63	133
N8 – (W2)SE 03	8"	22	30	1976	990	986	191	200		122	78	200
N8 – (W2)SE 04	8"	30	40	2222	1045	1177	191	200		130	93	223
N8 – (W2)SE 05	8"	37	50	2448	1105	1343	191	200		138	110	248
N8 – (W2)SE 06	8"	37	50	2614	1105	1509	191	200		138	125	263
N8 – (W2)SE 07	8"	45	60	2865	1190	1675	191	200		154	140	294
N8 – (W2)SE 08	8"	52	70	3116	1275	1841	191	200		169	155	324
N8 – (W2)SE 09	8"	55	75	3282	1275	2007	191	200		172	171	343
N8 – (W2)SE 10	8"	60	80	3503	1330	2173	191	200		178	186	364
N8 – (W2)SE 11	8"	67	90	3694	1355	2339	191	200		188	201	389
N8 – (W2)SE 12	8"	75	100	3885	1380	2505	191	200		196	217	413
N8 – (W2)SE 13	8"	81	110	4131	1460	2671	191	200		212	232	444
N8 – (W2)SE 14	8"	81	110	4297	1460	2837	191	200		212	247	459

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – HE 01	6"	9.3	12.5	1451	797	654	142	200	4" - 5" - 6"	54	47	101
N8 – HE 02	6"	18.5	25	1825	1005	820	142	200		78	63	141
N8 – HE 03	8"	26.5	35	2021	1035	986	191	200		126	78	204
N8 – HE 04	8"	37	50	2282	1105	1177	191	200		138	94	232
N8 – HE 05	8"	45	60	2533	1190	1343	191	200		154	110	264
N8 – HE 06	8"	52	70	2784	1275	1509	191	200		169	125	294
N8 – HE 07	8"	60	80	3005	1330	1675	191	200		178	140	318
N8 – HE 08	8"	67	90	3196	1355	1841	191	200		188	155	343
N8 – HE 09	8''	75	100	3387	1380	2007	191	200		196	171	367
N8 – HE 10	8"	81	110	3633	1460	2173	191	200		212	186	398

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	kW	HP	mm					Inc	Kg
N8 – (W2)HE 01	6"	7.5	10	1411	757	654	142	200	4" - 5" - 6"	50	47	97
N8 – (W2)HE 02	6"	15	20	1792	972	820	142	200		70	63	133
N8 – (W2)HE 03	8"	22	30	1976	990	986	191	200		122	78	200
N8 – (W2)HE 04	8"	30	40	2197	1045	1152	191	200		130	93	223
N8 – (W2)HE 05	8"	37	50	2448	1105	1343	191	200		138	110	248
N8 – (W2)HE 06	8"	45	60	2699	1190	1509	191	200		154	125	279
N8 – (W2)HE 07	8"	52	70	2950	1275	1675	191	200		169	140	309
N8 – (W2)HE 08	8"	60	80	3171	1330	1841	191	200		178	155	333
N8 – (W2)HE 09	8''	67	90	3362	1355	2007	191	200		188	171	359
N8 – (W2)HE 10	8"	75	100	3553	1380	2173	191	200		196	186	382

NSP N8 8130 SERİSİ DÖKÜM GÖVDELİ PASLANMAZ FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8130 SERIES CAST IRON DIFFUSER STAINLESS STEEL IMPELLER SUBMERSİBLE PUMPS

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate													Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	90	99	108	117	126	135	144	153	162	171	180	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	25	27.5	30	32.5	35	37.5	40	42.5	45	47.5	50	Inc	mm	Kg
N8 8130/01	6"	7.5	10	Basma Yüksekliği / Total Dynamic Head	23	18	17	17	16	15	14	13	13	11	10	8	5" - 6''	650	41
N8 8130/02	6"	15	20		46	35	35	34	32	31	29	27	25	22	20	17		795	52
N8 8130/03	6" - 8"	22	30		69	53	52	50	48	46	43	40	38	33	29	25		940	63
N8 8130/04	6" - 8"	30	40		92	71	69	67	65	62	58	54	50	45	39	33		1085	74
N8 8130/05	6" - 8"	37	50		115	88	86	84	81	77	72	67	63	56	49	41		1230	85
N8 8130/06	8"	45	60		138	106	104	101	97	92	86	80	75	67	59	50		1375	96
N8 8130/07	8"	55	75		161	123	121	117	113	108	101	94	88	78	68	58		1520	107
N8 8130/08	8"	60	80		184	141	138	134	129	1123	115	107	100	89	78	66		1665	118
N8 8130/09	8"	67	90		207	159	155	151	145	138	129	120	113	100	88	74		1810	129
N8 8130/10	8" - 10"	75	100		230	176	173	168	161	154	144	134	125	111	98	83		1955	140
N8 8130/11	8" - 10"	81	110		253	194	190	184	177	169	158	147	138	122	107	91		2100	151
N8 8130/12	8" - 10"	92	125		276	212	207	201	194	185	173	161	150	134	117	99		2245	162
N8 8130/13	8" - 10"	92	125		299	229	224	218	210	200	187	174	163	145	127	107		2390	173
N8 8130/14	8" - 10"	110	150		322	247	242	235	226	215	201	187	175	156	137	116		2535	184
N8 8130/15	8" - 10"	110	150		345	264	259	251	242	231	216	201	188	167	146	124		2680	195

NSP N8 8131 SERİSİ DÖKÜM GÖVDELİ NORİL FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8131 SERIES CAST IRON DIFFUSER NORYL STEEL IMPELLER SUBMERSİBLE PUMPS

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate													Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	90	99	108	117	126	135	144	153	162	171	180	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	25	27.5	30	32.5	35	37.5	40	42.5	45	47.5	50	Inc	mm	Kg
N8 8131/01	6"	7.5	10	Basma Yüksekliği / Total Dynamic Head	22	17	17	16	15	15	14	13	12	10	9	7	5" - 6''	650	39
N8 8131/02	6"	15	20		44	35	34	32	31	29	28	26	23	21	18	15		795	50
N8 8131/03	6" - 8"	22	30		66	52	51	48	46	44	41	38	35	31	27	22		940	61
N8 8131/04	6" - 8"	30	40		88	70	68	65	62	59	55	51	47	41	36	29		1085	72
N8 8131/05	6" - 8"	37	50		109	87	84	81	77	73	69	64	58	51	44	36		1230	83
N8 8131/06	8"	45	60		131	104	101	97	92	88	83	77	70	62	53	44		1375	94
N8 8131/07	8"	55	75		153	122	118	113	108	102	96	89	81	72	62	51		1520	105
N8 8131/08	8"	60	80		175	139	135	129	123	117	110	102	93	82	71	58		1665	116
N8 8131/09	8"	67	90		197	156	152	146	138	132	124	115	105	92	80	65		1810	127
N8 8131/10	8" - 10"	75	100		219	174	169	161	154	146	138	128	116	103	89	73		1955	138
N8 8131/11	8" - 10"	81	110		241	191	186	177	169	161	151	140	128	113	98	80		2100	149
N8 8131/12	8" - 10"	92	125		263	209	203	194	185	176	165	153	140	123	107	87		2245	160
N8 8131/13	8" - 10"	92	125		284	226	219	210	200	190	179	166	151	133	115	94		2390	171
N8 8131/14	8" - 10"	110	150		306	245	236	226	215	205	193	179	162	144	124	102		2535	182
N8 8131/15	8" - 10"	110	150		328	261	253	242	231	219	206	191	174	154	133	109		2680	193

N8-AA Serisi Döküm Pompa / N8-AA Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	54	66	75	84	90	105	115	123	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	15	18.3	20.8	23.3	25	29.2	31.9	34.2	Inc	mm	Kg
N8 – AA 01	6''	7.5	10	Basma Yüksekliği / Total Dynamic Head	26	20	19	17	16	15	12	10	7	4" - 5" - 6"	654	47
N8 – AA 02	6"	11	15		52	40	37	35	32	30	24	20	14		820	63
N8 – AA 03	6"	15	20		78	60	56	52	47	44	36	29	21		986	78
N8 – AA 04	6" - 8"	22	30		104	80	75	69	63	59	47.5	39	28		1152	93
N8 – AA 05	6" - 8"	26.5	35		130	100	93	86	79	74	59	49	35		1318	109
N8 – AA 06	6" - 8"	30	40		156	120	112	104	95	89	71	59	42		1509	125
N8 – AA 07	6" - 8"	37	50		182	140	130	121	110	103	84	68	49		1675	140
N8 – AA 08	8"	45	60		208	160	149	138	126	118	95	78	56		1841	155
N8 – AA 09	8"	52	70		234	180	168	155	142	133	107	88	63		2007	171
N8 – AA 10	8"	55	75		260	200	186	173	158	148	119	98	70		2173	186
N8 – AA 11	8"	60	80		286	220	205	190	173	162	131	107	77		2339	201
N8 – AA 12	8"	67	90		312	240	224	207	189	177	143	117	84		2505	217

N8-ARL Serisi Döküm Pompa / N8-ARL Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	60	75	90	100	110	120	130	140	150	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	16.7	20.8	25	27.8	30.6	33	36.1	38.9	41.7	Inc	mm	Kg
N8 – ARL 01	6''	7.5	10	Basma Yüksekliği / Total Dynamic Head	25	22	21	19	18	17	16	14	13	11	4" - 5" - 6"	654	47
N8 – ARL 02	6"	15	20		51	44	41	39	37	34	31	29	26	23		820	63
N8 – ARL 03	6" - 8"	22	30		77	66	62	58	55	51	47	43	39	34		986	78
N8 – ARL 04	6" - 8"	30	40		103	88	82	77	73	69	63	57	51	46		1177	94
N8 – ARL 05	6" - 8"	37	50		129	110	103	96	91	86	79	71	64	57		1343	110
N8 – ARL 06	8"	45	60		154	132	123	116	110	103	94	86	77	69		1509	125
N8 – ARL 07	8"	52	70		180	154	144	135	128	120	110	100	90	80		1675	140
N8 – ARL 08	8"	55	75		206	176	165	154	146	137	126	114	103	91		1841	155
N8 – ARL 09	8"	60	80		231	198	185	174	165	154	141	129	116	103		2007	171
N8 – ARL 10	8"	67	90		257	220	206	193	183	171	157	143	129	114		2173	186
N8 – ARL 11	8" - 10"	75	100		283	242	226	212	201	189	173	157	141	126		2339	201
N8 – ARL 12	8" - 10"	81	110		309	264	247	231	219	206	189	171	154	137		2505	217
N8 – ARL 13	8" - 10"	92	125		334	286	267	251	238	223	204	186	167	149		2671	232
N8 – ARL 14	8" - 10"	92	125		360	308	288	270	256	240	220	200	180	160		2837	247
N8 – ARL 15	8" - 10"	110	150		396	330	309	289	274	257	236	214	193	171		3003	263

N8-ARB Serisi Döküm Pompa / N8-ARB Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	60	72	84	96	108	120	135	150	165	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	17	20	23.3	26.7	30	33.3	37.5	42	45.8	Inc	mm	Kg
N8 – ARB 01	6''	9.3	12.5	Basma Yüksekliği / Total Dynamic Head	26	22	22	20	19	18	16	14	11	9	4" - 5" - 6"	654	47
N8 – ARB 02	6"	18.5	25		53	45	43	40	39	35	32	27	21	17		820	63
N8 – ARB 03	6" - 8"	26.5	35		79	67	65	60	58	53	48	41	32	26		986	78
N8 – ARB 04	6" - 8"	37	50		106	90	86	81	77	71	64	54	43	34		1177	94
N8 – ARB 05	8"	45	60		132	112	108	101	96	89	80	68	54	43		1343	110
N8 – ARB 06	8"	52	70		159	135	129	121	116	106	96	81	64	51		1509	125
N8 – ARB 07	8"	55	75		185	157	151	141	135	124	112	95	75	60		1675	140
N8 – ARB 08	8"	60	80		211	179	173	161	154	142	128	109	86	69		1841	155
N8 – ARB 09	8"	67	90		238	202	194	181	174	159	144	122	96	77		2007	171
N8 – ARB 10	8" - 10"	75	100		264	224	216	201	193	177	160	136	107	86		2173	186
N8 – ARB 11	8" - 10"	81	110		291	247	237	222	212	195	176	149	118	94		2339	201
N8 – ARB 12	8" - 10"	92	125		317	269	259	242	231	213	192	163	129	103		2505	217
N8 – ARB 13	8" - 10"	110	150		344	292	280	262	251	230	208	176	139	111		2671	232
N8 – ARB 14	8" - 10"	110	150		370	314	302	282	270	248	224	190	150	120		2837	247
N8 – ARB 15	8" - 10"	110	150		396	336	324	302	289	266	240	204	161	129		3003	262

N8-SE Serisi Döküm Pompa / N8-SE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	60	80	90	100	110	120	130	145	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	16.7	22.2	25	27.8	31	33.3	36.1	40	Inc	mm	Kg
N8 – (W2)SE 01	6"	7.5	10	Basma Yüksekliği / Total Dynamic Head	27	21	19	18	15	14	12	9	5	4" - 5" - 6"	654	48
N8 – (W2)SE 02	6"	15	20		54	43	38	36	29	27	24	19	10		820	63
N8 – (W2)SE 03	6" - 8"	22	30		81	54	57	54	44	41	36	28	15		986	78
N8 – (W2)SE 04	6" - 8"	30	40		107	86	79	71	59	55	49	38	20		1177	93
N8 – (W2)SE 05	6" - 8"	37	50		134	107	95	89	74	69	61	47	25		1343	110
N8 – (W2)SE 06	6" - 8"	37	50		161	129	114	107	88	82	73	57	30		1509	125
N8 – (W2)SE 07	8"	40	60		188	150	133	125	103	96	85	66	35		1675	140
N8 – (W2)SE 08	8"	52	70		215	171	152	143	118	110	97	75	40		1841	155
N8 – (W2)SE 09	8"	55	75		242	193	171	161	132	123	109	85	45		2007	171
N8 – (W2)SE 10	8"	60	80		269	214	190	179	147	137	121	94	50		2173	186
N8 – (W2)SE 11	8"	67	90		295	236	209	196	162	151	134	104	55		2339	201
N8 – (W2)SE 12	8" - 10"	75	100		322	257	228	214	177	165	146	113	60		2505	217
N8 – (W2)SE 13	8" - 10"	81	110		349	279	247	232	191	178	158	123	65		2671	232
N8 – (W2)SE 14	8" - 10"	81	110		376	300	266	250	206	192	170	132	70		2837	247

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	100	125	140	150	160	175	200	225	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	27.8	34.7	38.9	41.7	44.4	48.6	55.6	62.5	Inc	mm	Kg
N8 – HE 01	6''	9.3	12.5	Basma Yüksekliği / Total Dynamic Head	25	18	16	16	15	14	13	10	7	4" - 5" - 6"	654	47
N8 – HE 02	6''	18.5	25		49	36	33	32	30	28	25	20	14		820	63
N8 – HE 03	6'' - 8''	26.5	35		74	54	49	48	45	42	38	330	21		986	78
N8 – HE 04	6'' - 8''	37	50		98	71	65	63	59	55	50	40	28		1177	94
N8 – HE 05	8''	45	60		123	89	82	79	74	69	63	50	35		1343	110
N8 – HE 06	8''	52	70		147	107	98	95	89	83	75	60	42		1509	125
N8 – HE 07	8''	60	80		172	125	114	111	104	97	88	70	49		1675	140
N8 – HE 08	8''	67	90		196	143	131	127	119	111	100	80	56		1841	155
N8 – HE 09	8'' - 10''	75	100		221	161	147	143	134	125	113	90	63		2007	171
N8 – HE 10	8'' - 10''	81	110		245	178	163	158	148	138	125	100	70		2173	186

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate										Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	100	125	140	150	160	175	200	225	Çıkış / Outlet	Boy / Length	Ağırlık / Weight
	Inc	kW	HP	lt/sn	0	27.8	34.7	38.9	41.7	44.4	49	55.6	62.5	Inc	mm	Kg
N8 – (W2)HE 01	6''	7.5	10	Basma Yüksekliği / Total Dynamic Head	22	16	15	14	13	12	11	8	5	4" - 5" - 6"	654	47
N8 – (W2)HE 02	6''	15	20		43	32	29	27	26	24	22	16	9		820	63
N8 – (W2)HE 03	6'' - 8''	22	30		65	48	44	41	39	37	33	24	14		986	78
N8 – (W2)HE 04	6'' - 8''	30	40		87	64	59	55	52	49	43	32	18		1152	93
N8 – (W2)HE 05	6'' - 8''	37	50		108	80	73	69	65	61	54	40	23		1343	110
N8 – (W2)HE 06	8''	45	60		130	96	88	82	78	73	65	47	27		1509	125
N8 – (W2)HE 07	8''	52	70		152	112	103	96	91	85	76	55	32		1675	140
N8 – (W2)HE 08	8''	60	80		173	128	117	109	104	97	87	63	36		1841	155
N8 – (W2)HE 09	8''	67	90		195	144	132	123	117	110	98	71	41		2007	171
N8 – (W2)HE 10	8'' - 10''	75	100		217	160	147	137	130	122	108	79	45		2173	186

Features

The hydraulic working characteristics
have been taken with water at 15°C,
at the atmosphericpressure of 1 bar andspecific gravity is 1gr/cm3.

Options

The N8 Series Cast Iron Pump includes
N8 8130 / N8 8131 / N8 AA / N8 ARL / N8 ARB / N8(W2) SE / N8 HE / N8(W2) HE
Pumps.

Let's Find the Right Product
for Your Project Together

FIND THE RIGHT PRODUCT QUICKLY

GET A QUOTE TALK TO AN EXPERT

Technical Documents &
Catalogs

QUICKLY ACCESS CATALOGS, TECHNICAL DOCUMENTS AND USER GUIDES FOR OUR PRODUCT GROUPS.

TECHNICAL CATALOG

Recommendation system
based on engineering data

N8 Series
CAST IRON PUMPS

NSP N8 8130 SERİSİ DÖKÜM GÖVDELİ PASLANMAZ FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8130 SERIES CAST IRON DIFFUSER STAINLESS STEEL IMPELLER SUBMERSİBLE PUMPS

NSP N8 8131 SERİSİ DÖKÜM GÖVDELİ NORİL FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8131 SERIES CAST IRON DIFFUSER NORYL STEEL IMPELLER SUBMERSİBLE PUMPS

N8-AA Serisi Döküm Pompa / N8-AA Series Cast Iron Pumps

N8-ARL Serisi Döküm Pompa / N8-ARL Series Cast Iron Pumps

N8-ARB Serisi Döküm Pompa / N8-ARB Series Cast Iron Pumps

N8-SE Serisi Döküm Pompa / N8-SE Series Cast Iron Pumps

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N6 Series CAST IRON PUMPS

N7 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation systembased on engineering data

N8 SeriesCAST IRON PUMPS

NSP N8 8130 SERİSİ DÖKÜM GÖVDELİ PASLANMAZ FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8130 SERIES CAST IRON DIFFUSER STAINLESS STEEL IMPELLER SUBMERSİBLE PUMPS

NSP N8 8131 SERİSİ DÖKÜM GÖVDELİ NORİL FANLI TEK DALGIÇ POMPA GRUBU / NSP N8 8131 SERIES CAST IRON DIFFUSER NORYL STEEL IMPELLER SUBMERSİBLE PUMPS

N8-AA Serisi Döküm Pompa / N8-AA Series Cast Iron Pumps

N8-ARL Serisi Döküm Pompa / N8-ARL Series Cast Iron Pumps

N8-ARB Serisi Döküm Pompa / N8-ARB Series Cast Iron Pumps

N8-SE Serisi Döküm Pompa / N8-SE Series Cast Iron Pumps

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

N8-HE Serisi Döküm Pompa / N8-HE Series Cast Iron Pumps

Let's Find the Right Productfor Your Project Together

Technical Documents &Catalogs

Other Nempa Products

N5 Series CAST IRON PUMPS

N6 Series CAST IRON PUMPS

N7 Series CAST IRON PUMPS

N9 Series CAST IRON PUMPS

N10 Series CAST IRON PUMPS

N12 Series CAST IRON PUMPS

Recommendation system
based on engineering data

N8 Series
CAST IRON PUMPS

Let's Find the Right Product
for Your Project Together

Technical Documents &
Catalogs
