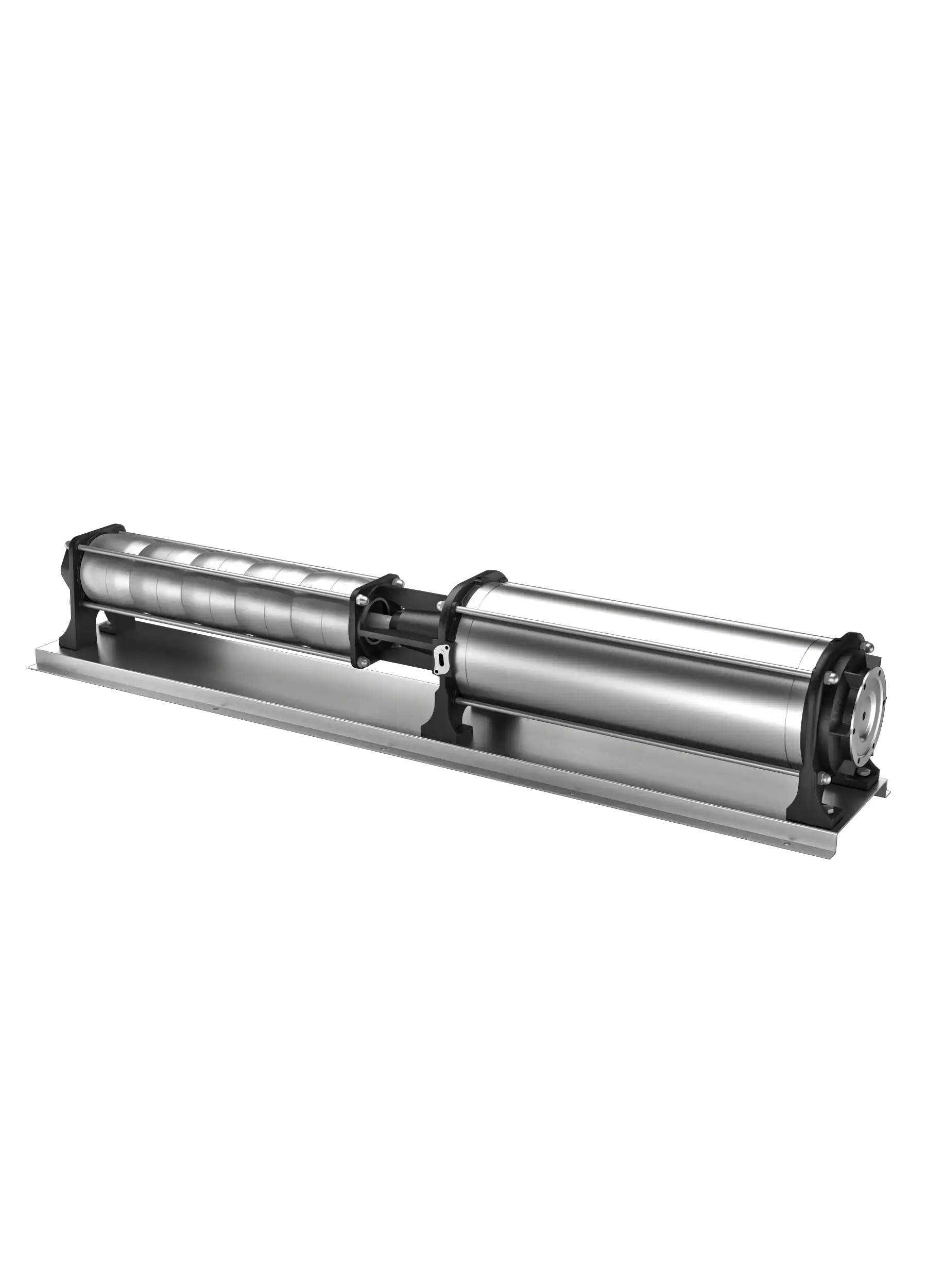

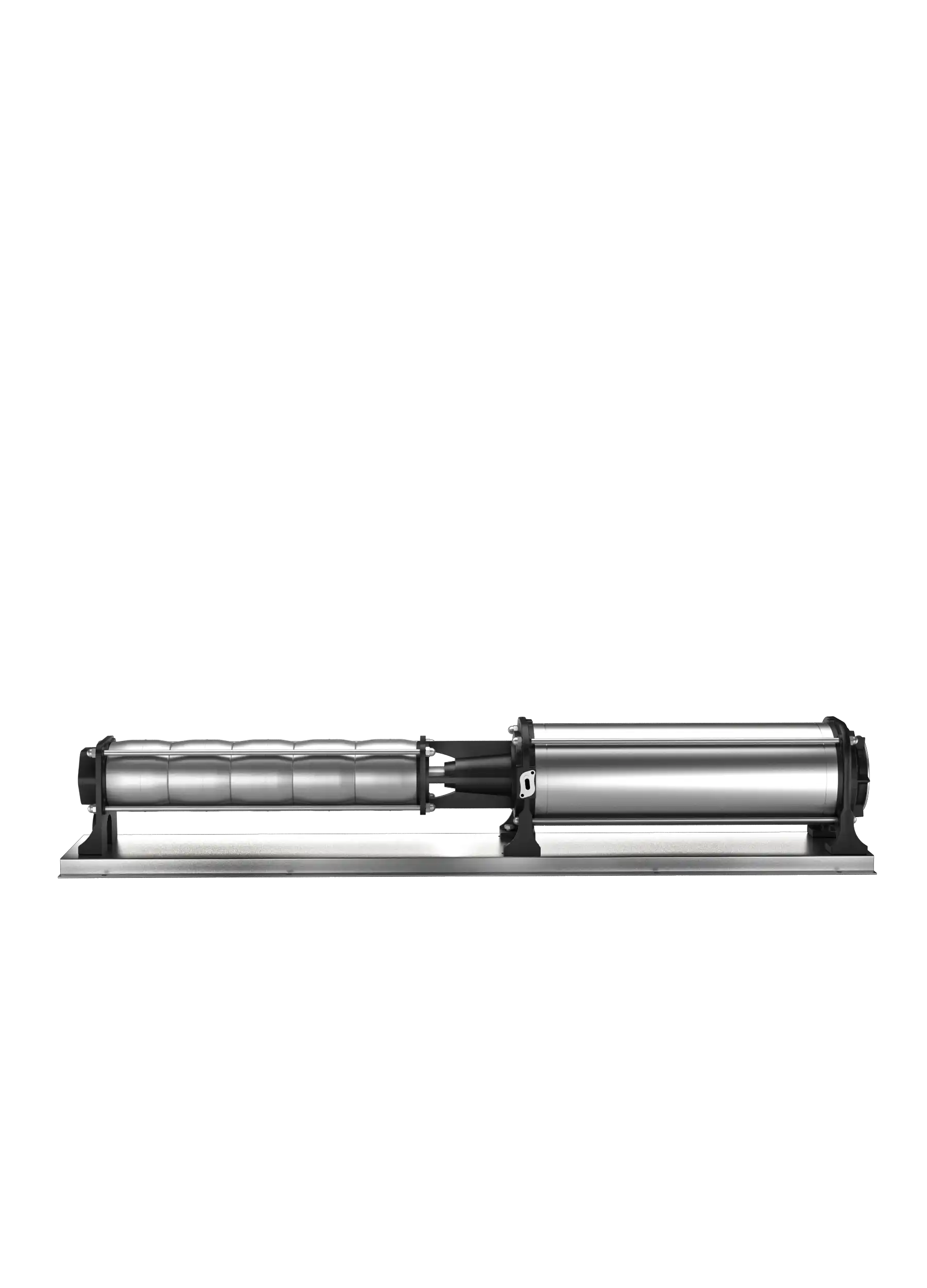

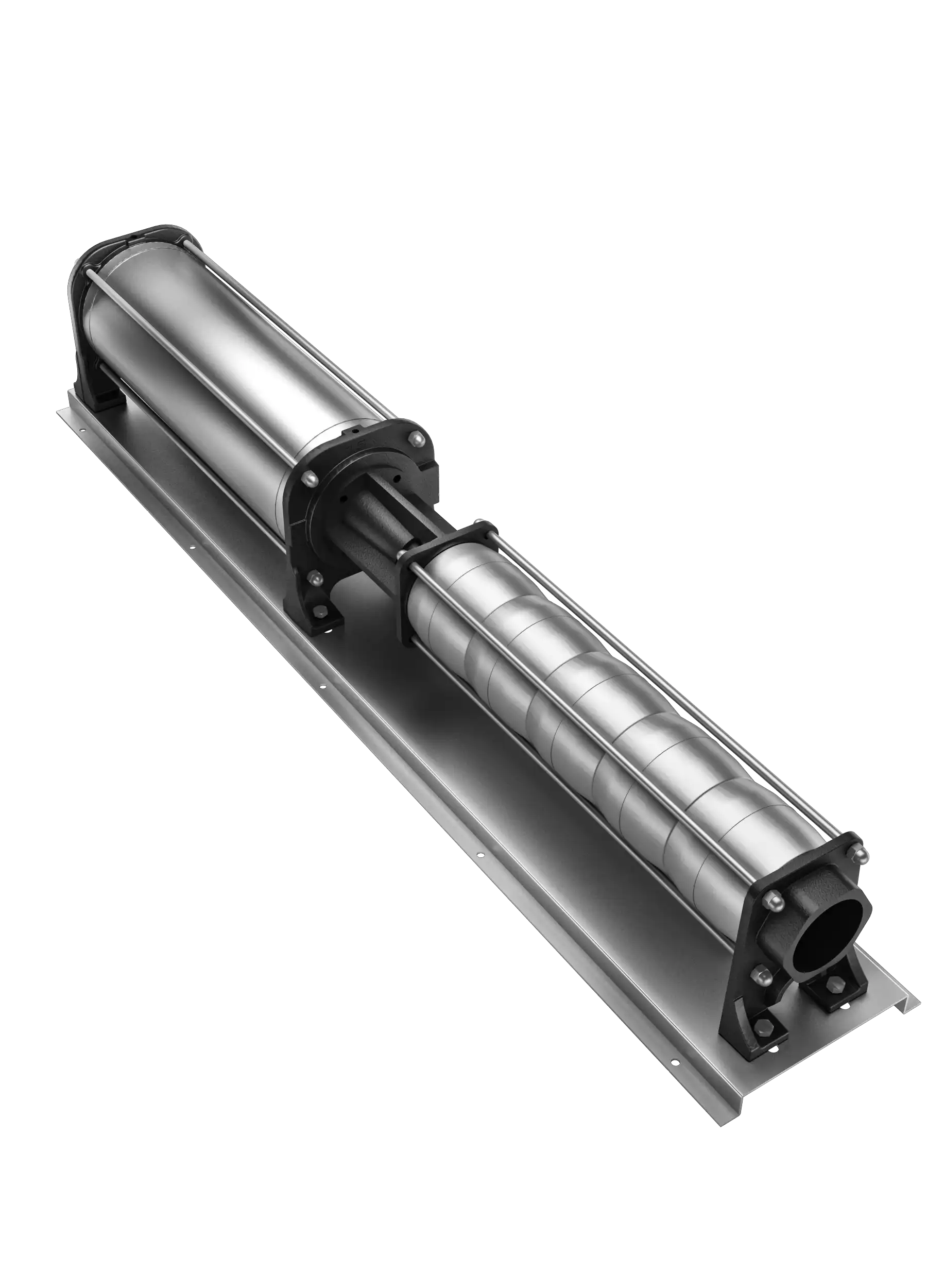

Axial Submersible Motor Pump

NYP 7000 Series
AXIAL SUBMERSIBLE MOTOR PUMPS

NYP 7000 Series

TECHNICAL SPECS

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	20	40	60	70	80	100	Çıkış / Outlet
	KW	HP	lt/sn	0	5.5556	11.1111	16.6667	19.4444	22.2222	27.7778	Inc
NYP 7077 / 01	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	21	20	17	14	13	11	7	3''
NYP 7077 / 02	7.5	10		41	39	33	28	26	23	13
NYP 7077 / 03	11	15		61	58	50	43	39	34	20
NYP 7077 / 04	15	20		81	78	68	57	52	46	27
NYP 7077 / 05	18.5	25		101	97	85	72	66	58	34

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	20	40	60	80	100	120	Çıkış / Outlet
	KW	HP	lt/sn	0	5.6	11.1	16.7	22.2	27.8	33.3	Inc
NYP 7095 / 01	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	23	21	18	15	13	11	6	3"
NYP 7095 / 02-Z	7.5	10		41	38	31	27	22	14	8
NYP 7095 / 03-Z	11	15		60	54	47	42	34	25	17
NYP 7095 / 03	15	20		86	82	72	63	55	44	26
NYP 7095 / 04	18.5	25		106	101	90	78	69	55	32

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	20	40	60	80	100	110	Çıkış / Outlet
	KW	HP	lt/sn	0	5.5556	11.1111	16.6667	22.2222	27.7778	30.5556	Inc
NYP 7096 / 01	5,5	7,5	Basma Yüksekliği / Total Dynamic Head	25	24	21	19	17	15	13	4''
NYP 7096 / 02	11	15		50	47	42	37	34	29	25
NYP 7096 / 03	15	20		75	71	63	56	51	44	38
NYP 7096 / 04-Z	18.5	25		91	85	73	64	53	47	46

Features

Horizontal submersible motor pumps are pump-motor units specifically designed to operate in a horizontal position, unlike standard vertical submersible pumps.
Horizontal submersible motor pumps are used with high efficiency for the transfer of clean water, seawater, process water, cooling water, and similar fluids.
