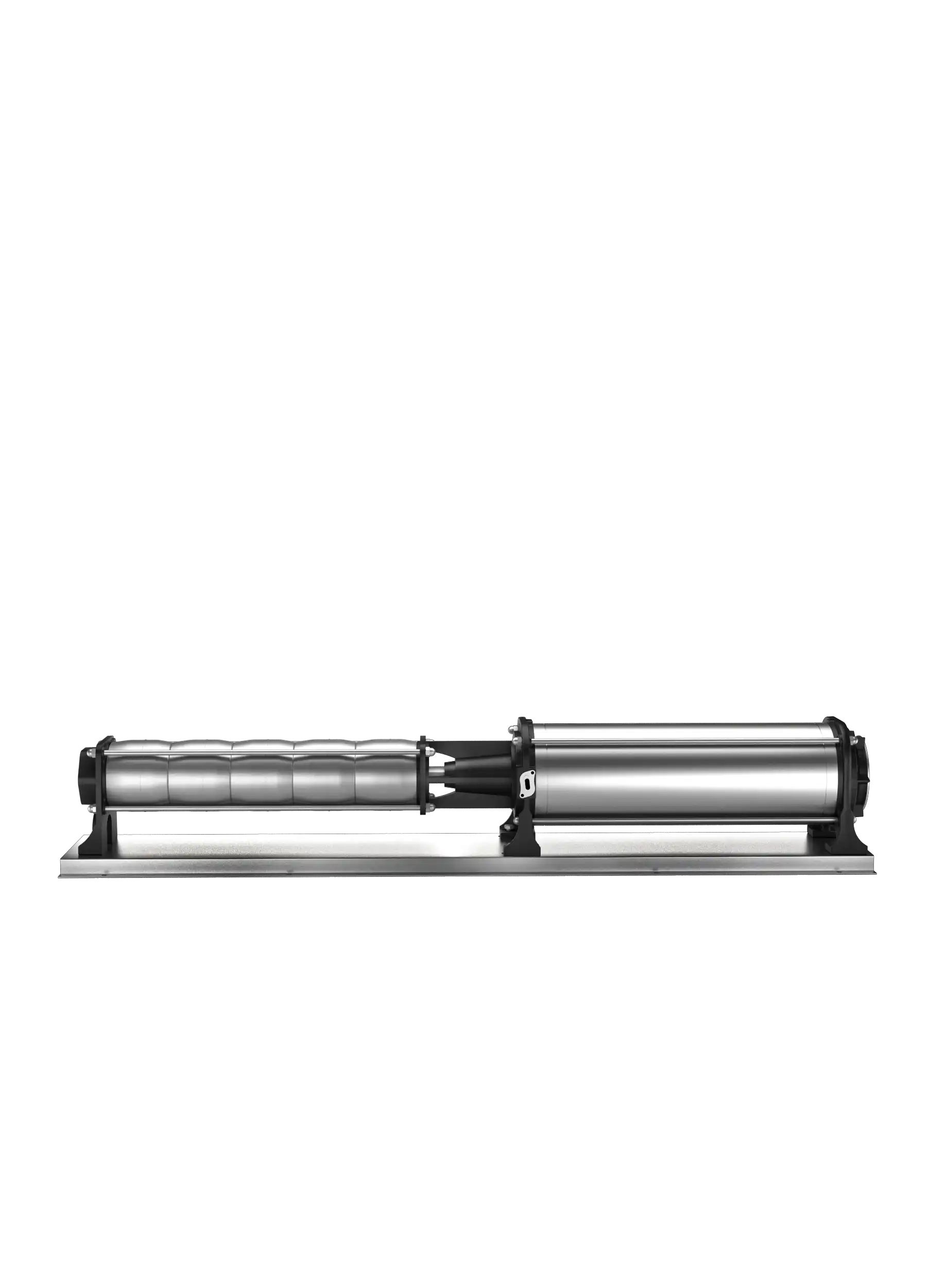

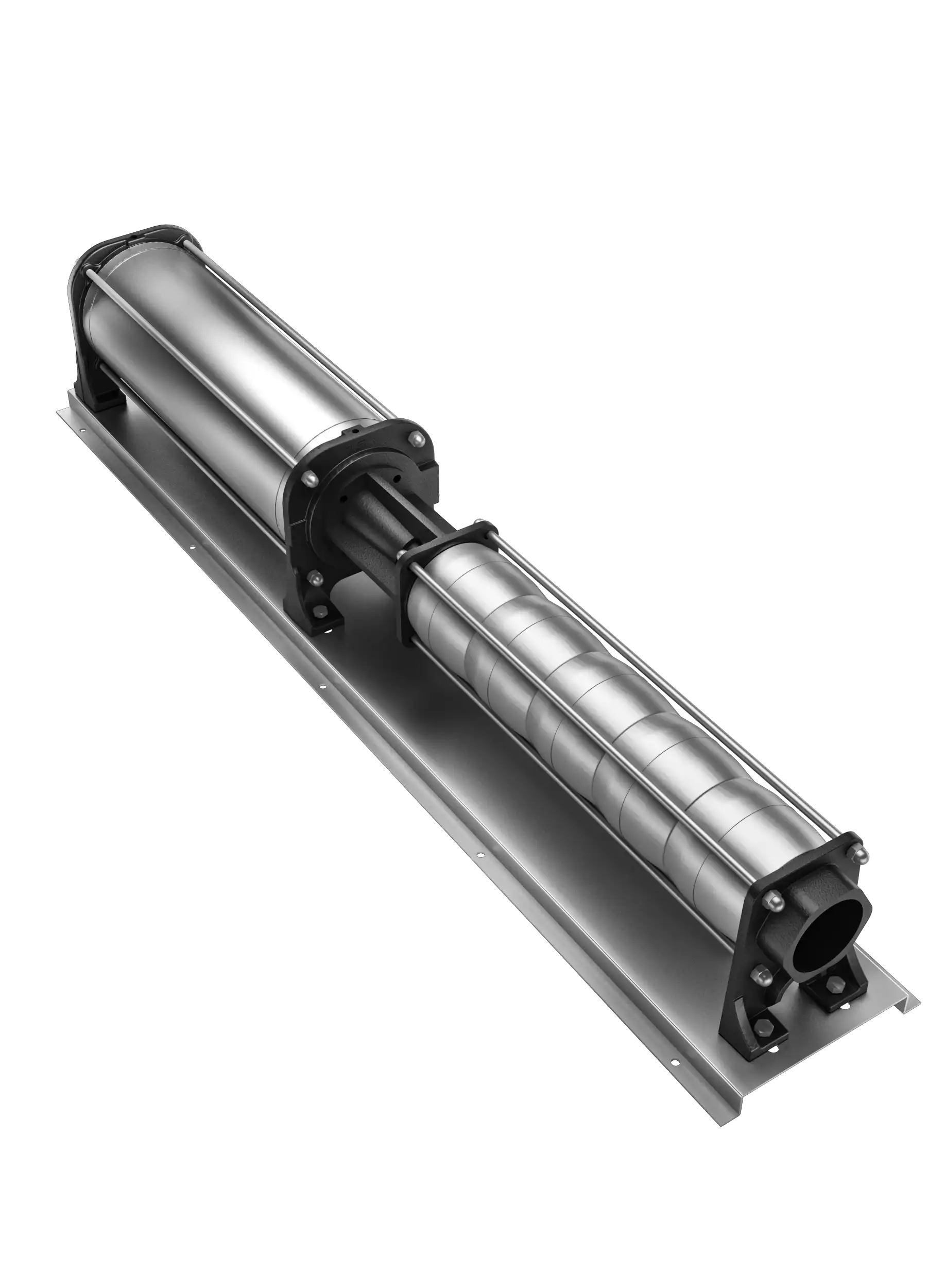

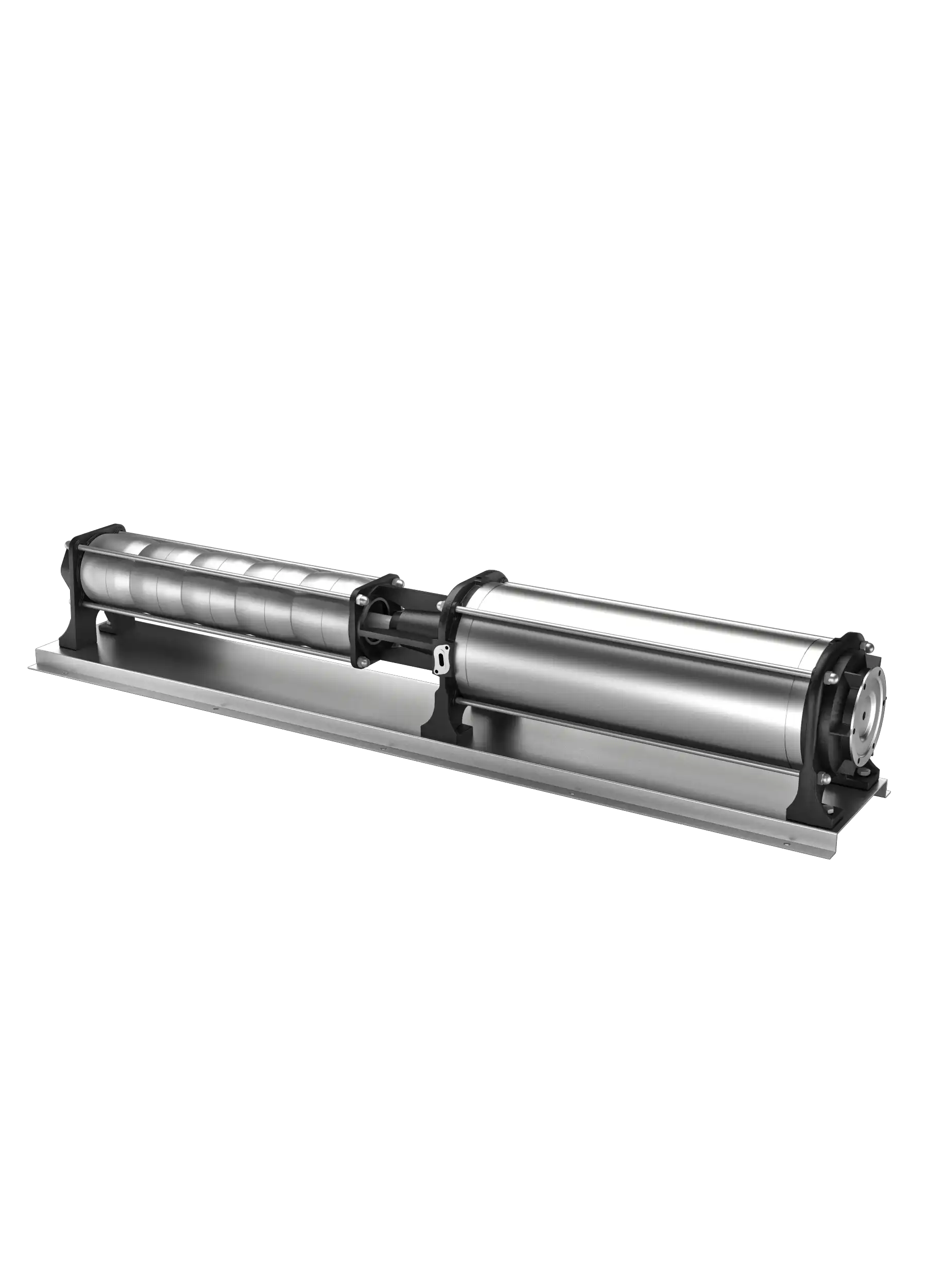

Axial Submersible Motor Pump

NYP 6000 Series
AXIAL SUBMERSIBLE MOTOR PUMPS

NYP 6000 Series

TECHNICAL SPECS

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	4	8	12	14	16	20	Çıkış / Outlet
	KW	HP	lt/sn	0	1.1111	2.2222	3.3333	3.8889	4.4444	5.5556	Inc
NYP 6017 / 08	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	90	89	87	80	75	68	52	3''
NYP 6017 / 09	5.5	7.5		101	100	97	88	83	76	58
NYP 6017 / 10	5.5	7.5		112	111	107	98	91	84	63
NYP 6017 / 11	7.5	10		124	123	119	109	102	93	72
NYP 6017 / 12	7.5	10		135	134	129	119	111	101	77
NYP 6017 / 13	7.5	10		145	144	140	128	119	109	83
NYP 6017 / 14	11	15		157	156	152	139	130	119	91
NYP 6017 / 15	11	15		168	167	162	148	139	127	97
NYP 6017 / 16	11	15		179	178	172	158	147	134	102

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	8	16	24	28	32	39	Çıkış / Outlet
	KW	HP	lt/sn	0	2.2222	4.4444	6.6667	7.7778	8.8889	10.8333	Inc
NYP 6030 / 05	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	58	56	51	45	41	35	21	3"
NYP 6030 / 06	5.5	7.5		69	67	60	53	48	41	25
NYP 6030 / 07	7.5	10		81	79	71	63	57	49	30
NYP 6030 / 08	7.5	10		91	89	80	71	64	55	34
NYP 6030 / 11	11	15		125	122	110	97	88	75	45
NYP 6030 / 12	11	15		137	133	121	106	96	83	51
NYP 6030 / 13	11	15		148	144	130	115	104	89	53
NYP 6030 / 14	15	20		160	156	141	124	113	98	61
NYP 6030 / 15	15	20		171	167	150	133	120	103	64

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	10	20	30	40	50	60	Çıkış / Outlet
	KW	HP	lt/sn	0	2.7778	5.5556	8.3333	11.1111	13.8889	16.6667	Inc
NYP 6046 / 03	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	41	39	36	32	28	23	15	3"
NYP 6046 / 04	7.5	10		55	52	48	44	38	31	20
NYP 6046 / 05	7.5	10		67	64	59	54	47	37	24
NYP 6046 / 06	7.5	10		81	77	71	65	57	45	29
NYP 6046 / 07	11	15		94	90	84	76	66	51	35
NYP 6046 / 08	11	15		108	103	96	87	77	61	41
NYP 6046 / 09	15	20		122	116	107	99	87	70	47
NYP 6046 / 10	15	20		135	127	120	109	95	77	51
NYP 6046 / 11	18.5	25		149	143	133	121	106	86	58
NYP 6046 / 12	18.5	25		162	155	144	132	115	93	63

Pompa Tipi / Pump Type	Motor Tipi / Motor Type		Su Miktarı / Flow Rate								Çıkış / Outlet
	Motor Tipi / Motor Type		m3/h	0	20	40	50	60	70	78	Çıkış / Outlet
	KW	HP	lt/sn	0	5.5556	11.1111	13.8889	16.6667	19.4444	21.6667	Inc
NYP 6060 / 03	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	42	39	30	26	23	16	10	3"
NYP 6060 / 04	7.5	10		56	52	41	35	31	22	14
NYP 6060 / 05	7.5	10		71	66	51	44	39	28	18
NYP 6060 / 06	11	15		81	79	62	54	46	34	22
NYP 6060 / 07	11	15		100	92	73	63	54	40	26
NYP 6060 / 08	15	20		114	106	84	73	62	46	30
NYP 6060 / 09	18.5	25		130	120	96	83	71	54	36
NYP 6060 / 10	18.5	25		143	133	105	92	78	60	41

Features

Horizontal submersible motor pumps are pump-motor units specifically designed to operate in a horizontal position, unlike standard vertical submersible pumps.
Horizontal submersible motor pumps are used with high efficiency for the transfer of clean water, seawater, process water, cooling water, and similar fluids.
