SUBMERSIBLE MOTOR

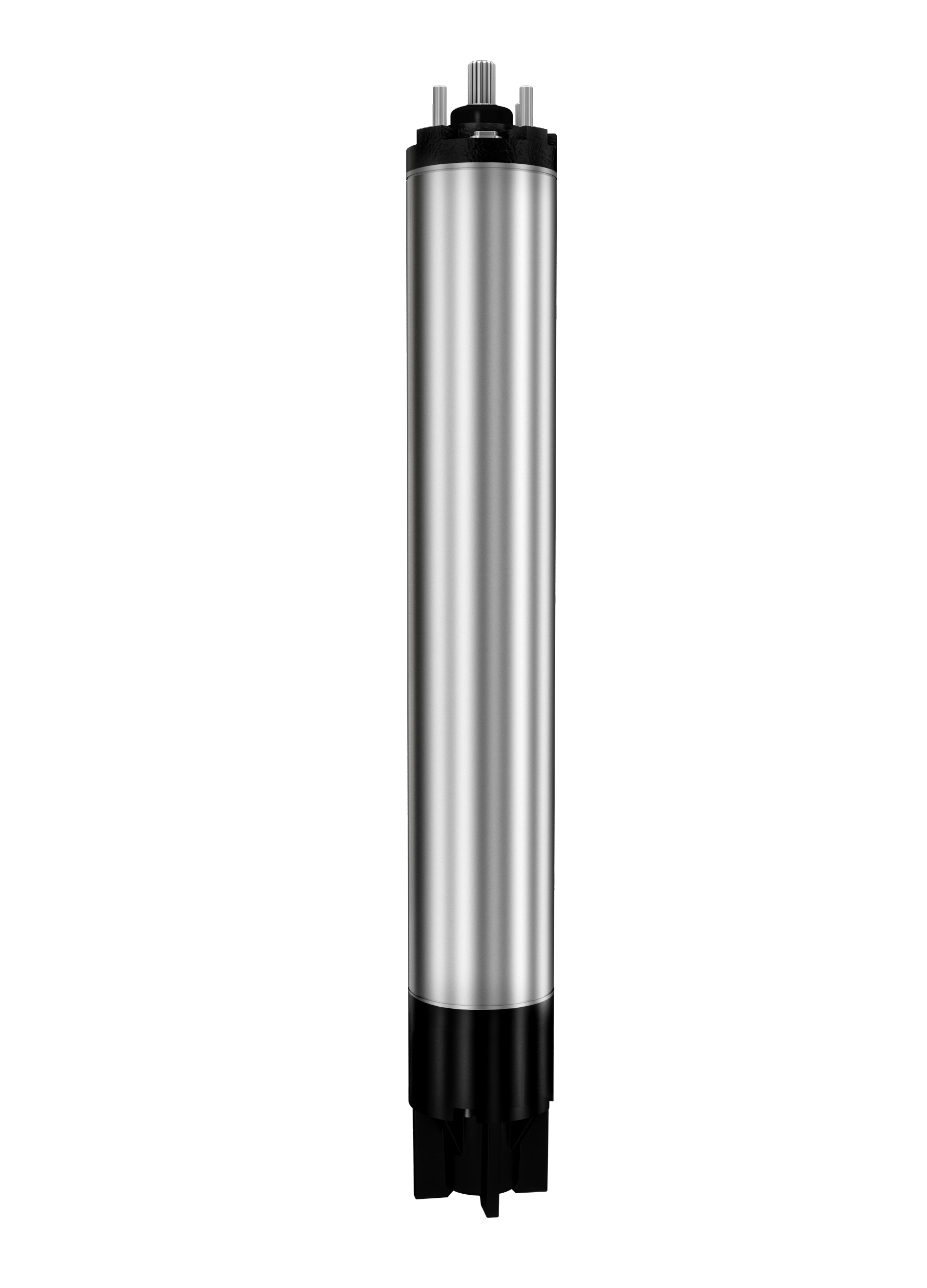

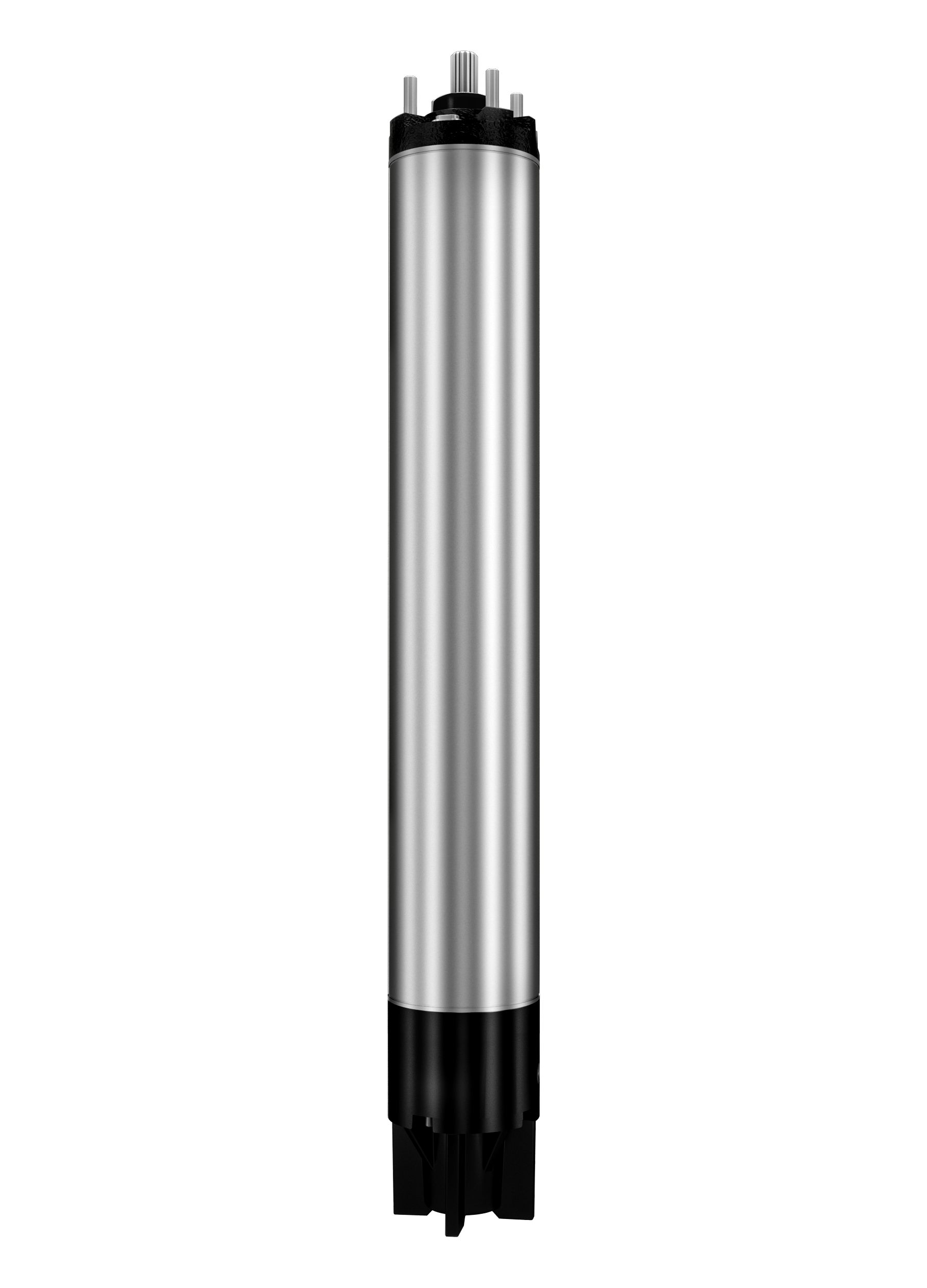

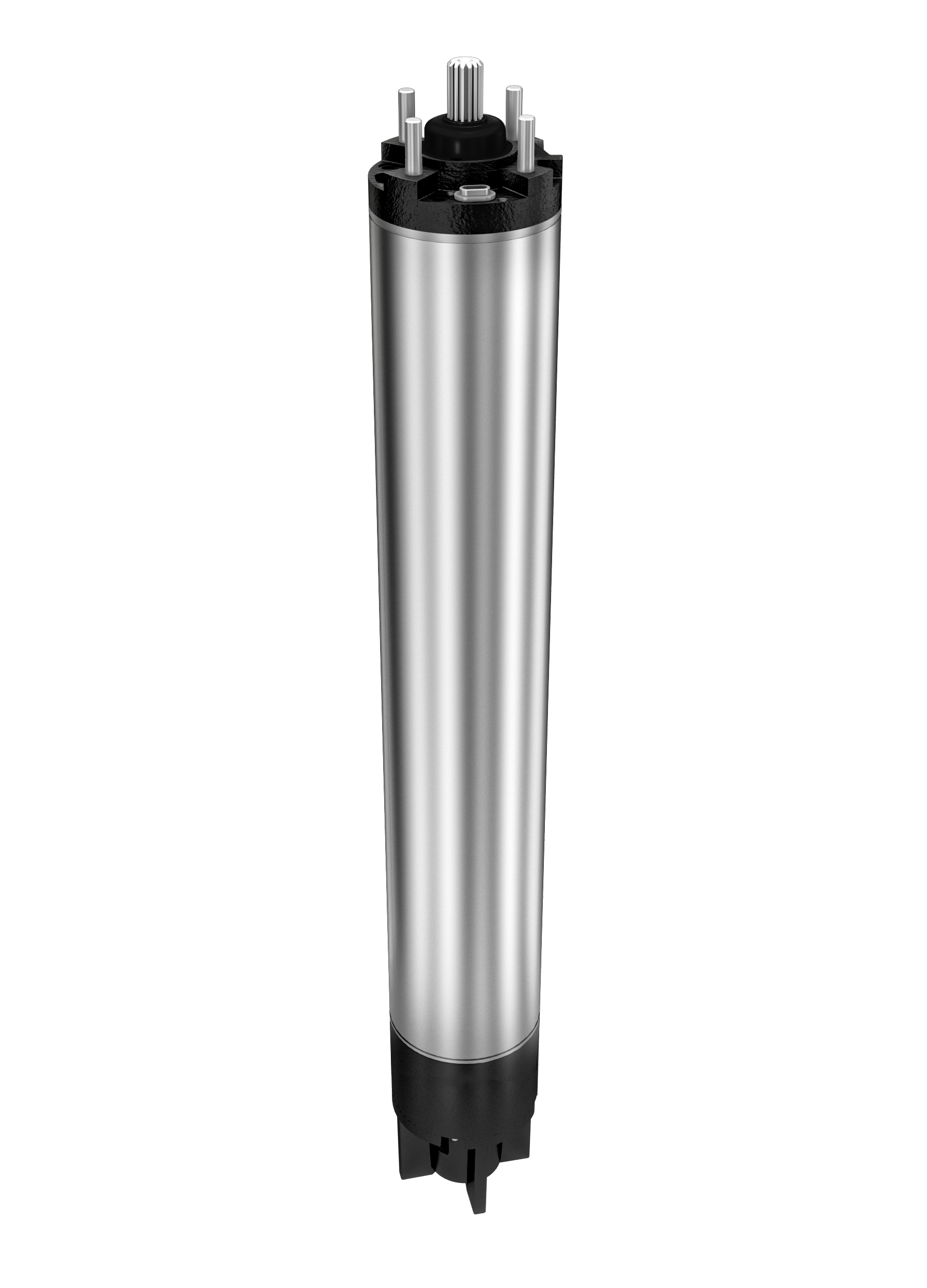

8" Submersible Motor
SERIES 50/60 HZ

TECHNICAL SPECS

Motor	Güç		Akım	Çap	Yol Verme	Eksenel Yük	Ağırlık
Motor	Power		Current	Ø max	Starting	Axial load	Weight
inc	HP	kW	Amper	mm	∆ / S - ∆	kN	kg
8ˈˈ	30	22	47.5	191	∆ / S - ∆	45	122
	35	26.5	56.5		∆ / S - ∆		126
	40	30	62.5		∆ / S - ∆		130
	50	37	76.1		∆ / S - ∆		138
	60	45	91.5		∆ / S - ∆		154
	70	52	104.5		∆ / S - ∆		169
	75	55	110.6		∆ / S - ∆		172
	80	60	119.2		∆ / S - ∆		178
	90	67	134.7		∆ / S - ∆		188
	100	75	150.8		∆ / S - ∆		196
	110	81	162.8		∆ / S - ∆	60	212
	125	92	184.9		∆ / S - ∆		222
	150	110	218.6		∆ / S - ∆		246

Features

Water coolant system
Water-lubricated radial and axial type bearings
Motor housing tube and CrNi motor shafts are made of AISI 420 stainless steel.
Carbon-Ceramic mechanical seal (IP68)
Motor suitable for starting with soft starter
NEMPA Motors can provide many years of service due to their rewindable feature (PVC PP and PE2+PA coil wire).
Motors are filled with a mixture of water and antifreeze. (D.N. below -10°C)
