SUBMERSIBLE MOTOR

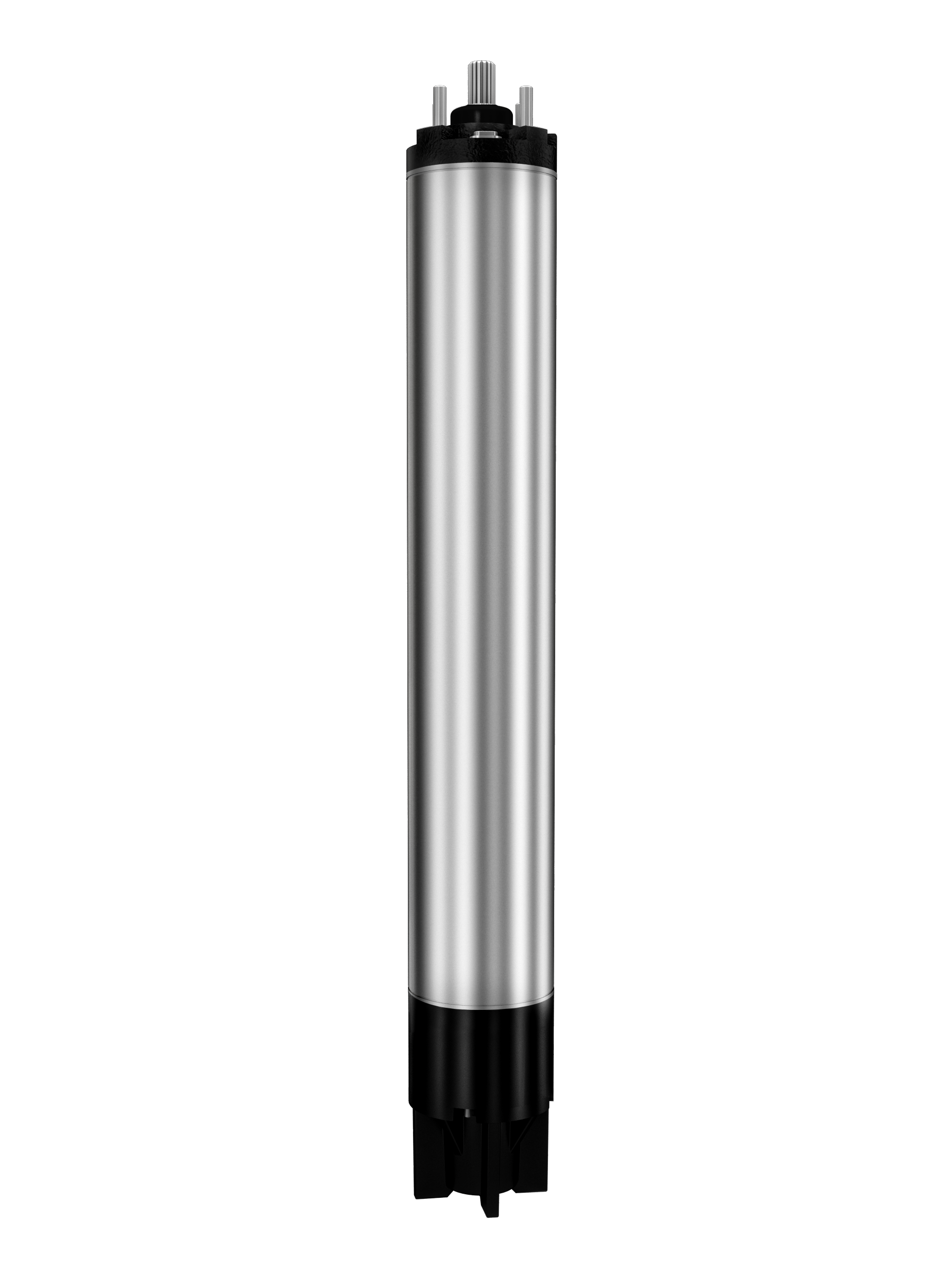

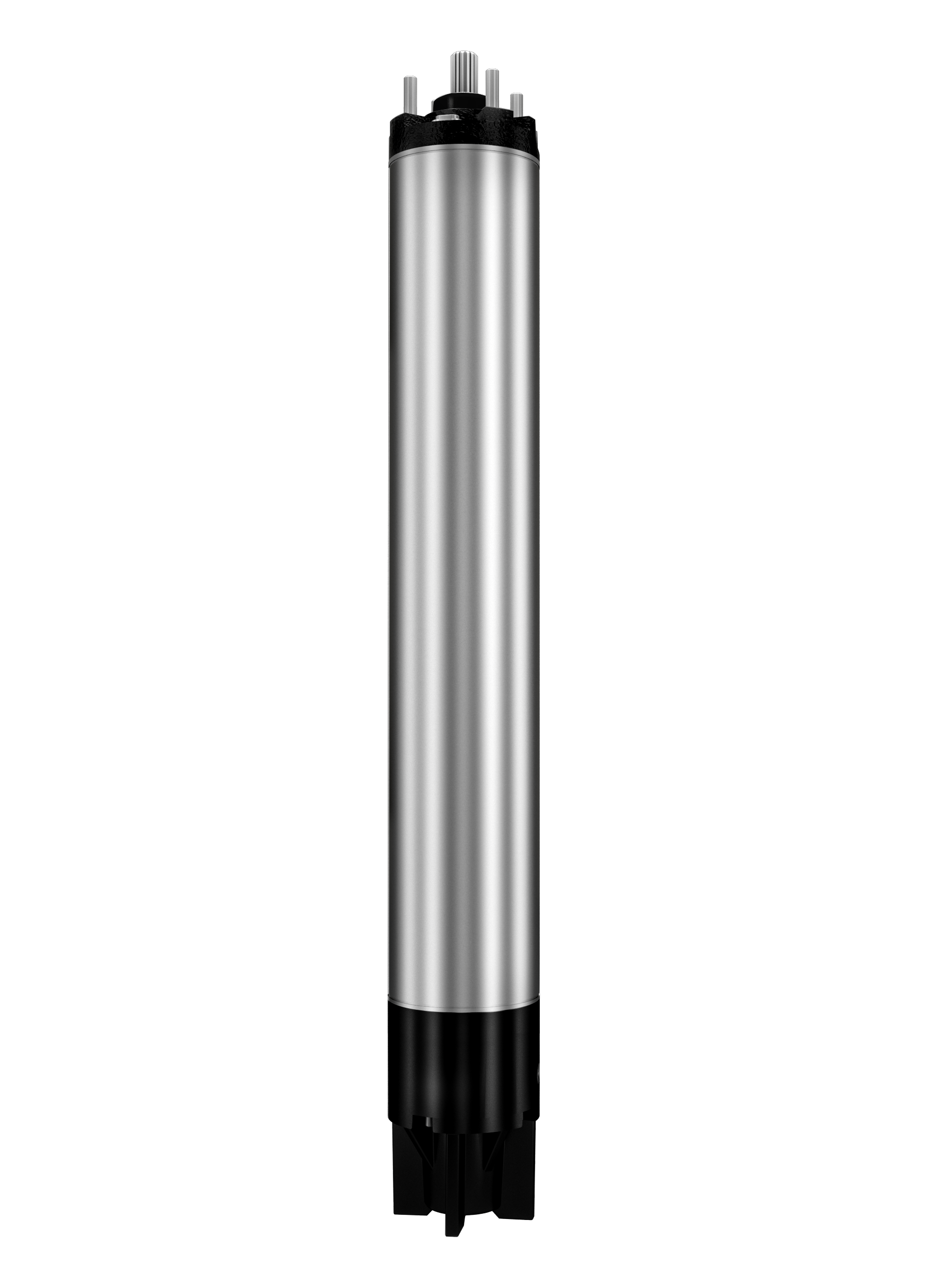

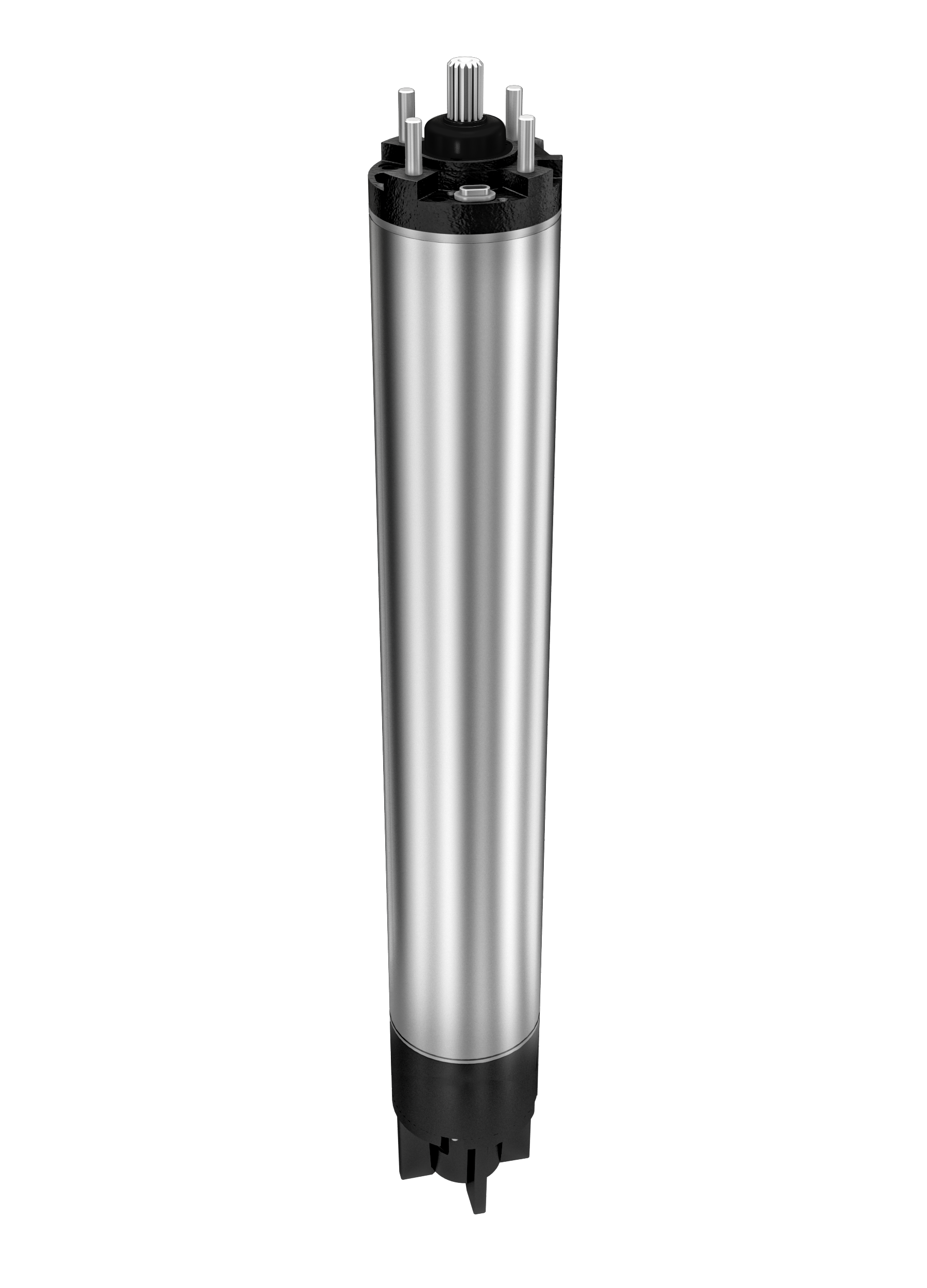

7" Submersible Motor
SERIES 50/60 HZ

TECHNICAL SPECS

Motor	Güç		Akım	Çap	Yol Verme	Eksenel Yük	Ağırlık
Motor	Power		Current	Ø max	Starting	Axial load	Weight
inc	HP	kW	Amper	mm	∆ / S - ∆	kN	kg
7ˈˈ	30	22	46.3	172	∆ / S - ∆	45	98
	35	26.5	55.8		∆ / S - ∆		104
	40	30	62.4		∆ / S - ∆		110
	50	37	75.2		∆ / S - ∆		124
	60	45	91.5		∆ / S - ∆		136
	70	52	105.7		∆ / S - ∆		148
	75	55	111.8		∆ / S - ∆		154
	80	60	122		∆ / S - ∆		157
	90	67	136.2		∆ / S - ∆		174

Features

Water coolant system
Water-lubricated radial and axial type bearings
Motor housing tube and CrNi motor shafts are made of AISI 420 stainless steel.
Carbon-Ceramic mechanical seal (IP68)
Motor suitable for starting with soft starter
NEMPA Motors can provide many years of service due to their rewindable feature (PVC PP and PE2+PA coil wire).
Motors are filled with a mixture of water and antifreeze. (D.N. below -10°C)
