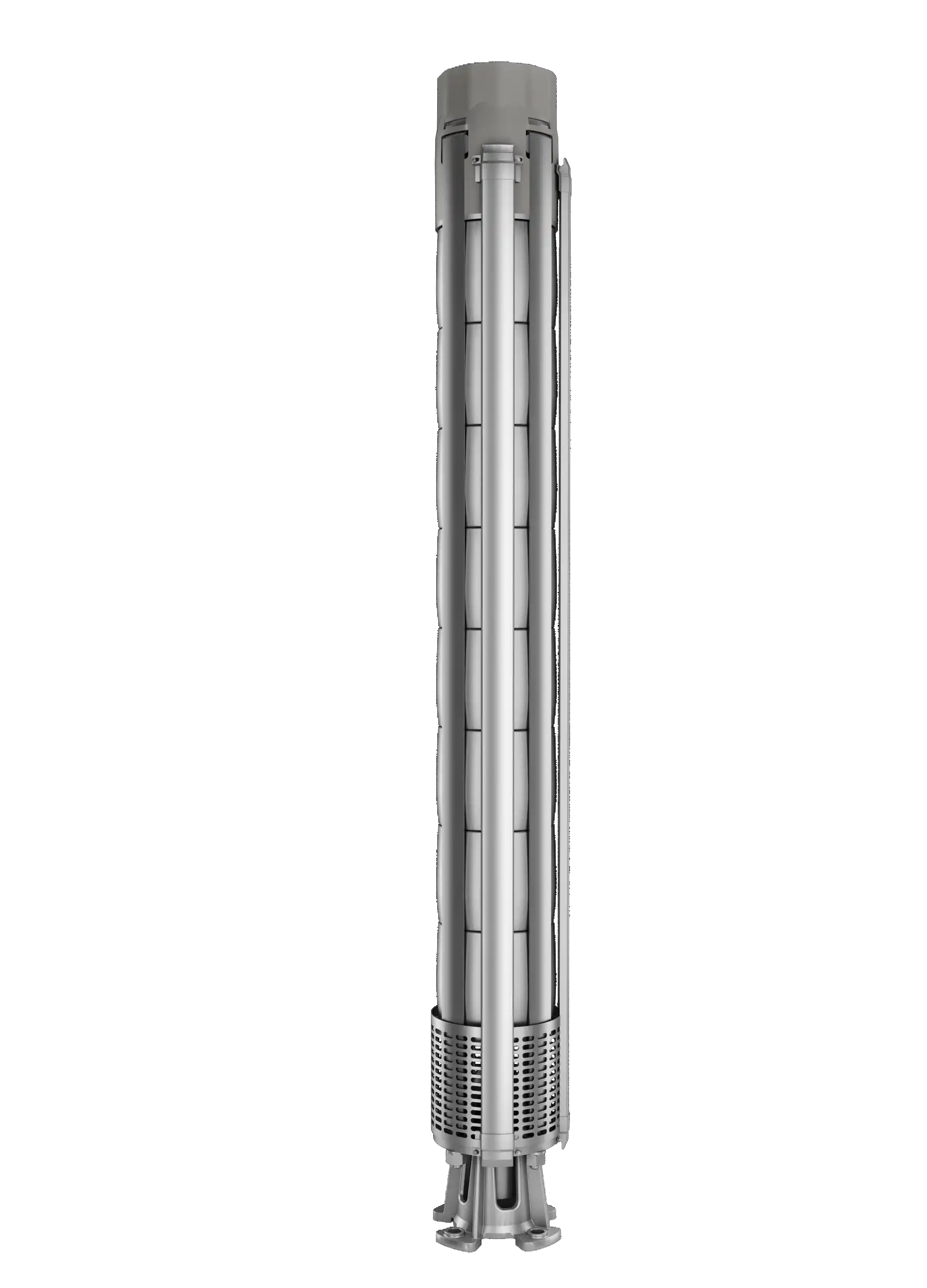

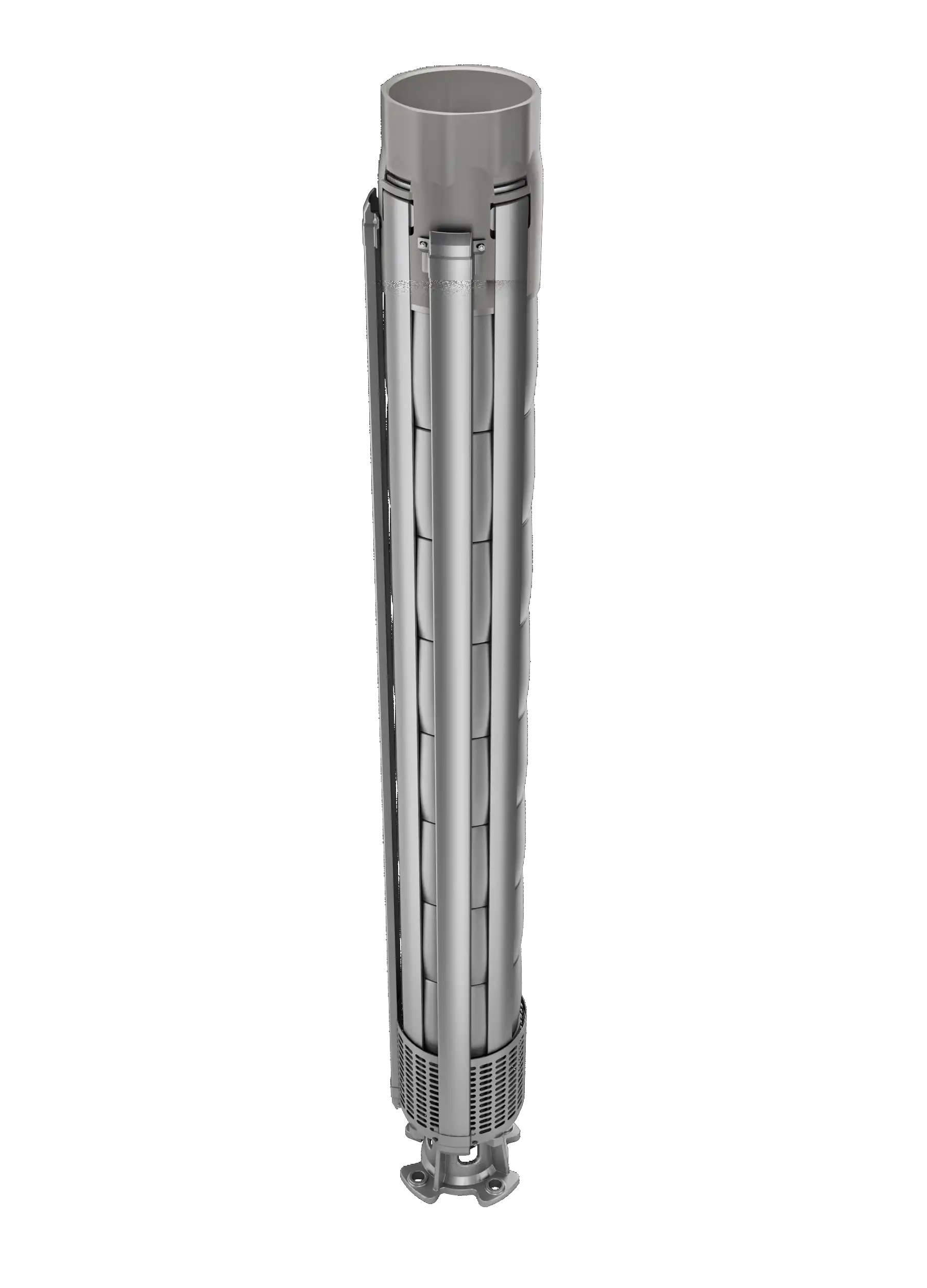

PASLANMAZ ÇELİK DALGIÇ POMPALAR

NSP 7000 Serisi
PASLANMAZ ÇELİK POMPALAR

NSP 7000 Serisi

TEKNİK ÖZELLİKLER

ÜRÜN DÖKÜMANLARI

Difüzör Paslanmaz Çelik | AISI 304
Çark Paslanmaz Çelik | AISI 304
Mil Paslanmaz Çelik | AISI 304/316/420
Kaplin Paslanmaz Çelik | AISI 304
Süzgeç Paslanmaz Çelik | AISI 304
Voltaj 230/400 V
Frekans 50 Hz.
Mak. Su Sıcaklığı Max. 35°C
Mak. Kum Miktarı 50 gr/m³

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	Hp	kW	mm					Inc	Kg
NSP 7077/01	6"	7.5	5.5	1257	677	580	142	178	4'' - 5"	44	20	64
NSP 7077/02	6"	10	7.5	1467	757	710	142	178		50	25	75
NSP 7077/03	6"	15	11	1690	850	840	142	178		60	30	90
NSP 7077/04	6"	20	15	1942	972	970	142	178		70	35	105
NSP 7077/05	6"	25	18.5	2105	1005	1100	142	178		78	40	118
NSP 7077/06	6"	30	22	2335	1105	1230	142	178		88	45	133
NSP 7077/07	6"	35	26.5	2576	1216	1360	142	178		98	50	148
NSP 7077/08	6"	40	30	2736	1246	1490	142	178		100	55	155
NSP 7077/09	6"	40	30	2866	1246	1620	142	178		100	60	160
NSP 7077/10	6"	50	37	3096	1346	1750	142	178		114	66	180
NSP 7077/11	6"	50	37	3226	1346	1880	142	178		114	71	185
NSP 7077/12	8"	60	45	3232	1190	2042	191	184		154	76	230
NSP 7077/13	8"	70	52	3447	1275	2172	191	184		169	81	250
NSP 7077/14	8"	70	52	3577	1275	2302	191	184		169	86	255
NSP 7077/15	8"	75	55	3707	1275	2432	191	184		172	92	264
NSP 7077/16	8"	80	60	3892	1330	2562	191	184		178	97	275
NSP 7077/17	8"	80	60	4022	1330	2692	191	184		178	102	280
NSP 7077/18	8"	90	67	4177	1355	2822	191	184		188	107	295
NSP 7077/19	8"	90	67	4307	1355	2952	191	184		188	112	300
NSP 7077/20	8"	100	75	4462	1380	3082	191	184		196	118	314
NSP 7077/21	8"	100	75	4592	1380	3212	191	184		196	123	319
NSP 7077/22	8"	110	81	4802	1460	3342	191	184		212	128	340
NSP 7077/23	8"	125	92	4997	1525	3472	191	184		222	133	355
NSP 7077/24	8"	125	92	5127	1525	3602	191	184		222	138	360
NSP 7077/25	8"	125	92	5257	1525	3732	191	184		222	143	365
NSP 7077/26	8"	150	110	5492	1630	3862	191	184		246	148	394

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	Hp	kW	mm					Inc	Kg
NSP 7095/01	6"	7.5	5.5	1257	677	580	142	178	4'' - 5"	44	20	64
NSP 7095/02	6"	12.5	9.3	1507	797	710	142	178		54	25	79
NSP 7095/03	6"	17.5	13	1750	910	840	142	178		64	30	94
NSP 7095/04	6"	25	18.5	1975	1005	970	142	178		78	35	113
NSP 7095/05	6"	30	22	2205	1105	1100	142	178		88	40	128
NSP 7095/06	6"	40	30	2476	1246	1230	142	178		100	45	145
NSP 7095/07	6"	40	30	2606	1246	1360	142	178		100	51	151
NSP 7095/08	6"	50	37	2836	1346	1490	142	178		114	56	170
NSP 7095/09	6"	60	45	2966	1346	1620	142	178		114	61	175
NSP 7095/10	8"	60	45	2940	1190	1750	191	178		154	67	221
NSP 7095/11	8"	70	50	3155	1275	1880	191	178		172	72	244
NSP 7095/12	8"	75	55	3317	1275	2042	191	178		172	77	249
NSP 7095/13	8"	80	60	3447	1275	2172	191	178		172	82	254
NSP 7095/14	8"	90	67	3657	1355	2302	191	178		188	87	275
NSP 7095/15	8"	90	67	3787	1355	2432	191	178		188	92	280
NSP 7095/16	8"	100	75	3942	1380	2562	191	178		196	98	294
NSP 7095/17	8"	100	75	4072	1380	2692	191	178		196	103	299
NSP 7095/18	8"	110	81	4347	1525	2822	191	178		222	108	330
NSP 7095/19	8"	125	92	4477	1525	2952	191	178		222	113	335
NSP 7095/20	8"	125	92	4607	1525	3082	191	178		222	119	341
NSP 7095/21	8"	150	110	4742	1530	3212	231	178		304	125	429
NSP 7095/22	8"	150	110	4872	1530	3342	231	178		304	130	434
NSP 7095/23	8"	150	110	5002	1530	3472	231	178		304	135	439
NSP 7095/24	10"	175	129	5212	1610	3602	231	178		334	140	474
NSP 7095/25	10"	175	129	5342	1610	3732	231	178		334	145	479
NSP 7095/26	10"	175	129	5472	1610	3862	231	178		334	150	484

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			A	B	C	D	E	Q	Motor Ağırlık / Motor Weight	Pompa Ağırlık / Pump Weight	Motor Pump Ağırlık / Motor Pump Weight
Pompa Tipi / Pump Type	Inc	Hp	kW	mm					Inc	Kg
NSP 7096/01	6"	7.5	5.5	1257	677	580	142	178	4'' - 5"	44	20	64
NSP 7096/02	6"	15	11	1560	850	710	142	178		60	25	85
NSP 7096/03	6"	20	15	1812	972	840	142	178		70	30	100
NSP 7096/04	6"	30	22	2075	1105	970	142	178		88	36	124
NSP 7096/05	6"	40	30	2346	1246	1100	142	178		100	41	141
NSP 7096/06	6"	50	37	2576	1346	1230	142	178		114	47	161
NSP 7096/07	6"	50	37	2706	1346	1360	142	178		114	52	166
NSP 7096/08	8"	60	45	2680	1190	1490	191	178		154	57	211
NSP 7096/09	8"	60	45	2810	1190	1620	191	178		154	62	216
NSP 7096/10	8"	75	55	3025	1275	1750	191	178		172	68	240
NSP 7096/11	8"	80	60	3210	1330	1880	191	178		178	73	251
NSP 7096/12	8"	90	67	3397	1355	2042	191	178		188	78	266
NSP 7096/13	8"	100	75	3552	1380	2172	191	178		196	84	280
NSP 7096/14	8"	100	75	3682	1380	2302	191	178		196	89	285
NSP 7096/15	8"	110	81	3892	1460	2432	191	178		212	94	306
NSP 7096/16	8"	125	92	4087	1525	2562	191	178		222	100	322
NSP 7096/17	8"	125	92	4217	1525	2692	191	178		222	105	327
NSP 7096/18-ZZ	8"	125	92	4347	1525	2822	191	178		222	105	327
NSP 7096/18	8"	150	110	4352	1530	2822	231	178		304	111	415
NSP 7096/19	8"	150	110	4482	1530	2952	231	178		304	116	420
NSP 7096/20	8"	150	110	4612	1530	3082	231	178		304	122	426
NSP 7096/21-Z	10"	175	129	4822	1610	3212	231	178		334	127	461
NSP 7096/22-Z	10"	175	129	4952	1610	3342	231	178		334	132	466
NSP 7096/23-ZZ	10"	175	129	5082	1610	3472	231	178		334	137	471
NSP 7096/24-ZZ	10"	200	166	5342	1740	3602	231	178		370	143	513
NSP 7096/25-ZZ	10"	200	166	5472	1740	3732	231	178		370	148	518
NSP 7096/26-ZZZ	10"	200	166	5602	1740	3862	231	178		370	153	523

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate								Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	20	40	60	70	80	100	Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Type	kW	HP	lt/sn	0	6	11	17	19	22	28	Inc	mm	mm	Kg
NSP 7077-01	6"	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	21	20	17	14	13	11	7	4'' - 5"	178	580	20
NSP 7077-02	6"	7.5	10		41	39	33	28	26	23	13		178	710	25
NSP 7077-03	6"	11	15		61	58	50	43	39	34	20		178	840	30
NSP 7077-04	6"	15	20		81	78	68	57	52	46	27		178	970	35
NSP 7077-05	6"	18.5	25		101	97	85	72	66	58	34		178	1100	40
NSP 7077-06	6" - 7" - 8"	22	30		120	116	102	88	79	69	40		178	1230	45
NSP 7077-07	6" - 7" - 8"	26.5	35		140	136	119	101	92	81	47		178	1360	50
NSP 7077-08	6" - 7" - 8"	30	40		160	156	136	115	105	93	55		178	1490	55
NSP 7077-09	6" - 7" - 8"	30	40		179	174	152	128	117	103	61		178	1620	60
NSP 7077-10	6" - 7" - 8"	37	50		199	194	170	145	132	116	69		178	1750	66
NSP 7077-11	6" - 7" - 8"	37	50		218	212	187	159	145	126	76		178	1880	71
NSP 7077-12	7" - 8"	45	60		243	237	210	178	163	144	87		184	2042	76
NSP 7077-13	7" - 8"	52	70		264	258	228	195	178	159	98		184	2172	81
NSP 7077-14	7" - 8"	52	70		283	277	245	209	191	170	103		184	2302	86
NSP 7077-15	7" - 8"	55	75		303	296	262	222	204	180	110		184	2432	92
NSP 7077-16	7" - 8"	60	80		324	317	280	240	220	195	119		184	2562	97
NSP 7077-17	7" - 8"	67	90		344	336	293	253	232	205	125		184	2692	102
NSP 7077-18	7" - 8"	67	90		362	355	313	267	245	216	132		184	2822	107
NSP 7077-19	7" - 8"	75	100		382	375	332	282	260	230	140		184	2952	112
NSP 7077-20	7" - 8"	75	100		402	395	348	296	272	240	150		184	3082	118
NSP 7077-21	8" - 10"	75	100		422	414	365	310	283	250	162		184	3212	123
NSP 7077-22	8" - 10"	81	110		441	433	380	324	296	262	168		184	3342	128
NSP 7077-23	8" - 10"	92	125		460	452	396	338	308	272	176		184	3472	133
NSP 7077-24	8" - 10"	92	125		480	471	412	352	320	283	184		184	3602	138
NSP 7077-25	8" - 10"	92	125		499	490	428	366	332	293	192		184	3732	143
NSP 7077-26	8" - 10"	110	150		518	509	444	380	344	303	200		184	3862	148

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate								Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	20	40	60	80	100	120	Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Type	kW	HP	lt/sn	0	6	11	17	22	28	33	Inc	mm	mm	Kg
NSP 7095-01	6"	5.5	7.5	Basma Yüksekliği / Total Dynamic Head	23	21	18	15	13	11	6	4'' - 5"	178	580	20
NSP 7095-02	6"	9.3	12.5		44	41	37	31	27	22	12		178	710	25
NSP 7095-03	6"	13	17.5		65	62	54	47	42	34	20		178	840	30
NSP 7095-04	6"	18.5	25		86	82	72	63	55	44	26		178	970	35
NSP 7095-05	6" - 7" - 8"	22	30		106	101	90	78	69	55	32		178	1100	40
NSP 7095-06	6" - 7" - 8"	30	40		127	122	109	94	83	66	39		178	1230	45
NSP 7095-07	6" - 7" - 8"	30	40		148	141	126	110	96	77	45		178	1360	51
NSP 7095-08	6" - 7" - 8"	37	50		168	161	145	127	111	89	54		178	1490	56
NSP 7095-09	7" - 8"	45	60		191	182	164	144	126	101	61		178	1620	61
NSP 7095-10	7" - 8"	45	60		214	204	185	163	142	114	70		178	1750	67
NSP 7095-11	7" - 8"	52	70		236	226	205	181	158	126	80		178	1880	72
NSP 7095-12	7" - 8"	55	75		255	246	222	196	172	138	86		178	2042	77
NSP 7095-13	7" - 8"	60	80		278	267	240	210	185	150	90		178	2172	82
NSP 7095-14	7" - 8"	67	90		300	288	260	227	200	162	100		178	2302	87
NSP 7095-15	7" - 8"	67	90		322	310	278	244	215	175	108		178	2432	92
NSP 7095-16	8" - 10"	75	100		342	330	295	260	230	185	115		178	2562	98
NSP 7095-17	8" - 10"	75	100		362	349	313	275	242	195	120		178	2692	103
NSP 7095-18	8" - 10"	81	110		382	368	330	290	255	205	125		178	2822	108
NSP 7095-19	8" - 10"	92	125		402	388	347	305	268	215	130		178	2952	113
NSP 7095-20	8" - 10"	92	125		422	406	365	320	281	225	135		178	3082	119
NSP 7095-21	8" - 10"	110	150		441	425	383	335	294	235	140		178	3212	125
NSP 7095-22	8"- 10"	110	150		460	444	397	350	307	246	145		178	3342	130
NSP 7095-23	8" - 10"	110	150		479	463	414	367	319	256	150		178	3472	135
NSP 7095-24	10"	129	175		498	482	430	382	334	266	155		178	3602	140
NSP 7095-25	10"	129	175		517	500	450	397	350	277	160		178	3732	145
NSP 7095-26	10"	129	175		536	518	465	412	365	287	165		178	3862	150

Pompa Tipi / Pump Type	Motor Tipi / Motor Type			Su Miktarı / Flow Rate											Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Motor Tipi / Motor Type			m3/h	0	20	40	60	70	80	90	100	110	130	Çıkış / Outlet	Çap / Diameter	Boy / Length	Ağırlık / Weight
	Type	kW	HP	lt/sn	0	6	11	17	19	22	25	28	31	36	Inc	mm	mm	Kg
NSP 7096-01	6"	5,5	7,5	Basma Yüksekliği / Total Dynamic Head	25	24	21	19	18	17	16	15	13	12	4'' - 5"	178	580	20
NSP 7096-02	6"	11	15		50	47	42	37	35	34	32	29	26	23		178	710	25
NSP 7096-03	6"	15	20		75	71	63	56	53	51	48	44	39	35		178	840	30
NSP 7096-04	6" - 7" - 8"	22	30		100	95	84	75	71	67	63	58	52	46		178	970	36
NSP 7096-05	6" - 7" - 8"	30	40		125	119	105	93	89	84	79	72	65	58		178	1100	41
NSP 7096-06	6" - 7" - 8"	37	50		150	142	126	112	106	101	95	87	78	69		178	1230	47
NSP 7096-07	6" - 7" - 8"	37	50		175	166	148	131	124	118	110	102	91	81		178	1360	52
NSP 7096-08	7" - 8"	45	60		200	190	169	150	142	135	126	116	104	92		178	1490	57
NSP 7096-09	7" - 8"	45	60		225	214	191	170	161	152	142	132	117	104		178	1620	62
NSP 7096-10	7" - 8"	55	75		250	237	213	190	179	169	157	145	130	115		178	1750	68
NSP 7096-11	7" - 8"	60	80		275	261	234	208	197	186	174	161	143	127		178	1880	73
NSP 7096-12	7" - 8"	67	90		300	285	255	227	215	203	189	175	158	138		178	2042	78
NSP 7096-13	8" - 10"	75	100		325	308	274	244	231	219	203	188	168	150		178	2172	84
NSP 7096-14	8" - 10"	75	100		350	330	295	262	249	236	221	204	180	161		178	2302	89
NSP 7096-15	8" - 10"	81	110		375	352	316	281	267	253	237	219	193	173		178	2432	94
NSP 7096-16	8" - 10"	92	125		400	377	338	301	284	269	252	233	206	184		178	2562	100
NSP 7096-17	8" - 10"	92	125		425	401	361	321	303	286	268	247	218	196		178	2692	105
NSP 7096-18-ZZ	8" - 10"	92	125		438	413	372	330	312	295	276	255	228	202		178	2822	105
NSP 7096-18	8" - 10"	110	150		450	425	383	339	321	303	283	262	234	207		178	2822	111
NSP 7096-19	8" - 10"	110	150		475	448	405	359	340	320	299	276	247	219		178	2952	116
NSP 7096-20	8" - 10"	110	150		500	472	428	378	358	337	315	291	260	230		178	3082	122
NSP 7096-21-Z	10"	129	175		525	497	450	399	376	354	330	306	274	242		178	3212	127
NSP 7096-22-Z	10"	129	175		550	522	472	417	393	370	345	321	287	253		178	3342	132
NSP 7096-23-ZZ	10"	129	175		575	547	492	435	410	386	361	335	300	265		178	3472	137
NSP 7096-24-ZZ	10"	166	200		600	572	514	454	426	402	377	350	313	276		178	3602	143
NSP 7096-25-ZZ	10"	166	200		624	597	534	470	443	418	392	365	326	288		178	3732	148
NSP 7096-26-ZZZ	10"	166	200		649	622	555	490	460	434	408	380	339	299		178	3862	153
